How to Design Line Speed Based on Production Capacity: A Complete Engineering Guide

Understanding Why Line Speed Design Matters More Than You Think

When we talk about designing an electrostatic powder coating line, most people jump straight to "how many parts per hour?" But from our experience at Ketu, that's only half the question. Line speed isn't just about throughput—it's the critical bridge between your production targets and the actual quality you'll achieve on the shop floor.

Here's what we've learned the hard way: You can have the fastest line in your region, but if the workpiece spends only 20 seconds in the spray booth when it actually needs 45 seconds for proper film thickness and coating uniformity, you've just built an expensive mistake. Conversely, a slower line that respects dwell time and cure requirements will deliver consistent results, lower defect rates, and ultimately better cost-per-unit economics.

Line speed design requires balancing production capacity with spray time, cure time, and workpiece complexity. Start by calculating target hourly output, then work backward to determine the minimum line speed needed. However, speed cannot exceed the time required for uniform coating and full curing—typically 2-5 meters per minute for cabinet and aluminum profile spraying. Consider these key factors: workpiece dwell time in the spray booth (usually 30-60 seconds depending on complexity), curing oven length and temperature profile, and the number of spray stations. Faster speeds increase output but reduce coating quality and adhesion if insufficient spray time remains; slower speeds improve finish but lower productivity and raise energy costs. For most metal component coating, balance is achieved by matching line speed to your booth configuration and cure time, then adjusting station count and spray gun placement rather than pushing speed limits.

The real skill in line speed design is knowing when to resist the pressure to "just go faster." We've worked with cabinet manufacturers, furniture makers, and aluminum profile shops across three continents, and the pattern is always the same: the clients who win long-term are those who understand that line speed is not an independent variable—it's a dependent outcome of everything else you get right first.

The Basic Formula: Calculating Line Speed From Your Production Target

Let me walk you through the calculation we use in the field. This is straightforward engineering, not theory.

Your starting point is simple: How many parts do you need to produce?

Let's say you're making metal cabinets and your target is 200 pieces per day, working one 8-hour shift with a 30-minute lunch break. That gives you 450 productive minutes, or 27,000 seconds per day.

Divide total seconds by target pieces: 27,000 ÷ 200 = 135 seconds per part.

That 135 seconds is your cycle time—the total time from when one piece enters the line until the next one enters. This is the absolute baseline.

Now, here's where most engineers make their first mistake. They think cycle time = line speed. It doesn't.

Your cycle time needs to account for:

Spray dwell time: The actual time the workpiece spends in the booth (typically 30–60 seconds for a metal cabinet)
Cure dwell time: Time in the oven (often 10–20 minutes at temperature, depending on powder type)
Cooling time: If you're force-cooling, add that; if natural cooling, account for buffer space
Transfer time: Movement through transitions between zones
Loading and unloading time (if manual): Can be 10–20 seconds per part

If your cycle time is 135 seconds total, and your spray dwell + cure dwell + cooling already takes 120 seconds, you've only got 15 seconds of margin for transfer and buffer. That's tight but workable.

Now, to get actual line speed (meters per minute), you need to know:

Workpiece length (the dimension that travels down the line)
Spacing between workpieces (the gap between one part and the next)

Example: Your cabinet is 1.5 meters long. You want 0.5 meters of spacing between parts (a standard pitch). That's 2.0 meters total per part.

If your cycle time is 135 seconds, and each part occupies 2.0 meters of line length, then:

Line speed = (2.0 meters ÷ 135 seconds) × 60 = 0.89 meters per minute

That's your required line speed to hit 200 pieces per day.

This is the reverse of how most people think about it. They ask, "What's a fast line?" We ask, "What's the right speed for your production target and your spray requirements?" The answer is often 2–5 meters per minute for manual or semi-automatic cabinet and profile coating—not 15 or 20 m/min, which is what people sometimes imagine.

Production Scenario	Daily Target	Shift Hours	Cycle Time	Workpiece + Spacing	Resulting Line Speed	Typical Booth Config
Cabinet factory (manual spray)	200 pieces	8 hours	135 seconds	2.0 meters	0.89 m/min	Single spray area, 1–2 operators
Aluminum profile (semi-auto)	300 pieces	8 hours	96 seconds	1.5 meters	0.94 m/min	Multiple spray positions
Outdoor furniture (complex shape)	100 pieces	8 hours	288 seconds	2.5 meters	0.52 m/min	Extended spray zone, recirculation
Sheet metal parts (high volume)	500 pieces	8 hours	57.6 seconds	1.0 meter	1.04 m/min	Conveyor-fed, 3+ spray stations

Key Factors That Influence Line Speed Design Beyond Production Volume

This is where the real complexity lives. Production volume is only the starting point.

Spray Time Requirements and Coating Thickness Needs

From our experience, this is the single most overlooked factor in line speed decisions.

Let's say you're coating aluminum profiles for outdoor use. The customer needs a 70–90 micrometer dry film thickness with excellent adhesion and weatherability. That's not a light powder job—that's industrial-grade work.

With a single spray pass at optimal distance and parameters, you might get 40–50 micrometers. To hit 70–90 micrometers, you need either:

Multiple spray passes (which means longer dwell time)
Slower line speed (more time under the gun)
Higher spray gun intensity (which risks other defects)

We typically recommend at least 40–50 seconds minimum spray dwell time for cabinet-type products, and up to 90–120 seconds for complex geometries or high-performance coatings.

If your production model forces the line speed to 10 m/min, and your spray booth is only 5 meters long, do the math:

Dwell time = 5 meters ÷ 10 m/min = 0.5 minutes = 30 seconds

30 seconds is probably not enough for uniform coverage on a recessed cabinet door or a multi-chambered aluminum frame. You'll see thin spots, especially in corners and recesses. The coating might pass initial inspection but fail salt spray or adhesion tests after a few months in the field.

We've advised clients to accept a slower line (2–3 m/min instead of 8 m/min) precisely because their product geometry and film thickness requirements demanded it. In those cases, the "lower productivity" was actually the only way to hit quality targets.

Curing Time and Oven Length Constraints

Here's another critical constraint that engineers often underestimate.

The curing oven isn't just a "heat chamber." It's a precision environment. The workpiece needs to:

Reach cure temperature (typically 180–220°C for most powder coatings)
Maintain that temperature for a specific duration (typically 5–20 minutes, depending on powder type)
Cool enough to handle safely without damage

If your line speed is too fast, the workpiece doesn't stay in the oven long enough. The result: undercure. The coating might feel hard at room temperature (because the outer layer has hardened), but the core resin hasn't fully cross-linked. Six months later, you see adhesion failure, poor chemical resistance, or coating breakdown.

Conversely, if line speed is too slow, the workpiece over-cures. Some powders start to degrade at excessive temperatures, leading to yellowing, brittleness, or loss of gloss.

From our experience, you need at least 10–12 minutes of actual oven time for most polyester and epoxy powders. If your oven is 5 meters long and your line speed is 1 m/min, the workpiece spends only 5 minutes in the oven. That's insufficient.

To fix this, you either:

Add a longer oven (capital investment)
Slow down the line (reduces throughput)
Use a multi-pass oven (more complex, higher cost)
Switch to a faster-curing powder (may not meet your performance specs)

We worked with an aluminum profile supplier in India who initially wanted a 3 m/min line to hit their daily targets. But their curing oven was only 4 meters long (limited floor space). At 3 m/min, dwell time was 80 seconds—way too short. We reconfigured: 1.5 m/min line speed, which gave 160 seconds oven time. Output dropped to 60% of the original target, but quality defects also dropped by 80%. The real productivity gain came from eliminated rework, not from raw speed.

Workpiece Size, Shape Complexity, and Spray Booth Positioning

A 0.5-meter flat sheet sprays very differently from a 2-meter tall cabinet with internal channels and recesses.

For flat parts, you can run faster because the spray gun coverage is straightforward—every area gets equal exposure. For complex geometries with interior cavities, recesses, and internal corners, you hit the Faraday cage effect: Electric field lines have difficulty penetrating deep recesses, so powder doesn't deposit uniformly in those areas.

Our solution isn't always "slow down." Sometimes it's:

Adjust gun angles to redirect spray into difficult zones
Lower the electrostatic voltage slightly (reduces the "penetration depth" problem)
Reposition the workpiece on the conveyor to expose difficult sides at the optimal angle
Add a secondary spray pass at a different angle (requires longer booth or a recirculation loop)

For cabinet doors with deep frame profiles, we've found that 2–3 m/min is the practical sweet spot, with angled spray heads positioned to catch recesses. At 5 m/min or faster, you inevitably get uneven coverage in channels and frame joints, even with optimized parameters.

For simple flat aluminum profiles, 3–4 m/min is often acceptable because geometry is straightforward.

For outdoor furniture with curved edges and internal hollow sections, 1–2 m/min is more realistic if you want consistent coating on all surfaces.

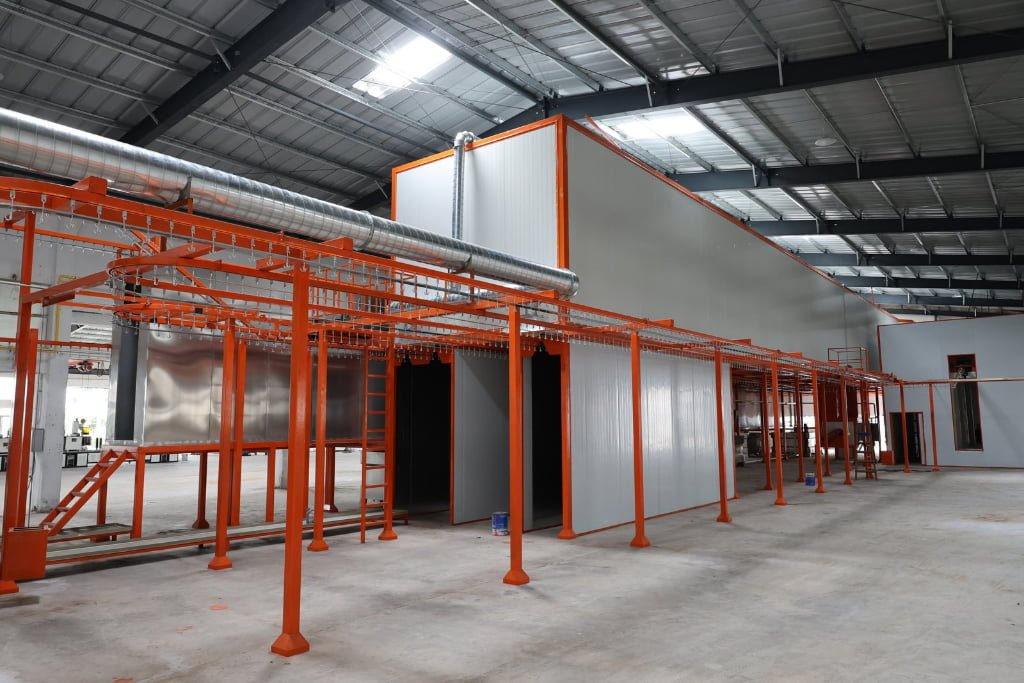

![powder coating line in factory]

Why Line Speed Affects Coating Quality and How to Find the Balance

This is where theory meets reality on the production floor.

The Relationship Between Line Speed, Film Thickness, and Coating Uniformity

Film thickness is a direct function of spray time and gun parameters. If you hold gun distance, voltage, and powder flow constant, and you double the line speed, you cut spray time in half—and your film thickness drops significantly.

Here's the physics:

In the spray booth, the static charge on the powder particles attracts them to the grounded workpiece. But this process isn't instantaneous. It takes time for:

Powder to reach the surface (flight time)
Electrostatic charge to accumulate on the surface
Powder layer to build up and stabilize

At slow speeds (1–2 m/min), a particle gets multiple chances to land on the surface—either directly or by "bouncing" and re-attaching. You build uniform, consistent film thickness.

At high speeds (8–10 m/min), particles have only one shot as the part flies past the gun. Many miss entirely or don't have time to settle. Film thickness becomes thin and uneven.

We've measured this on real lines:

1 m/min line speed, 60-second spray dwell: 80–100 μm average, ±10 μm variation
3 m/min line speed, 20-second spray dwell: 50–65 μm average, ±25 μm variation
5 m/min line speed, 12-second spray dwell: 30–45 μm average, ±35 μm variation

Notice: as speed increases, not only does average thickness drop, but variation increases. That's the real killer—inconsistent coating is harder to troubleshoot than uniformly thin coating.

How Excessive Speed Creates Common Defects

When you push line speed too far, defects multiply:

Poor adhesion: Thinner film and incomplete surface wetting mean the coating doesn't bond as strongly. In salt spray tests, you'll see creepage and undercutting.

Uneven coverage: Thinner areas, especially in recesses, don't meet specification. You might pass visual inspection but fail adhesion or salt-fog testing.

Increased powder bounce and waste: At high spray intensity (which you'll inevitably turn up to compensate for speed), more powder bounces off without adhering. You waste material and pollute the booth.

Color inconsistency: If you're running multiple spray guns to compensate for speed, each gun operates at slightly different parameters. You see banding or color variation across the line.

We worked with a cabinet manufacturer who tried to hit 400 pieces per day by pushing their 4-meter spray booth to 6 m/min. Dwell time dropped to 40 seconds. Within two weeks:

Salt spray tests showed adhesion failures
Customer complaints about coating durability increased
They had to rework 15% of production

We recommended dropping back to 2.5 m/min (dwell time 96 seconds), accepting 250 pieces per day instead of 400. Defect rate dropped to 1%. The "lost" 150 pieces per day were actually eliminated rework—so the true net production increase was about 200 pieces per day. Speed alone wasn't the answer.

Optimizing Line Speed to Maintain Quality While Meeting Capacity

The practical approach is this: Don't chase speed. Chase the line speed that matches your booth geometry, spray gun count, oven length, and powder system.

For most industrial powder coating:

Product Type	Typical Geometry	Optimal Line Speed	Why
Flat metal sheets	Simple, planar	3–5 m/min	Straightforward spray coverage
Cabinet frames	Recessed, internal angles	1.5–2.5 m/min	Complex geometry needs dwell time
Aluminum profiles	Varied sections, hollow	2–3 m/min	Uniform coverage on multiple surfaces
Furniture (outdoor)	Curves, joints, hollow sections	1–2 m/min	High complexity, aesthetic finish required
Sheet metal parts (high volume)	Small, simple	4–6 m/min	Compensate with multiple guns, not speed

If you need more capacity, add another spray gun or another spray position, not more speed. A line with three 2.5 m/min spray positions will outproduce a line with one 7 m/min position—and the quality will be better.

![metal cabinet powder coating process]

Designing Line Speed for Different Product Types

Let me be specific about how line speed strategy changes by product category.

Cabinet and Panel Products

Cabinets and panels are the bread and butter of industrial powder coating. They have flat surfaces but often include frame recesses, door channels, and internal baffles.

Our recommendation: 2–3 m/min for manual spray, 2.5–4 m/min for semi-automatic.

Why this range?

At 2 m/min, a 1.5-meter cabinet spends 45 seconds in the booth. That's enough time for an operator to hit all surfaces, including recesses, with good film buildup.
At 3 m/min, dwell time drops to 30 seconds—still acceptable for experienced operators with optimized spray angles.
Above 4 m/min, you start losing consistent coverage in frame channels and recesses.

For cabinets with flat external surfaces only, you can push to 4–5 m/min. For cabinets with complex internal geometry, stick to 1.5–2.5 m/min.

We worked with a Brazilian cabinet manufacturer producing electrical enclosures. They initially tried 5 m/min with a single spray position. Defect rate was 18%. We dropped to 2.5 m/min and added a second spray gun at a complementary angle (one hitting front and sides, one hitting back and recesses). Line speed stayed at 2.5 m/min, but effective spray coverage improved dramatically. Defect rate dropped to 3%. Daily output went from 240 to 280 pieces—a 17% gain with better quality.

Complex Geometries and Recessed Areas

Outdoor furniture, hollow structural parts, and assemblies with internal cavities are the most challenging.

Our recommendation: 1–2 m/min.

This is where the Faraday cage effect is most severe. Powder particles struggle to penetrate deep recesses or internal chambers. You need time (slow speed), proximity (closer spray guns), and angle optimization (multiple passes or repositioning).

For a piece with significant recesses:

First spray pass: 0.8 m/min, standard angle
Piece rotates or conveyor diverts to second spray area: 0.8 m/min, angled gun to catch recesses
Total line speed (averaged): 1.6 m/min

This recirculation adds physical complexity (a diverter valve, a secondary booth, or a rotating carousel), but it's the only way to guarantee uniform coverage on complex geometry without sacrificing speed so drastically that capacity becomes impractical.

Aluminum Profiles and Specialty Items

Aluminum profiles (window frames, structural sections, extrusions) present a unique challenge: they're often long (2–4 meters), hollow, and have multiple surface planes that need equal coating.

Our recommendation: 2–3 m/min for standard profiles, 1.5–2 m/min for complex multi-chamber sections.

Aluminum is lighter than steel, which means:

It heats and cools faster (shorter cure cycle is possible)
It's more prone to electrostatic charge concentration (easier to get uneven deposition if parameters aren't right)
Surface preparation is more critical (any oxide or contamination will show)

For high-volume aluminum profile coating, we often recommend:

Fast moving pretreatment line (to match throughput)
Slower spray section (2–2.5 m/min) with multiple spray positions (top, bottom, inside, outside angles)
Standard cure time (powder-dependent, usually 10–15 minutes)

An Indian aluminum profile company we worked with ran a 3-meter line at 4 m/min initially. Defect rate was acceptable (3–5%) but not great. We reconfigured to 2.2 m/min with four spray guns positioned to cover all four sides of the profile. Defect rate dropped to 1%, and output remained nearly the same because cycle time is set by the oven, not the spray booth. True output improvement came from 40% less rework.

Matching Line Speed With Your Full Production System

Here's what many people miss: line speed is not an independent variable. It's constrained by the slowest part of your system.

Aligning Spray Booth, Curing Oven, and Cooling Stages

Imagine you have:

Spray booth: 5 meters long, two spray guns
Curing oven: 4 meters long, heated to 200°C
Cooling section: 3 meters of natural air cooling

At a given line speed, the average workpiece spends a certain amount of time in each section. The constraint is: the section with the longest required time determines your line speed cap.

If your powder requires 15 minutes at 200°C to cure properly, and your oven is 4 meters long:

Maximum line speed = 4 meters ÷ (15 minutes × 60 seconds/minute) = 0.0044 m/sec = 0.27 m/min

That sounds impossibly slow, right? But that's the true physical constraint if you insist on a single-pass oven.

In reality, we don't design for single-pass ovens anymore on professional lines. We use:

Multi-zone ovens with preheat, cure, and hold zones at different temperatures
Faster-curing powders (some formulations can fully cure in 8–10 minutes)
Recirculation loops where the workpiece loops back through the oven twice

With a recirculation oven, your effective dwell time doubles without doubling oven length. You can achieve proper cure at reasonable line speeds (2–3 m/min) in a 5-6 meter oven.

Avoiding Bottlenecks: Why Fixed Conveyor Speed Alone Doesn't Guarantee Output

Here's a common mistake: A client specifies a 4 m/min conveyor and assumes that's their throughput. But if the spray booth only has one operator and one gun, and the oven is under-sized, the actual output is much lower.

Think of it as a pipeline:

Input: Loading station
Spray section: Constrained by booth geometry and gun count
Oven section: Constrained by heating power and oven length
Output: Cooling and unloading

If the oven can handle 1.5 m/min and the spray booth is set to 3 m/min, the oven becomes the bottleneck. Parts back up at the oven entrance. The spray booth runs faster than it can actually process, leading to "false capacity."

We designed a line for a Turkish furniture manufacturer that initially had this problem. Their new conveyor could run at 3 m/min, but the oven (inherited from their old line) could only handle 1.5 m/min effectively without over-curing. Solution: We kept the conveyor at 1.5 m/min, added a second spray gun at a different angle, and upgraded the oven heating system. Result: same line speed, but two guns instead of one, so effective spray capacity doubled. And the oven worked at its design point, not overloaded.

Alternative Approaches to Boosting Capacity Beyond Just Increasing Speed

If you need more production and can't just speed up the line, consider:

1. Parallel lines: Two 2 m/min lines sometimes beat one 4 m/min line in total output, especially if you can dedicate each to a different product family or color. Setup and changeover complexity is offset by more stable, consistent operations.

2. Multi-gun spray sections: Instead of one gun at 5 m/min, use three guns at 2 m/min. Coverage improves, defects drop, and you get more real output (less rework).

3. Dual-pass spray: Some clients use a spray-cure-spray strategy: first light coat, partial cure, second coat, full cure. Total line speed might be 2 m/min, but you achieve higher film thickness and better appearance than two full-speed passes.

4. Selective high-speed sections: Pre-treatment and cooling don't require as much precision. Run those at higher speed (4–6 m/min). Spray and cure sections run at 2–3 m/min. Overall output is higher because the "fast" sections keep up with the "slow" spray section.

5. Shift system: Running two 8-hour shifts instead of one doesn't increase line speed, but it doubles capacity. Often simpler and cheaper than redesigning the line.

Practical Design Checklist: From Capacity Goal to Final Line Speed Specification

Here's the step-by-step process we use in our own projects.

How to Gather Input Data and Validate Assumptions

Step 1: Define your production target precisely.

Not "about 200 pieces a day," but "200 pieces per day, one 8-hour shift, allowing 30 minutes for setup and cleaning, targeting 99% uptime."

This gives you: (8 hours - 0.5 hours) × 60 minutes = 450 productive minutes = 27,000 seconds per day.
Per-piece cycle time available = 27,000 ÷ 200 = 135 seconds.

Step 2: Specify workpiece dimensions and spacing.

Measure or estimate:

Length of the part (the dimension that travels down the line)
Width (for conveyor load planning)
Height (for clearance in booth and oven)
Weight (for conveyor motor sizing)
Spacing between parts (typical: 0.5–1.0 meters)

Example: 1.5m length + 0.5m spacing = 2.0 meter pitch.

Step 3: Define spray requirements.

Desired dry film thickness (typically 50–100 micrometers for industrial work)
Surface complexity (flat / recessed / hollow / complex)
Number of colors (affects changeover time)
Appearance requirement (matte / semi-gloss / glossy affects cure time)

Step 4: Specify oven constraints.

Oven length (meters)
Oven heating capability (time to reach target temperature)
Required cure time (from powder technical data sheet, typically 5–20 minutes at temperature)
Cooling capability (active or passive)

Step 5: Calculate minimum spray dwell time.

Based on complexity and film thickness requirement:

Flat parts: 30–40 seconds minimum
Standard panels/frames: 45–60 seconds
Complex/recessed parts: 60–120 seconds

Step 6: Calculate minimum total cycle time.

Spray dwell + oven dwell + cooling dwell + transfer buffer = minimum cycle time.

Example:

Spray: 45 seconds
Oven: 900 seconds (15 minutes at temperature)
Cooling: 120 seconds
Transfers/buffer: 30 seconds
Total: 1,095 seconds (18.25 minutes)

If you need 135 seconds cycle time but oven alone needs 900 seconds, there's a mismatch. You need either a multi-zone/recirculation oven or faster-curing powder.

Step 7: Back-calculate feasible line speed.

Line speed = (Part length + spacing) ÷ (Cycle time) × 60
= 2.0 meters ÷ 1,095 seconds × 60
= 0.11 m/min

Wait—that seems very slow. But that's total cycle time. In reality, cycle time is set by the oven (the slowest section), not the target. So:

Line speed through oven = Oven length ÷ Oven dwell time × 60
= 4 meters ÷ 900 seconds × 60
= 0.27 m/min

That's the speed the oven can handle. Your spray booth should be sized to match.

Step 8: Size the spray section accordingly.

If line speed is 0.27 m/min and you want 45 seconds spray dwell:
Spray booth length needed = 0.27 m/min ÷ 60 seconds/min × 45 seconds = 0.20 meters

That's too short. You'd need either:

A longer spray booth (multi-gun, multi-station)
A faster-curing powder (shorter dwell in oven)
A recirculation oven (doubles effective oven length)
Multiple shifts / parallel lines (accepted lower daily throughput per line)

This is the real engineering conversation with clients. Most people start with "I need 200 pieces a day," but the real constraint is usually the oven and cure time, not raw speed.

Common Mistakes to Avoid When Setting Line Speed

Mistake 1: Confusing conveyor motor speed with line speed.

Your conveyor motor might be rated for 10 m/min, but that doesn't mean your process line runs at 10 m/min. The oven, spray dwell requirements, and cure time determine actual line speed.

Mistake 2: Assuming you can "make up" for fast line speed with higher spray parameters.

Increasing voltage, gun distance adjustment, or powder flow can't fully compensate for reduced dwell time. You'll get thinner, less uniform coating and more defects.

Mistake 3: Not accounting for oven length and heating power.

A 3-meter oven can't deliver 15-minute cure time at 2 m/min line speed. Do the math before you buy.

Mistake 4: Ignoring workpiece geometry complexity.

Flat parts and complex geometries need very different line speeds. Don't use the same spec for both.

Mistake 5: Specifying line speed without knowing product requirements.

Some products need 100 micrometers minimum film thickness (demands slower speed). Others are fine at 60 micrometers (can tolerate faster speed). Get this clear before designing the line.

Testing and Adjustment Protocols Before Full Production Launch

Once the line is built, don't just crank it to full speed on day one.

Test Phase 1: Low-speed commissioning

Run the line at 50% of design speed
Check for mechanical issues, air leaks, electrical glitches
Verify that all zones reach target temperature and hold steady
Time actual cycle time at each section

Test Phase 2: Spray parameter optimization

At low speed, dial in spray gun parameters for the target workpiece
Measure film thickness at multiple points (center, edges, recesses)
Adjust electrode gaps, voltage, and powder flow until results are consistent
Document these parameters

Test Phase 3: Speed ramp-up

Increase line speed in 0.2–0.3 m/min increments
At each speed, run 10–20 parts and measure film thickness
Check for defects (thin spots, uneven coverage, orange peel, adhesion issues)
When defects appear, note the speed and back off 10%

Test Phase 4: Quality validation

Run 50–100 parts at final design speed
Measure film thickness (target: mean within spec, variation <10% of mean)
Measure adhesion (cross-hatch or pull-off test)
Run salt spray or weathering test if required
Document all results

Test Phase 5: Energy and material accounting

Measure actual energy consumption (kW) at design speed
Track powder usage and calculate waste/recovery rate
Compare to projections; adjust if necessary

We always tell clients: The first week of commissioning is not a loss; it's insurance. The time you spend testing at lower speeds, optimizing parameters, and validating results prevents months of defects and rework later.

An aluminum profile client in India initially wanted to "skip testing" to hit a customer delivery date. We refused. Four days of structured testing revealed that their oven temperature distribution was uneven—one side was 10°C hotter than the other. We fixed the heating element distribution. Without this testing, they would have started production with 15–20% defect rates.

![aluminum profile surface finishing]

Summary: Making the Right Line Speed Decision for Your Production

Line speed is not the starting point of equipment design—it's the outcome. You start with:

Production capacity target
Workpiece specifications and geometry
Required coating thickness and quality
Oven constraints and cure requirements
Available space and budget

From these, you calculate the line speed that actually works. It's almost never the "fastest possible" speed.

In our experience, most well-designed lines for industrial powder coating operate at 2–4 m/min for manual or semi-automatic spray applications, and 4–6 m/min for highly automated, high-volume flat-part operations. This range balances real productivity, coating quality, and operator feasibility.

If a vendor promises you 10 m/min for complex cabinet coating with 90-micrometer film thickness, ask hard questions about their oven length, cure time, and quality validation. Or politely thank them and contact us.

The real competitive advantage isn't raw speed. It's consistent quality at a sustainable production rate, combined with low defect rates and the ability to adapt to different products without re-engineering the entire line.

If you're planning a new electrostatic powder coating line or evaluating an upgrade, we recommend starting with a professional capacity and line-speed consultation. We can review your production targets, workpiece geometry, and oven configuration—and recommend the actual line speed that will deliver results, not just higher numbers.

Contact Ketu for a technical consultation on line speed and capacity planning:

WhatsApp: +8618064668879
Email: ketumachinery@gmail.com

We're here to help you design a line that works—not just a line that looks good on paper.

How to design line speed according to production capacity ?
