Safety Measures for Electrostatic Spraying Machines: A Complete Guide to Risk Prevention and Operational Safety

Static electricity might seem invisible, but in a powder coating facility, it's one of the most dangerous forces you're working with every day. A single spark, a moment of inattention, or a routine oversight can trigger a dust explosion that turns a productive spraying room into a disaster in seconds. Over my years managing electrostatic powder coating operations, I've seen firsthand how the simplest safety lapses—poor grounding, accumulated powder, or improper ventilation—create conditions for catastrophe. The difference between a safe operation and a dangerous one often comes down to whether people truly understand what's at stake and follow through with discipline.

Static electricity and powder dust create a perfect storm. Introduce an ignition source—heat, friction, or a spark—and you have all three elements of the fire triangle. The solution isn't complicated, but it demands consistency: reliable grounding, routine dust removal, controlled air quality, proper equipment maintenance, and trained personnel who know exactly what to do.

This guide walks you through every critical safety measure for electrostatic spraying machines. Whether you're running a single spray booth or a fully automated coating line, the principles are the same. We'll cover the hazards you need to prevent, the protective systems that work, the daily practices that keep people safe, and the standards you must follow. My goal is to help you build a safety culture where "this is how we do it here" means doing it right, every single time.

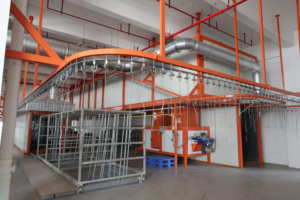

![electrostatic powder coating safety equipment in factory]

Main Safety Hazards in Electrostatic Spraying Operations

Before we talk about control measures, you need to understand exactly what you're protecting against. Static electricity, powder dust, heat, and mechanical movement all create overlapping risks in a spray facility. Miss one, and the others become exponentially more dangerous.

Powder Dust Explosion Risks

Powder dust explosions are the hazard that keeps facility managers awake at night—and for good reason. Fine powder particles suspended in air, when concentrated enough and mixed with oxygen, become an explosive mixture. All it takes is an ignition source (a static discharge, friction, heat) and confinement (the powder room itself), and you have an explosion.

From my experience on job sites, the problem doesn't start with the powder being dangerous—it starts with complacency. Operators see powder accumulation on surfaces and think "I'll clean it later." Months pass. Layers build. A shift in air pressure or movement kicks up that dust. A stray spark finds its way in. That's when accumulated neglect becomes a catastrophe.

Powder dust explosions are categorized by their explosive dust concentration (typically 30–300 grams per cubic meter). Most commercial spray booths are designed to operate below this threshold, but if your exhaust system isn't working, your dust collection is failing, or your filters are clogged, concentrations can spike dangerously within minutes.

Static Electricity Discharge and Fire Hazards

Static electricity in electrostatic spraying is necessary—it's what makes the system work. But the same electricity that deposits powder on your workpiece can also jump across gaps, discharge through a grounded object, or arc between conductors. Those discharges reach thousands of volts and can ignite both powder dust and the volatile compounds in some powder formulations.

I've watched operators become careless with grounding cables. A cable develops a small crack, or the connection point gets corroded with powder residue, and suddenly continuity is lost. The operator doesn't notice. The workpiece or spray gun isn't properly grounded. Powder accumulates without being effectively absorbed. Then, a spark. What should have been harmless becomes dangerous.

The grounding system is your primary defense. If it fails—even partially—you lose your margin of safety. This isn't something you check once and forget. It's something you verify before every shift.

Thermal Burns and Mechanical Injuries

The spray booth is an industrial workplace with multiple hazards beyond electricity and dust. The curing oven operates at 170–200°C or higher. Conveyor systems move continuously. Spray guns operate at high pressure. Hot surfaces, moving parts, and high-energy air flows can all cause serious burns or crush injuries if proper safeguards aren't in place.

Operators working near hot zones need appropriate protective equipment—heat-resistant gloves, sleeves, and face protection if they're standing near oven exits. Machine guards must be in place on any conveyor or mechanical system. Emergency stop buttons need to be within arm's reach and clearly marked.

Electrical and Equipment Failures

Your spray system depends on electrical components—motors, fans, heating elements, control systems, and safety interlocks. Failures here can cascade. A failed exhaust fan means dust isn't being removed. A failed temperature sensor means the oven might overheat. A failed emergency stop means operators can't shut down the system when something goes wrong.

Electrical failures also create their own fire hazard. Faulty wiring, overloaded circuits, or water intrusion into electrical boxes can cause arcing or overheating. In an environment where powder dust is present, that heat or spark is a direct path to ignition.

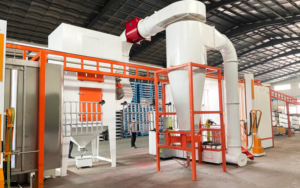

![powder recovery system with proper grounding and safety features]

Essential Personal Protective Equipment (PPE) Requirements

Your equipment and systems provide the first layer of protection. But the final barrier between a worker and hazard is the protective equipment they wear. PPE isn't optional—it's a critical part of your safety strategy.

Anti-Static Clothing and Footwear Standards

Every operator in the spray booth must wear anti-static clothing. This means conductive or dissipative fabric that prevents charge buildup on the body. Regular cotton or synthetic clothing creates static charge through friction. A worker in regular clothes can walk across a non-conductive floor and accumulate hundreds of thousands of volts. That charge will discharge when they touch a grounded object or approach the spray gun, potentially creating a spark.

Anti-static footwear is equally critical. The shoe must have conductive soles that maintain a path to ground through the wearer's body. However—and this is crucial—the shoe only works if the floor itself is conductive or appropriately designed. A worker in perfect anti-static shoes standing on a highly insulating floor can still build up charge.

From my observation at job sites, people often underestimate this requirement. They assume that as long as they're in the spray booth, they're grounded. They're not. The booth's grounding system grounds the booth, the equipment, and the workpiece—not the person. The person must wear proper PPE to complete the circuit safely.

Anti-static clothing should be regularly tested for conductivity. Fibers degrade over time, washing affects conductivity, and damage (holes, tears) compromises the garment's function. A clothing item that passed the test a year ago might not pass today.

Respiratory and Eye Protection

Powder dust is a respiratory hazard. Operators need respiratory protection rated for the type and size of particles they're exposed to. This typically means supplied air systems or high-efficiency particulate air (HEPA) respirators, depending on the environment and dust concentration.

Eye protection is equally non-negotiable. Powder particles can irritate or damage eyes. Chemical reactions in the booth environment can produce fumes that affect vision. Operators need chemical splash goggles or a full face shield that provides coverage without compromising visibility or ventilation.

Hand Protection and Accessories

Gloves serve multiple purposes: they protect skin from powder contact, they reduce the risk of static discharge through the hands, and they protect against minor cuts and abrasions. Anti-static gloves are available, but the grounding path through gloves is complex—most safety protocols rely on anti-static clothing for the primary static control and use gloves primarily for chemical and thermal protection.

Head protection (hard hats in facilities with overhead hazards) and hearing protection (in areas where fans or compressors create noise above 85 dB) are also necessary depending on your specific operation.

Critical Equipment Safety Features and Configuration

Your equipment is designed with multiple safety systems. Understanding what they do—and what happens when they fail—is essential for safe operation.

Grounding Systems and Electrical Safety Devices

The grounding system is the backbone of electrostatic spray safety. Every conductive object in the spray area—the workpiece, the spray gun, the conveyor, support structures, floors—must be connected to a common electrical ground. This ensures that when high voltage is applied, all objects are at the same potential, and no dangerous voltage differences exist.

A typical grounding system includes:

• A main earth ground (connection to facility ground)
• Conductive pathways (wires or conductive floors)
• Grounding cables connecting equipment
• Ground monitoring systems that verify continuity

Grounding resistance should be measured regularly. Industry standards typically require resistance of less than 1 megohm between any conductive object and ground. If resistance is higher, charge can accumulate dangerously.

Electrical safety devices include circuit breakers (to prevent overcurrent), ground fault circuit interrupters (GFCIs, which detect current leakage), and residual current devices. These protect against electrical shock and fire caused by faults in the electrical system.

Explosion-Proof Ratings and Emergency Stop Mechanisms

In hazardous (classified) locations where explosive dust or vapor atmospheres exist, electrical equipment must be rated as explosion-proof. This designation (often marked as "Class II, Group G" or similar depending on your region and powder type) means the equipment either prevents ignition sources or is designed to contain and isolate a potential explosion so that surrounding areas remain safe.

Not all spray booths operate in classified locations. It depends on whether the facility is designed to prevent explosive dust concentrations from forming. But many do require explosion-proof equipment, and compliance is non-negotiable.

Emergency stop mechanisms are your last line of defense when something goes wrong. Every spray booth, conveyor system, and associated equipment should have readily accessible emergency stop buttons. When pressed, they must immediately de-energize the spray system, stop the conveyor, and activate safety functions. These buttons should be large, colored red or red and yellow, and positioned within arm's reach of operators.

Temperature Monitoring and Moisture Control in Compressed Air

The curing oven temperature is critical for quality—but it's also a safety concern. Overheating can cause fires. Most ovens have temperature sensors that prevent operation above a safe setpoint. Redundant sensors are best practice, so that if one fails, the other still provides protection.

Compressed air quality is often overlooked, but it's fundamental to safe operation. Moisture and oil in compressed air cause multiple problems: they carry contaminants into the spray system, they can cause condensation and corrosion inside equipment, and in worst cases, they can react with powder or ignite under high pressure.

Compressed air systems should include:

• A dryer to remove moisture
• Multiple filters to remove particles and oil mist
• Regular condensate drainage (daily or per manufacturer specs)
• Air quality monitoring (checking for remaining moisture and oil)

From my field experience, facilities often neglect this. A technician tells them "your air system needs drying," and they think it's a nice-to-have upgrade. It's not. Wet, oily air is a direct path to operational failure and safety incidents.

Safety Component	Function	Inspection Frequency
Grounding cables	Conduct static charge to ground	Weekly
Circuit breakers	Prevent electrical overcurrent	Monthly (functional test)
Temperature sensors	Monitor oven temperature	Before each shift
Emergency stop buttons	Immediate system shutdown	Monthly (operational test)
Air filters and dryer	Remove moisture and contaminants	Weekly (visual), monthly (functional)
Dust collection filters	Capture powder and prevent external release	Per manufacturer specs, typically weekly
Interlocks	Prevent operation with missing guards	Monthly (functional test)

Daily Safety Inspection and Maintenance Checklist

Safety isn't a one-time setup. It's a daily practice. Every shift should begin with a systematic inspection that verifies your key systems are working.

Grounding Resistance Testing and Inspection Points

Before spraying begins, test the grounding system. Use a grounding resistance tester (ohmmeter) to verify continuity and resistance between key points:

• From the spray gun to ground
• From the conveyor to ground
• From the workpiece holder to ground
• From fixed spray booth components to ground

Resistance should be below the threshold specified for your equipment (typically 1 megohm or less). If resistance is high, investigate immediately. Common causes include:

• Corroded or loose connection points (clean and re-tighten)
• Broken or damaged cables (replace)
• Accumulation of insulating powder on grounding points (clean)
• Damaged cable insulation exposing conductive paths to unintended surfaces (repair or replace)

Visual inspection of all grounding cables should happen daily. Look for:

• Cuts or abrasions in insulation
• Corrosion or discoloration of connections
• Loose or partially disconnected terminals
• Accumulation of powder around connections

Dust Accumulation Management and Filter Maintenance

Powder accumulation is perhaps the single most preventable cause of dust explosions. Every spray booth generates dust that escapes the direct spray. This dust settles on surfaces, accumulates in corners, and builds up in ductwork and collection systems.

Daily dust management means:

• Visual inspection of all interior surfaces of the spray booth
• Removal of any visible powder accumulation using HEPA vacuum (not compressed air, which can suspend dust dangerously)
• Inspection of collection bags, cyclone separators, or cartridge filters for blockage or overfilling
• Cleaning of ductwork at joints and elbows where powder tends to collect

Filter maintenance is critical. Powder coating filters clog over time as fine particles accumulate. A clogged filter forces the system to work harder, reducing capture efficiency and allowing more powder to escape. Replace or clean filters according to manufacturer specifications—not according to your own judgment about when they "look full."

Most modern systems include a pressure differential indicator on filter housings. When pressure drop exceeds a setpoint (typically 4–6 inches of water column), cleaning or replacement is due. Don't ignore these indicators. They're telling you the filter is nearing saturation.

Equipment Integrity Checks and Documentation

Beyond grounding and dust, verify that all safety systems are intact:

• Check that emergency stop buttons are accessible and functional (push test without spraying)
• Verify that all machine guards and safety interlocks are in place
• Confirm that oven temperature readings are stable and within the expected range
• Check that ventilation fans are running and making normal noise
• Verify that compressed air dryer is functioning (check for water in drain bowl)

Document these inspections in a log. This serves two purposes: it creates accountability (people are more careful when they know they'll document their actions), and it provides evidence of due diligence if an incident occurs.

If an inspection reveals a problem—say, a grounding resistance that's too high—don't work around it. Stop, diagnose the issue, and fix it. Production delays caused by proper safety procedures are always preferable to shortcuts that create risk.

Operational Best Practices for Safe Spraying

Equipment and systems provide the framework for safety, but people make the difference. How operators work—their habits, their attention to detail, their understanding of why procedures exist—determines whether safety works in practice or only on paper.

Pre-Shift Safety Procedures and Equipment Verification

Before any spraying begins, take five minutes to walk through a pre-operation checklist. This isn't busywork. It's your moment to catch problems before they affect production or safety.

Step 1: Visual Sweep
Walk through the spray area and look for anything that seems out of place. Is there powder accumulation that shouldn't be there? Are any cables or hoses damaged or in the wrong position? Is equipment running that shouldn't be, or not running that should be?

Step 2: Grounding Check
Verify that the spray gun is properly connected to its grounding cable, and that the workpiece is seated in its holder (or that the conveyor grounding point is clean and making good contact). This takes 10 seconds and is the most critical safety verification you can make.

Step 3: System Activation Test
Turn on the spray booth ventilation and listen. The fan should be running and audible. Check the compressed air system—the regulator should read proper pressure. Turn on the oven and verify temperature readout. These tests confirm that critical systems are powered and responding.

Step 4: Visual Guard Check
Confirm that all safety guards are in place, interlocks are functional, and emergency stop buttons are accessible.

Step 5: Powder Verification
Check that the powder being loaded into the spray system is the correct type and is free from contamination or moisture. Wet powder won't spray properly and introduces moisture into the system. Contaminated powder (mixed batches, or powder that's absorbed moisture from humid air) behaves unpredictably and can create surface defects and performance issues.

If any step reveals a problem, address it before spraying. Contact your supervisor or maintenance team. Don't spray with a system you're unsure about.

Safe Handling of Spray Guns and Fixtures During Operation

The spray gun is the point of contact between the operator and the electrostatic system. Proper handling prevents static discharge, prevents unintended spraying, and ensures even application.

Grounding Path
Always hold the spray gun by the handle in the designated grip area. Some grips are insulated; some are conductive. Know which your gun is, and hold it appropriately. A conductive grip maintains the grounding path through your hand and arm. An insulated grip prevents you from becoming part of the circuit—but ensure the gun itself is properly grounded via its cable.

Spray Gun Distance and Angle
Maintain consistent distance and angle relative to the workpiece. Distance (typically 150–300 mm, depending on the gun model and powder type) affects the voltage gradient and coating thickness. Too close and you risk back-ionization or bridging (where powder arcs back toward the gun instead of depositing on the workpiece). Too far and efficiency drops.

Continuous Motion
Don't hold the gun stationary on one spot. Move it smoothly across the surface, maintaining even coverage. Stationary spraying causes overpowering (excessive powder buildup) and can create local areas of high charge concentration.

No Trigger Pulling Off-Target
This should be obvious, but it's violated frequently. Don't test the spray pattern into empty air. Don't point the gun at another operator to see if it's working. Don't spray "just to clean the nozzle." Every trigger pull is intentional and targeted at a properly grounded workpiece.

Fixtures and Contacts
If the workpiece is held by a fixture or contact point, ensure that point maintains good electrical contact throughout the spray cycle. Fixtures degrade—contact surfaces corrode, springs weaken, moving parts accumulate powder. Inspect fixtures regularly and replace contacts that show wear or corrosion.

Powder Material Selection and Safety Properties

Not all powders are created equal. Different formulations have different electrical properties, different explosive characteristics, and different performance envelopes.

From my experience with clients, the most common mistake is assuming that if a powder works for one application, it will work for another, or that any powder of the same color is interchangeable. It's not. A powder formulated for outdoor furniture has different properties than a powder for electrical cabinets. Mixing batches or using powder from different suppliers can create unpredictable results.

Understand the key properties of the powder you're using:

• Conductivity: Highly conductive powders are easier to apply but can create strong back-ionization. Less conductive powders require higher voltage and are more sensitive to humidity. Your voltage settings, distance, and air settings all depend on powder conductivity.
• Explosive Limits: Every powder has a lower explosive limit (LEL) and upper explosive limit (UEL)—concentrations of dust in air between which explosion is possible. Powder from different manufacturers might have different limits.
• Moisture Sensitivity: Hygroscopic powders (those that absorb moisture from air) become difficult to spray if stored in humid conditions. If your facility is humid, dry powder before use.
• Melting and Flow: Different powders melt at different temperatures and have different flow characteristics. Overshooting the recommended cure temperature can cause crawling (coating pulls back from edges) or sagging. Undershooting leaves a stiff, poorly fused coating.

Always use powder that's been properly stored (in a cool, dry location) and verify its identity before loading into the spray system. Contamination or mixed batches are sources of operational failure and potential safety issues.

Proper Ventilation and Dust Extraction Management

Ventilation is your primary defense against dust explosion risk. The spray booth's exhaust system creates negative pressure, pulling powder-laden air away from the operator and preventing dust accumulation.

Airflow Verification
The ventilation system should move air from the spray area toward collection equipment. Visual verification: Light a match or smoke stick near the booth entrance. Smoke should be pulled toward the booth, not pushed away. If you see smoke being pushed outward, the system isn't working correctly. Stop spraying and investigate.

Fan and Filter Condition
The exhaust fan should be clean and unobstructed. Lint, powder, or debris on fan blades reduces efficiency. Filters should be clean—a blocked filter forces the system to work harder and reduces capture efficiency. Monitor filter differential pressure and change filters when they reach the recommended setpoint.

Booth Cleaning Schedule
In addition to daily dust removal, schedule a deeper cleaning weekly or monthly (depending on volume). This means accessing ducts, collection areas, and corners of the booth that aren't cleaned during daily operations. Accumulated powder in ducts and ductwork is a genuine explosion risk if it's dense enough and exposed to an ignition source.

Secondary Containment
Even with good primary ventilation, some powder escapes. Secondary collection systems (cyclones, cartridge collectors, baghouses) must also be maintained. Cyclones should be emptied regularly before they reach capacity. Cartridge filter systems should have bags that are sealed and disposed of properly to prevent dust release during handling.

From my site observations, the facilities with the best safety records aren't the ones with the most sophisticated equipment—they're the ones with disciplined, consistent maintenance. A simpler system that's maintained properly outperforms a complex system that's allowed to drift.
