Static Shielding Solution for Aluminum Profiles
Aluminum Profile Powder Coating Line
Uniform Film Thickness on Long Profiles
Ketao designs specialized powder coating lines for aluminum profiles, window frames and architectural extrusions.
Our solutions overcome the static shielding (Faraday cage) effect to achieve uniform coating coverage and consistent film thickness on long, hollow profiles.
-
Overcome static shielding on hollow profiles -
Uniform film thickness (±10 μm across profile) -
Long-length conveyor & hanging system -
High color consistency for export quality
Film Uniformity
Across entire profile
Export Quality Standard
✓ Achieved
Why Are Aluminum Profiles More Challenging to Coat Than Other Parts?
Aluminum profiles—especially hollow extrusions used for windows, doors and curtain walls—present unique coating challenges
that standard powder coating lines cannot solve effectively.
Three main challenges:
-
1
Static Shielding (Faraday Cage Effect)
Hollow aluminum profiles conduct electricity. When you apply high-voltage powder coating,
the profile becomes an electrostatic shield. Inside corners, recesses and inner surfaces receive little to no powder,
causing uneven coverage and thin spots. -
2
Long Length & Weight
Profiles can be 6-12 meters long and weigh 50+ kg each. Standard conveyors
and hanging systems are not designed for this. Poor support causes bending, vibration and uneven spacing during coating. -
3
High Surface Quality Requirements
Architectural aluminum profiles often go to export markets or high-end building projects.
Customers demand tight tolerances on film thickness (±10 μm), gloss level and color consistency across batches.
⚡ The Static Shielding Problem
This is the #1 technical challenge for aluminum profile coating. Without proper process design, you will see thin coating on inner corners,
poor coverage in recesses, and rejection rates of 20-40%. Ketao's aluminum profile lines are specifically engineered to overcome this.
Left: Poor coverage from static shielding | Right: Uniform coating with Ketao's solution
Ketao's Technical Solution
How We Overcome Static Shielding on Aluminum Profiles
Ketao uses a combination of process design, gun positioning and material handling strategies to solve the Faraday cage effect.
Profile Rotation During Coating
For complex hollow profiles, we can integrate a rotation device that slowly rotates the profile as it passes through the booth.
This exposes all surfaces—including inner corners—to the powder cloud.
- • Controlled rotation speed (1-5 rpm)
- • Synchronized with line speed
- • Suitable for window & door profiles
Multi-Angle Gun Positioning
Instead of spraying from one direction only, we position guns at multiple angles (top, sides, bottom) to reach recessed areas.
Gun reciprocators move vertically to follow the profile geometry.
- • 3-6 guns per coating zone
- • Adjustable angles for different profiles
- • Automatic or manual gun control
Optimized kV & Powder Output
Lower kV settings (40-60 kV instead of 80-100 kV) reduce the electrostatic shielding effect. Combined with higher powder output
and proper air balance, this ensures good powder penetration into recesses.
- • Process parameters tuned per profile type
- • Recipe storage for repeat production
- • Operator training on parameter adjustment
Proper Profile Spacing
Profiles must be spaced correctly on the conveyor to avoid shadowing each other. We design the hanging system and line speed
to ensure each profile receives uniform powder coverage.
- • Minimum 300-500mm spacing between profiles
- • Custom hanging fixtures per profile cross-section
- • Anti-sway devices for long profiles
Test Coating & Process Verification
Before full production, we run test profiles through the system, measure film thickness at critical points (inside corners, recesses)
and adjust process parameters until uniformity targets are met.
- • Film thickness measurement at 10+ points
- • Cross-section analysis for inner coverage
- • Process documentation and SOPs
Specialized Pretreatment
Good pretreatment is critical for aluminum profiles. We design spray pretreatment systems with proper coverage inside hollow sections,
ensuring clean, chemically treated surfaces for maximum adhesion.
- • Chromate or chromate-free conversion coating
- • Multi-zone spray coverage
- • DI water final rinse for no water marks
💡 Every Aluminum Profile Factory Is Different
The best solution depends on your profile cross-sections, production volume and quality requirements.
Ketao engineers will study your specific profiles and design the optimal coating process for your factory.
Real Customer Success
How an Indian Aluminum Profile Manufacturer Achieved Export-Quality Coating
A real project example showing how Ketao's aluminum profile line solved static shielding and quality challenges.
Architectural Aluminum Profile Manufacturer
India • Export market focus • Window & curtain wall profiles
Challenges before Ketao's line:
-
Thin coating on inner corners and recesses due to static shielding -
Film thickness variation: 40-90 μm across the same profile (target: 60-70 μm ±10 μm) -
Rejection rate from export customers: ~25% -
Manual coating line could not handle 6-meter profiles efficiently -
Needed stable quality to grow export business
Ketao's Solution:
We designed a complete automatic aluminum profile powder coating line with:
-
Overhead conveyor system designed for 6-meter profiles with proper support every 1.5 meters -
5-gun coating booth with multi-angle positioning to reach all profile surfaces -
Optimized gun parameters (50-60 kV, higher powder output) to reduce static shielding effect -
Spray pretreatment tunnel with chromate-free conversion coating and DI water rinse -
Process tuning and operator training during commissioning to achieve target film thickness
Results after 12 months:
-
Film thickness uniformity improved to 60-70 μm ±8 μm (meets export standard) -
Rejection rate dropped from 25% to less than 3% -
Production capacity increased +40% compared to manual line -
Customer successfully expanded to two new export markets with consistent quality -
Lower rework cost and faster delivery times
Key Metrics Improvement
Film Thickness Uniformity
40-90 μm (±25 μm)
60-70 μm (±8 μm)
Rejection Rate
Before
25%
After
<3%
Production Capacity
+40%
💬 Customer Feedback
"Ketao's solution solved our long-standing static shielding problem. Now we can confidently supply profiles to European and Middle East markets with consistent quality."
Key Features of Ketao Aluminum Profile Coating Lines
Specialized design for long profiles, heavy loads and export-quality surface finish.

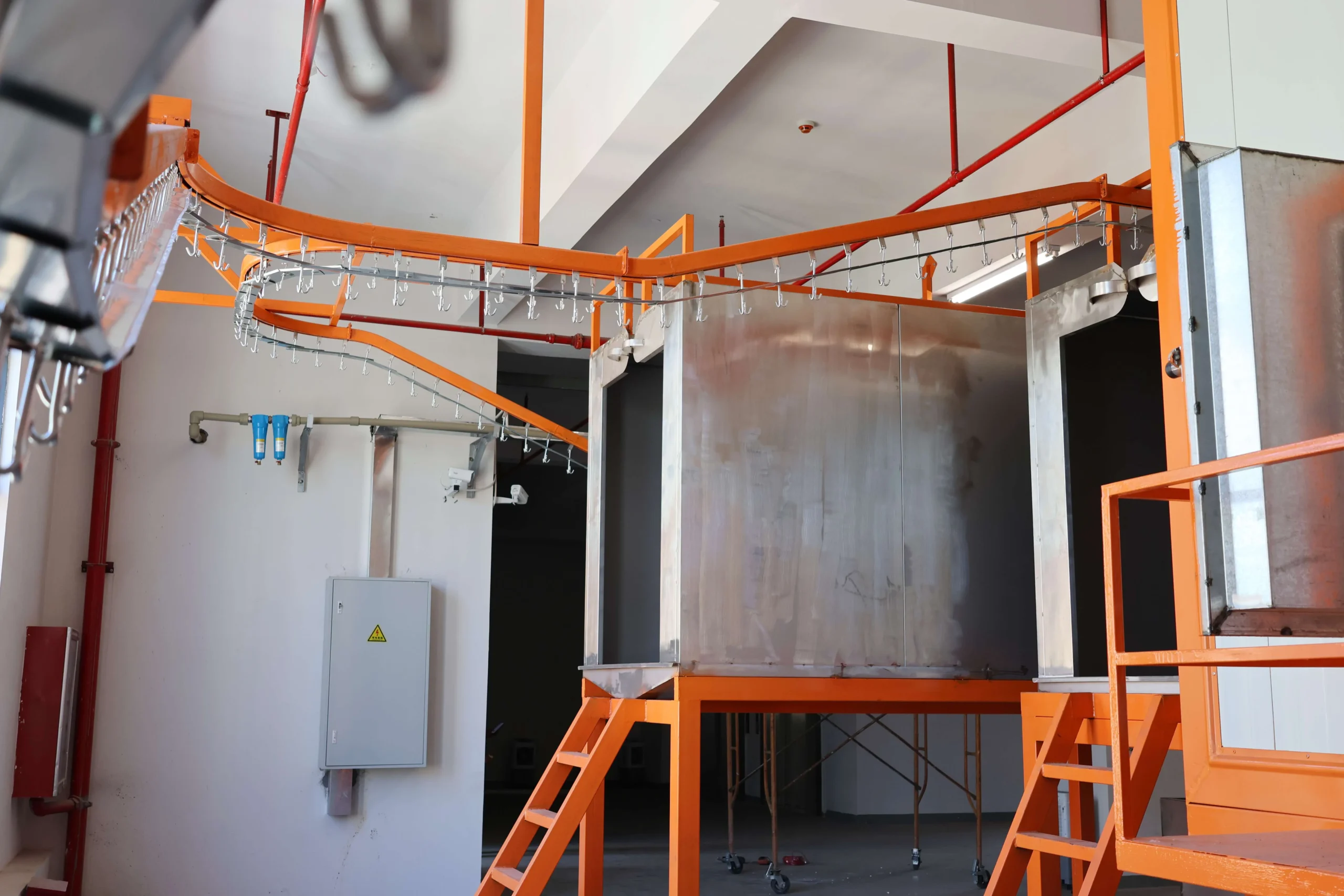

Long-Length Conveyor System
Overhead or floor conveyor designed to handle 6-12 meter profiles with proper support, anti-sway devices and smooth transport through all process zones.
Multi-Gun Coating Booth
3-6 automatic or manual guns positioned at multiple angles to ensure uniform coverage on all profile surfaces, including inner corners and recesses.
Rotation Device (Optional)
For complex hollow profiles, we can integrate a rotation device that rotates the profile during coating to expose all surfaces to the powder cloud.
Aluminum Pretreatment System
Spray tunnel or immersion tanks with chromate or chromate-free conversion coating, ensuring excellent adhesion and corrosion resistance on aluminum.
Process Recipe Management
PLC control system stores coating recipes for different profile types, ensuring repeatable quality and making operator training easier.
Temperature-Controlled Curing
Gas, diesel or electric curing oven with precise temperature control (±5°C) and proper airflow to prevent surface defects on thin aluminum profiles.
Typical Applications for Aluminum Profile Powder Coating
Industries and products that benefit most from Ketao's aluminum profile coating lines.
Architectural Curtain Walls & Facades
High-end building exteriors
Long aluminum extrusions used for curtain walls, building facades and exterior cladding. Requires high color consistency,
UV resistance and corrosion protection.
- • Profile lengths: 6-12 meters
- • Film thickness: 60-80 μm
- • Typical colors: RAL 9006, 9007, custom architectural colors
Window & Door Frames
Residential & commercial construction
Hollow aluminum profiles for windows, sliding doors and entrance systems. Demands excellent coverage on inner corners
and consistent gloss level.
- • Profile lengths: 3-6 meters
- • Film thickness: 50-70 μm
- • Typical finishes: RAL 7016, 9016, woodgrain texture
Industrial & Safety Profiles
Railings, barriers, structural frames
Aluminum railings, safety barriers and structural profiles for industrial facilities and infrastructure projects.
Needs durability and corrosion resistance.
- • Profile lengths: 4-8 meters
- • Film thickness: 60-100 μm (extra protection)
- • Typical colors: RAL 9005, 1023, 3000 (safety yellow/red)
Custom Extrusion Parts
OEM & specialized applications
Custom aluminum extrusions for machinery, equipment frames, heat sinks and other industrial applications requiring
precise coating and close tolerances.
- • Profile lengths: varies by application
- • Film thickness: per customer specification
- • Typical requirements: tight tolerances, specific electrical properties
Aluminum Profile Coating Line FAQ
Common questions about coating aluminum profiles and our line solutions.
1. What is the Faraday cage effect and why does it happen on aluminum profiles?
+
that creates an electrostatic "shield" around itself. This shield repels charged powder particles from inside corners,
recesses and hollow areas, causing poor coverage. We solve this through gun positioning, rotation, and optimized voltage settings.
2. Can your line handle different profile cross-sections and lengths?
+
Most aluminum profile lines can handle 3-12 meter lengths and cross-sections from 50mm to 300mm.
We can also accommodate mixed production if you run different profile types.
3. What film thickness uniformity can I expect on hollow profiles?
+
including inside corners and recesses. This meets most export market requirements. We measure and verify during commissioning
and adjust the process until targets are met.
4. Is chromate pretreatment still required for aluminum profiles?
+
alternatives (zirconium or titanium-based) due to environmental regulations. Both options work well.
We design the pretreatment system based on your quality requirements and local regulations.
5. How do I choose between overhead and floor conveyor for aluminum profiles?
+
Floor conveyor is an option if building height is limited or if you have very heavy profiles.
We evaluate your workshop layout and recommend the best option during the design stage.
Ready to Solve Static Shielding on Your Aluminum Profiles?
Share your profile specifications and quality requirements. We'll design a coating line that delivers uniform film thickness and export-quality finish.
Free process consultation
Email: ketucoatingline@gmail.com
Complete Aluminum Coating System
Related Equipment for Aluminum Profile Lines
Build a complete aluminum profile coating system with Ketao's integrated equipment.

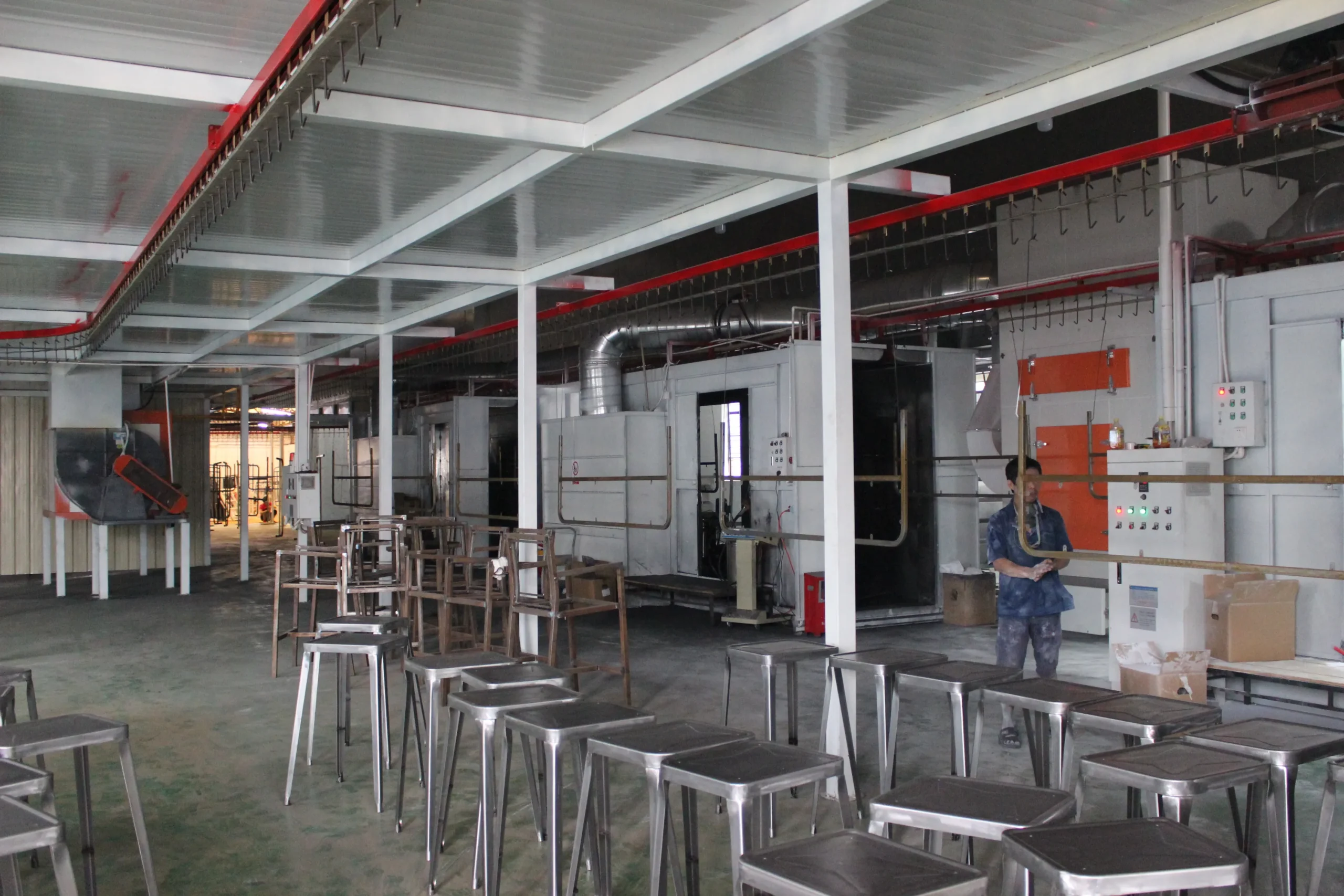

Aluminum Pretreatment
Conversion Coating System
Spray tunnel or immersion system for degreasing, etching and conversion coating on aluminum profiles.
-
Chromate or chromate-free options -
DI water rinse for no water marks -
Optimized for long profile coverage
Overhead Conveyor
Long-Profile Transport System
Heavy-duty overhead conveyor with long-span support for 6-12 meter aluminum profiles.
-
Power & free or closed-track design -
Anti-sway supports every 1.5-2m -
Customized hanging fixtures
Long-Profile Curing Oven
Temperature-Controlled Curing
Curing oven designed for long aluminum profiles with uniform temperature distribution and gentle heating curve.
-
180-220°C temperature range -
±5°C uniformity across chamber -
Gas / diesel / electric heating
💡 Need a Complete Aluminum Profile Coating Line?
Ketao designs integrated systems with pretreatment, coating, curing and conveyor all working together for consistent aluminum profile quality.
