Essential Pre-Coating Equipment
Industrial Drying Oven
Remove Moisture Before Coating
A critical step between pretreatment and powder coating. Ketao drying ovens remove surface water and moisture to prevent coating defects like pinholes, bubbles and poor adhesion.
-
Prevent coating defects (pinholes, bubbles) -
Fast moisture removal (80-120°C) -
Gas, diesel or electric heating options -
Integrated with pretreatment line
Operating Range
Fast moisture removal
Defect Prevention Rate
95%+
What Is a Drying Oven and Why Do You Need It?

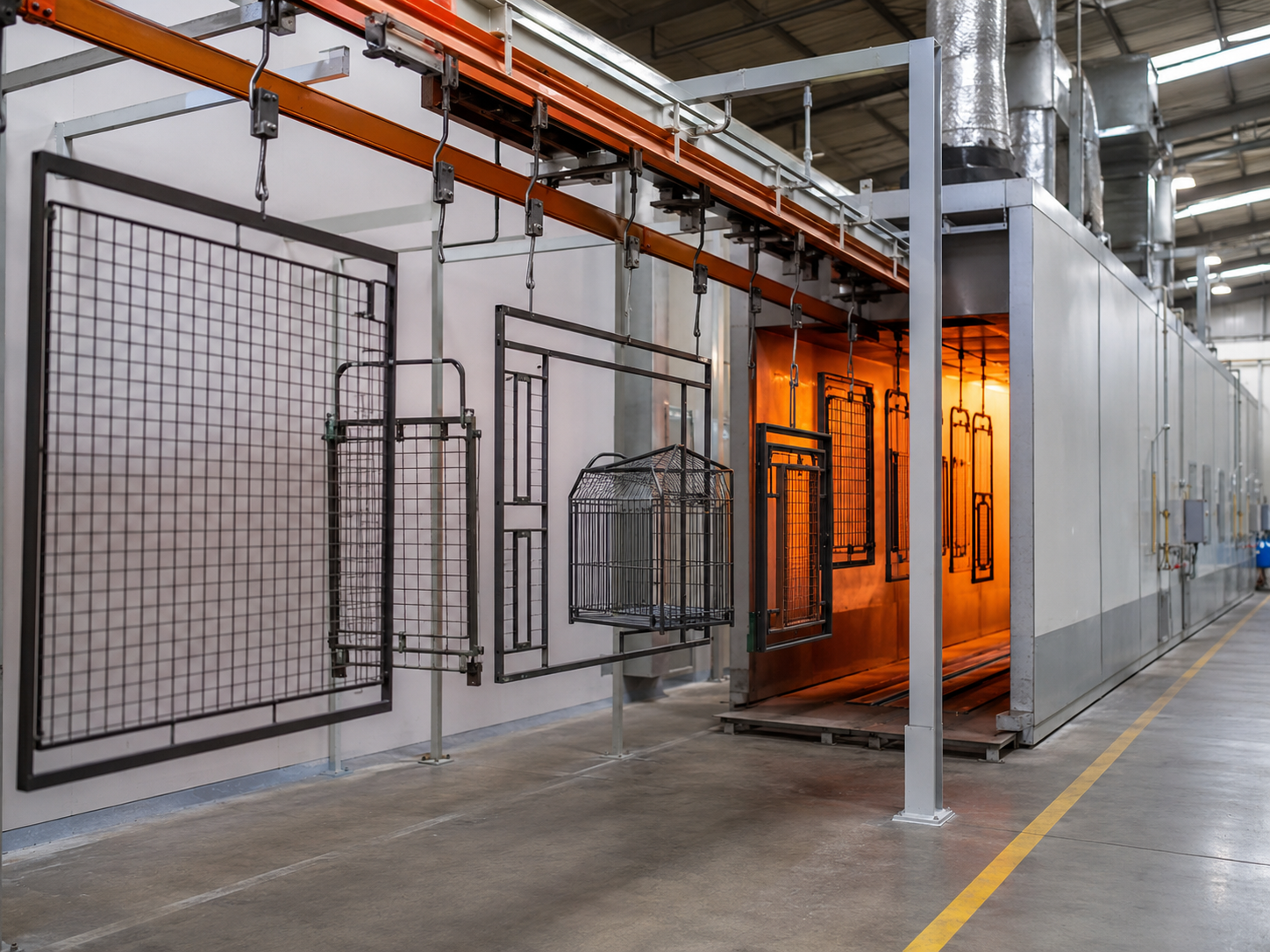

A drying oven is a heated chamber installed immediately after the pretreatment line.

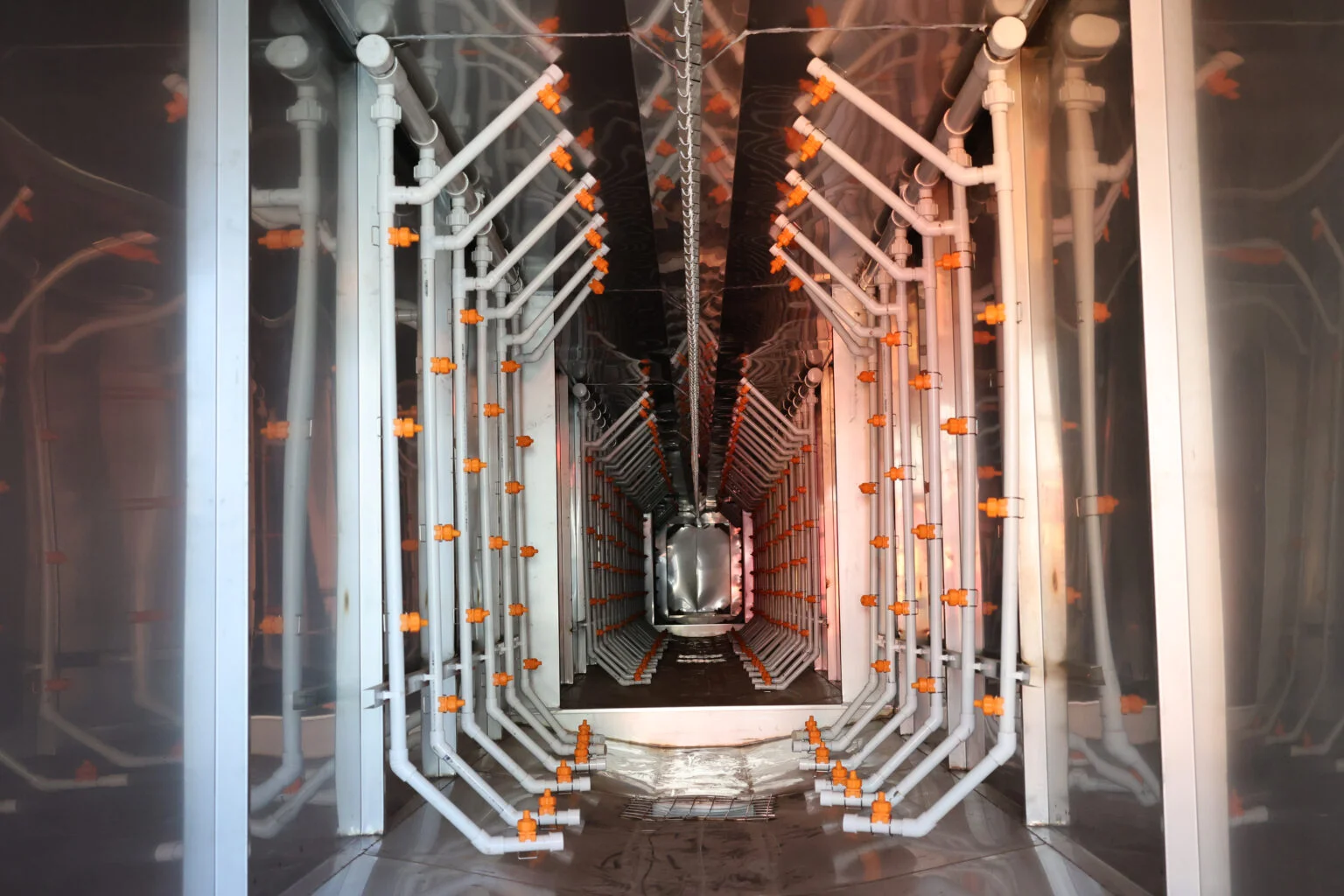

After parts go through degreasing, rinsing and conversion coating, water droplets remain in recesses,
joints and complex geometries. If you powder coat wet parts, you will see coating defects.
The drying oven solves this problem by:
-
Heating parts to 80-120°C to evaporate surface water quickly -
Creating controlled airflow to carry moisture away from the chamber -

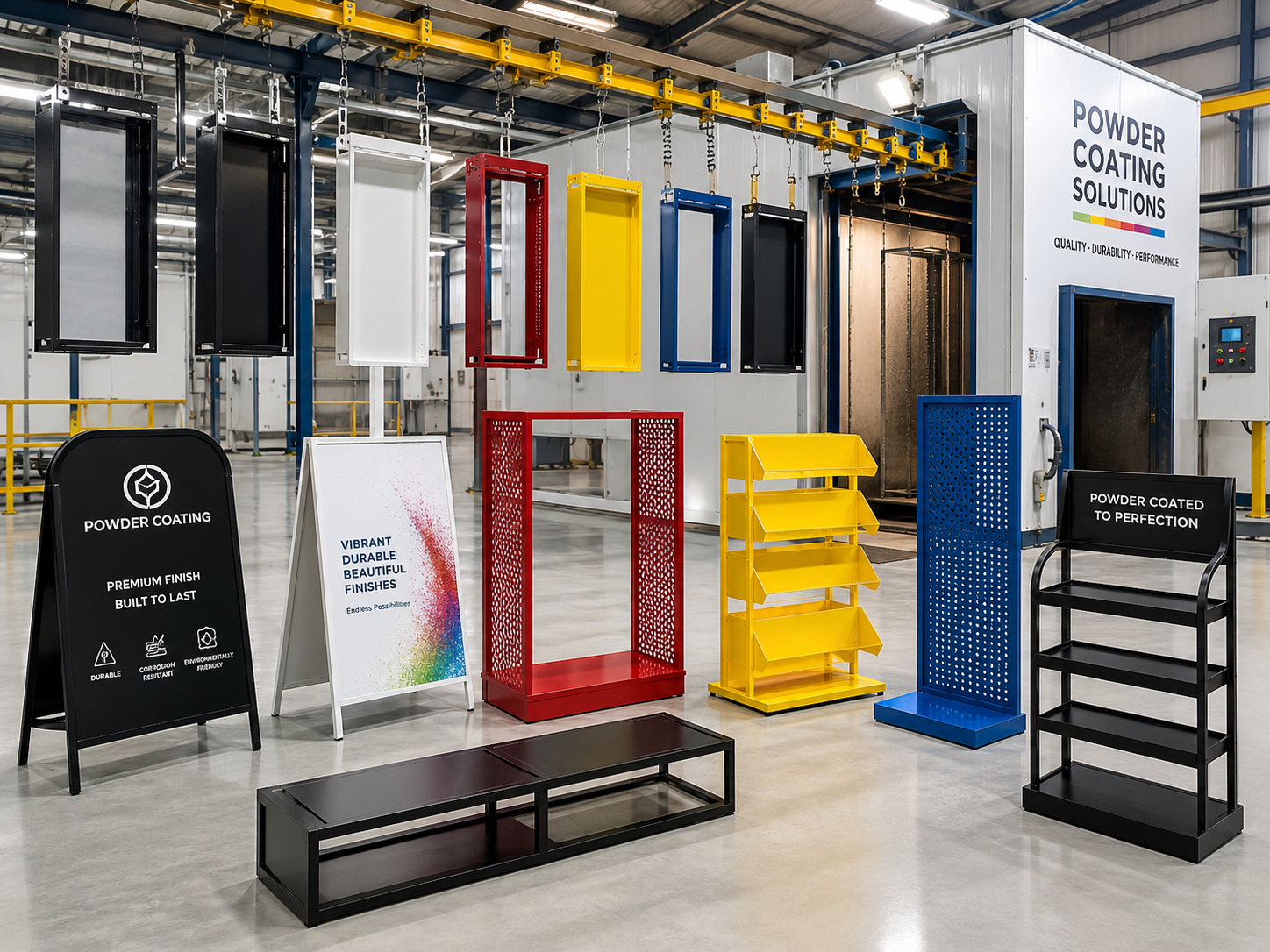

Ensuring parts enter the coating booth completely dry -
Preventing pinholes, bubbles and adhesion failures in the final coating
⚠️ What happens without a drying oven?
Water trapped in recesses will turn to steam when the part enters the curing oven, causing pinholes,
bubbles and poor adhesion. Many coating failures can be traced back to insufficient drying.
Core Features
Ketao Drying Oven Key Features
Designed for stable temperature, fast drying and long service life.

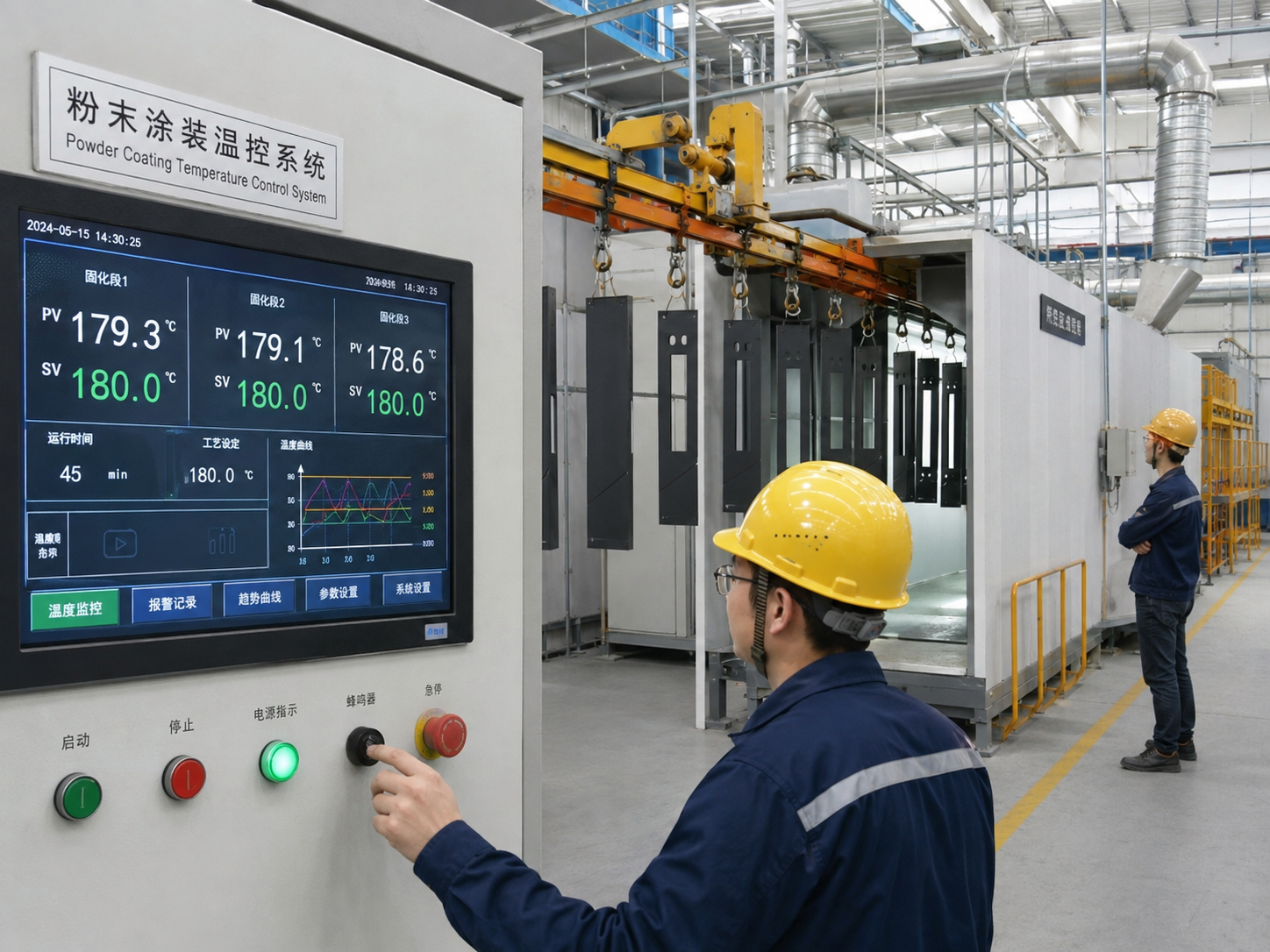

Precise Temperature Control
PID temperature controller with ±5°C accuracy. Programmable setpoint and timer for different part types.
- • Digital display and alarm system
- • Temperature sensors at multiple zones
- • Auto-adjust burner output

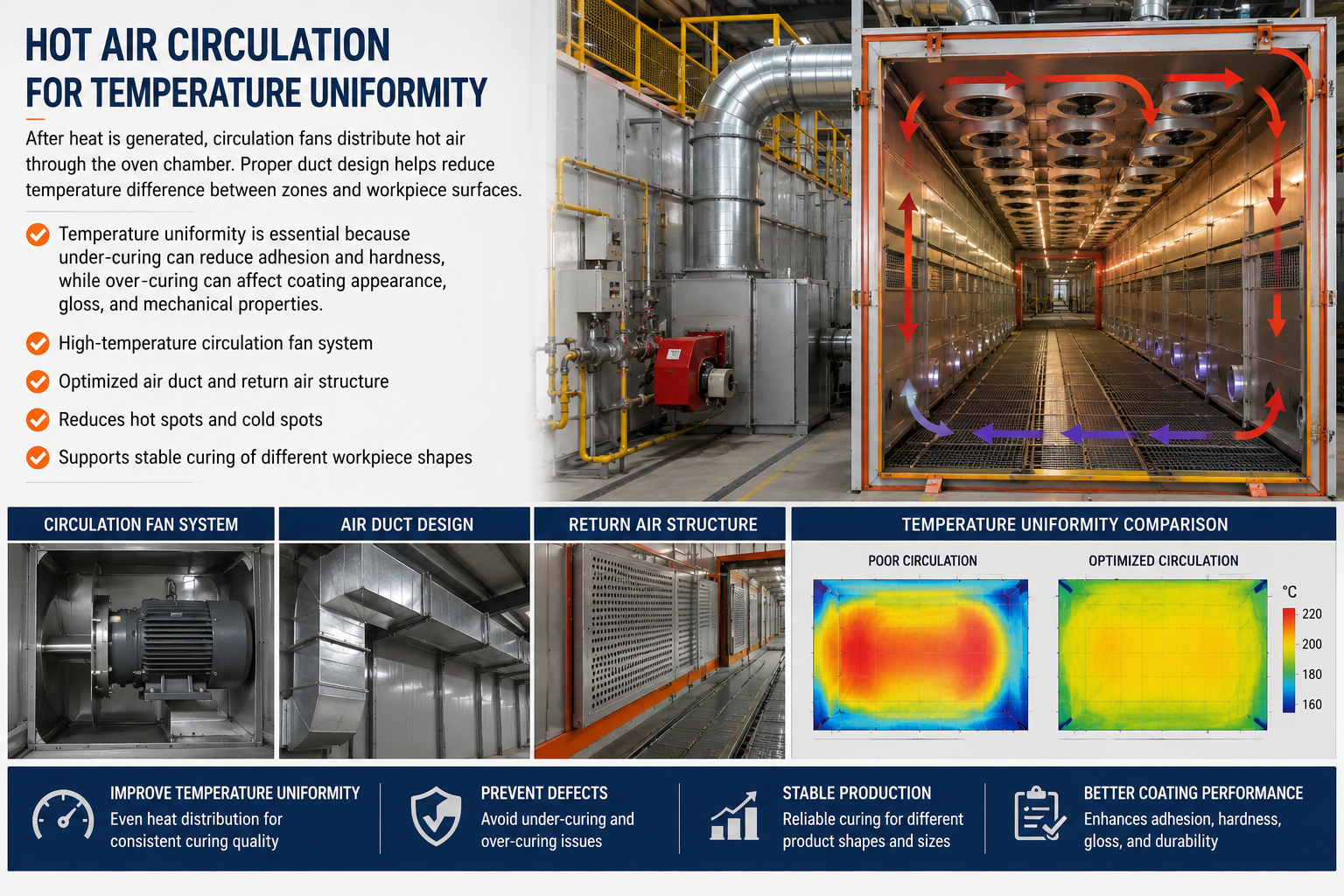

Efficient Air Circulation
Forced convection with centrifugal fans to distribute heat evenly and remove moisture quickly.
- • High-temperature resistant fans
- • Adjustable air velocity
- • Fresh air intake & exhaust system

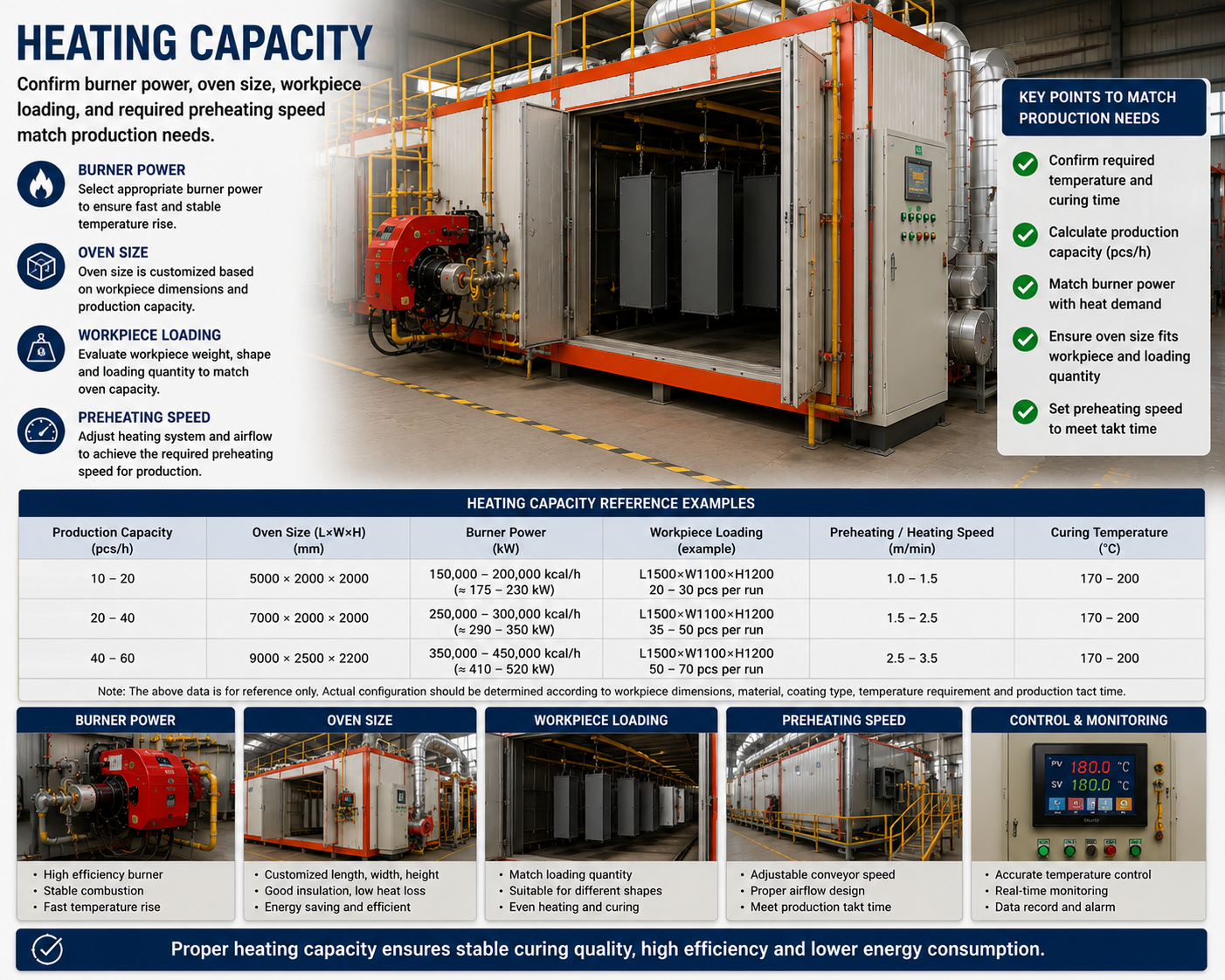

Flexible Heating Options
Choose from gas (LPG/natural gas), diesel or electric heating based on your local energy cost and availability.
- • Gas burner: fast heating, lower running cost
- • Diesel burner: no gas infrastructure needed
- • Electric heater: clean, easy installation
Robust Steel Structure
Heavy-duty steel frame with mineral wool insulation (50-100mm) to minimize heat loss and ensure long service life.
- • Galvanized or stainless steel inner chamber
- • Insulated double-wall construction
- • Easy access doors for maintenance
Conveyor Integration
Designed to integrate with overhead or floor conveyor systems for continuous or step-by-step operation.
- • Sealed entrance and exit curtains
- • Adjustable dwell time
- • Compatible with power & free conveyors
Energy Saving Design
Thick insulation, efficient burner and heat recovery options reduce energy consumption and operating cost.
- • Optimized insulation thickness
- • Heat recovery from exhaust air (optional)
- • On-demand heating control
Technical Specifications
Typical parameters for Ketao drying ovens. We customize each oven to match your parts and line speed.
| Parameter | Specification | Notes |
|---|---|---|
| Temperature range | 80–120°C | Typical working range for moisture removal |
| Temperature uniformity | ±5°C | Measured across working zone |
| Heating source | Gas / Diesel / Electric | Customer selects based on local energy cost |
| Insulation | 50–100mm mineral wool | Thickness depends on oven size and energy target |
| Chamber material | Galvanized or stainless steel | Stainless steel for harsh pretreatment environments |
| Air circulation | Forced convection | Centrifugal fans with adjustable speed |
| Control system | PID controller + HMI (optional) | Digital display, alarm and auto-control |
| Dwell time | 5–15 minutes | Depends on part thickness and moisture level |
| Dimensions | Custom designed | Based on part size, line speed and layout |
Common Question
Drying Oven vs Curing Oven: What's the Difference?
Many buyers ask if they can combine both functions. Here's a clear comparison to help you decide.
| Aspect | Drying Oven | Curing Oven |
|---|---|---|
| Purpose | Remove water after pretreatment | Cure powder coating (cross-link) |
| Temperature | 80–120°C | 180–220°C |
| Position in line | After pretreatment, before coating booth | After coating booth, final step |
| Dwell time | 5–15 minutes | 10–30 minutes (depends on powder) |
| Parts condition | Wet (after rinsing) | Dry with powder coating |
| Air quality requirement | Standard (moisture exhaust needed) | Clean (no contamination on coating) |
| Can they be combined? | ❌ Not recommended. Different temperatures, positions and cleanliness requirements mean separate ovens give better results. | |
💡 Can you skip the drying oven?
If your parts are very simple with no recesses (like flat sheets), you might use forced air blow-off instead of an oven.
But for most real-world parts—with holes, joints and complex geometry—a drying oven is the only reliable way to
prevent coating defects.
Trying to save money by skipping the drying oven usually leads to high defect rates and rework costs that far exceed
the oven investment.
Why Choose Ketao Drying Ovens?
We don't just sell ovens—we design complete pretreatment and coating systems that work together.
We Use Our Own Equipment
Ketao runs 5 powder coating lines in our own factory. Every drying oven design is proven in real production, not just on paper.
This means we understand the importance of reliable drying and have optimized our oven design based on years of daily operation.
Complete Line Integration
We design the drying oven as part of your complete system—pretreatment, drying, coating and curing—so everything works in sync.
No mismatch between oven capacity and line speed, no gaps in the conveyor, no temperature control conflicts.
Proven in Many Countries
Ketao drying ovens are running in Turkey, Algeria, India and other markets with different energy types and climate conditions.
We adapt the design to your local fuel availability, ambient temperature and energy cost structure.
Drying Oven FAQ
Common questions buyers ask about drying ovens in powder coating lines.
1. Can I skip the drying oven and go directly from pretreatment to coating?
+
A drying oven is a small investment compared to the cost of rework and customer complaints.
2. Can one oven do both drying and curing?
+
Combining them would compromise both functions and lead to defects.
3. How long do parts need to stay in the drying oven?
+
We calculate the exact dwell time during the design stage based on your specific parts.
4. Which heating type is most economical: gas, diesel or electric?
+
Diesel is convenient if gas infrastructure is not available. Electric is cleaner and easier to install but usually has higher running costs.
We can help you calculate the total cost of ownership for each option.
5. How much space do I need for a drying oven?
+
and your conveyor moves at 2 m/min, the oven needs to be about 20 meters long. We design the layout based on your workshop drawing
and can optimize for tight spaces.
Get a Drying Oven Quote for Your Production Line
Share your part dimensions, line speed and workshop layout. We'll design a drying oven that prevents coating defects and integrates perfectly with your system.
Engineering support available
Email: ketucoatingline@gmail.com
Complete Your Production Line
Related Powder Coating Equipment
Build a complete powder coating system with Ketao's integrated equipment.
Pretreatment Line
Clean & Prepare Surface
Spray or immersion pretreatment to clean, degrease and apply conversion coating before drying and powder coating.
-
3-7 stage spray or immersion -
Phosphate or chromate conversion -
Automated chemical control

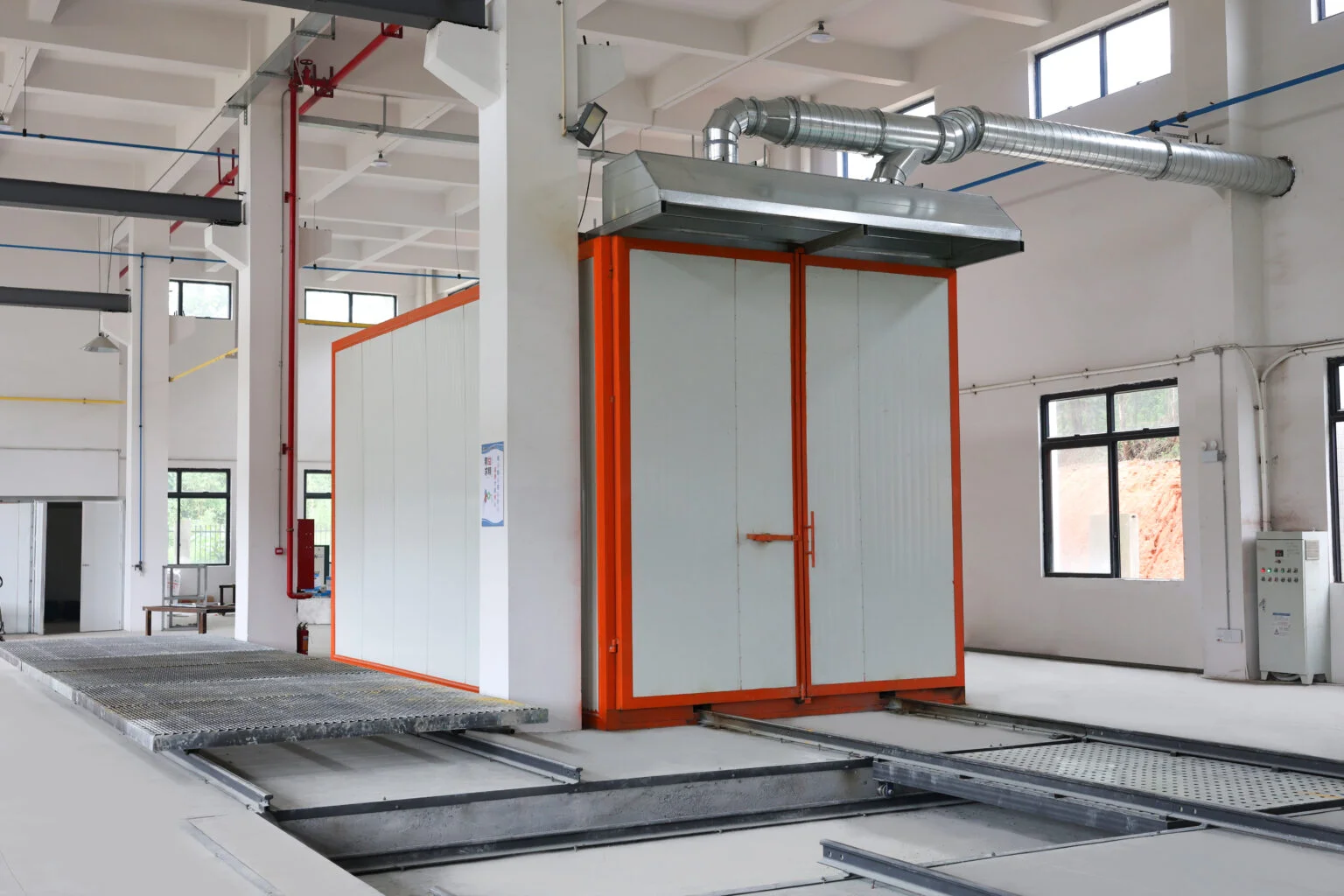

Curing Oven
