ROI in 3-6 Months

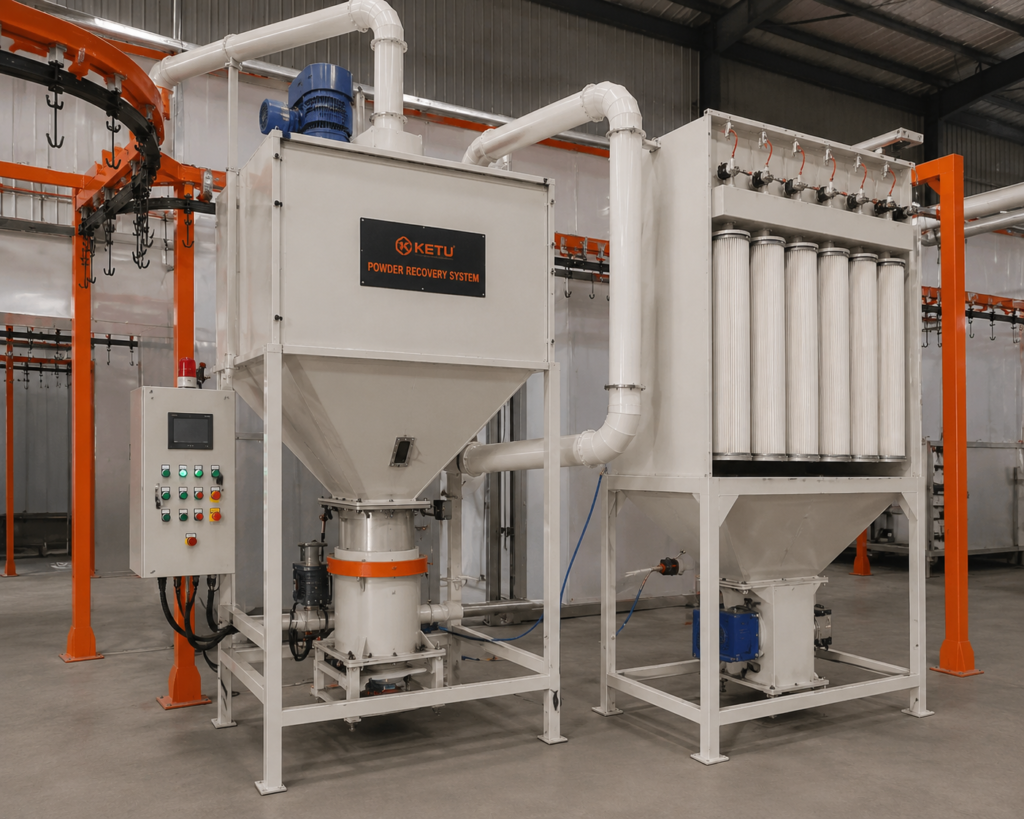

Powder Recovery System
Recover 95-98% Overspray & Cut Coating Costs 40-60%
Stop throwing money away with overspray powder. Ketao powder recovery systems capture and recycle up to 98% of overspray powder, dramatically reducing your powder consumption and coating cost per part.
-
Recover 95-98% of overspray powder -
Reduce powder cost by 40-60% -
Cleaner booth and better working environment -
Cyclone + filter or cartridge filter design
Recovery Rate
Less powder waste
Typical Cost Reduction
40-60%
Without Powder Recovery: You're Wasting 30-50% of Every Kilogram
Industry data shows that 30-50% of powder becomes overspray in typical coating operations.
Without a recovery system, that powder goes straight to waste—along with your money.
Example: 100kg powder/month
30-50kg Lost
≈ $150-300 wasted monthly

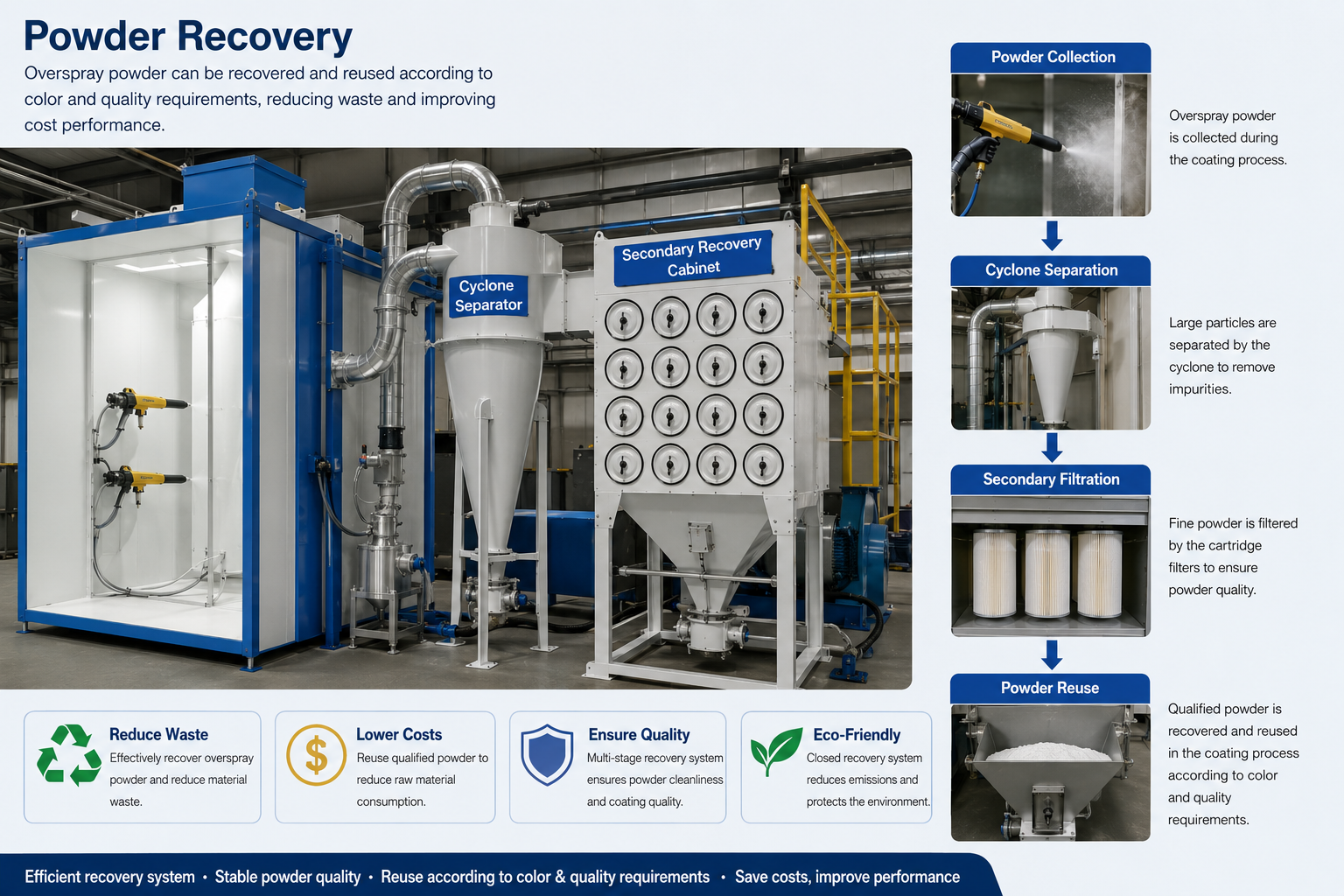

What Is a Powder Recovery System?
A powder recovery system is built into or attached to your powder coating booth. When you spray powder,
not all of it lands on the part—some becomes overspray that floats in the air. Instead of exhausting
this powder outside or letting it accumulate in the booth, a recovery system:
-
Captures overspray powder through controlled airflow -
Separates powder from air using cyclones or filter cartridges -
Sieves and stores recovered powder for reuse -

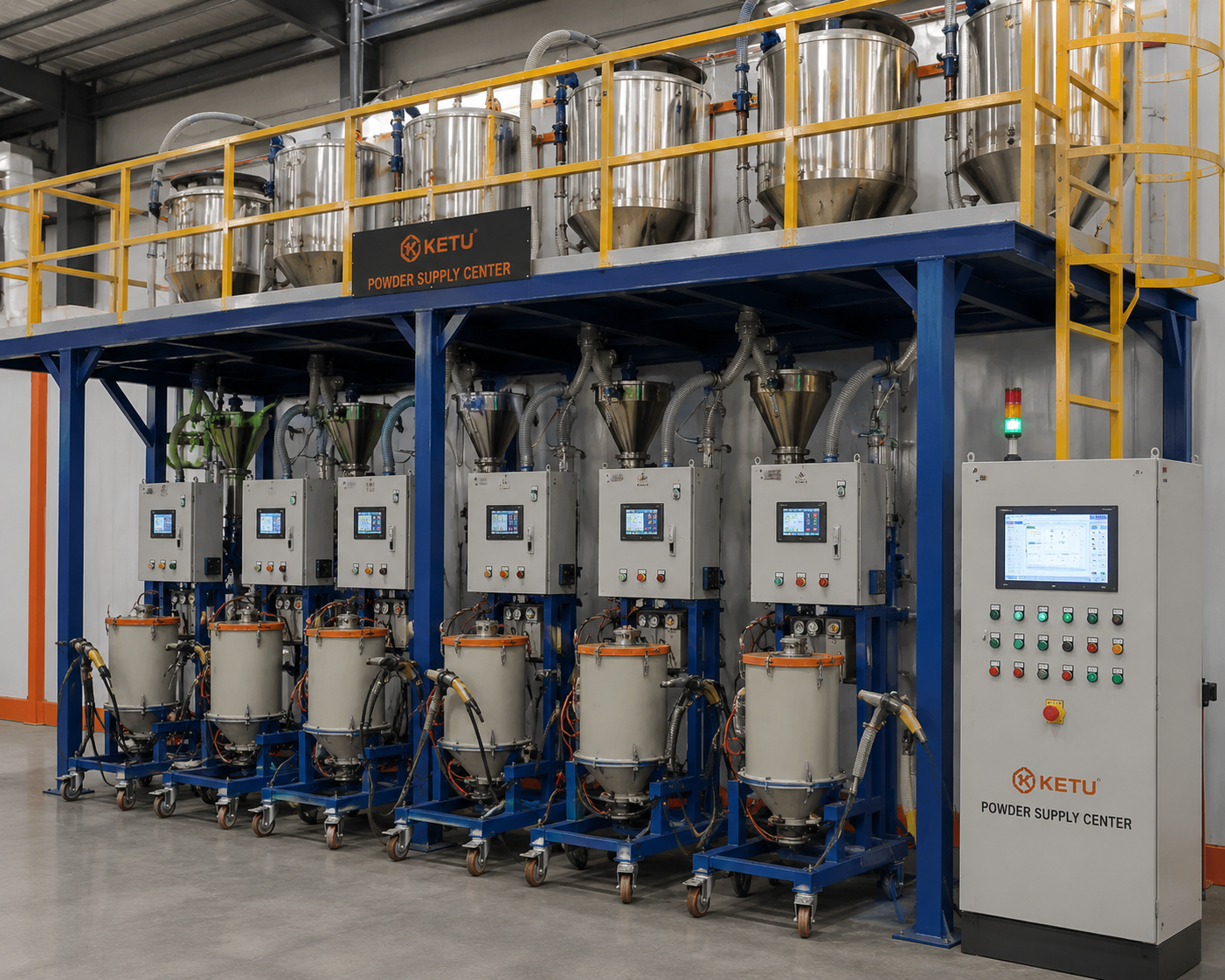

Feeds powder back to the spray guns via a powder feed center
The result: You use only the powder that actually lands on the part, and the rest goes back into the system.
This can reduce your powder consumption by 40-60% compared to no recovery.
💰 Return on Investment
Most customers recover the cost of a powder recovery system within 3-6 months through reduced powder consumption.
After that, it's pure savings—month after month, year after year.
Choose the Right System
Two Main System Types: Which One Is Right for You?
Ketao offers two proven powder recovery designs. Here's how to choose based on your production needs.

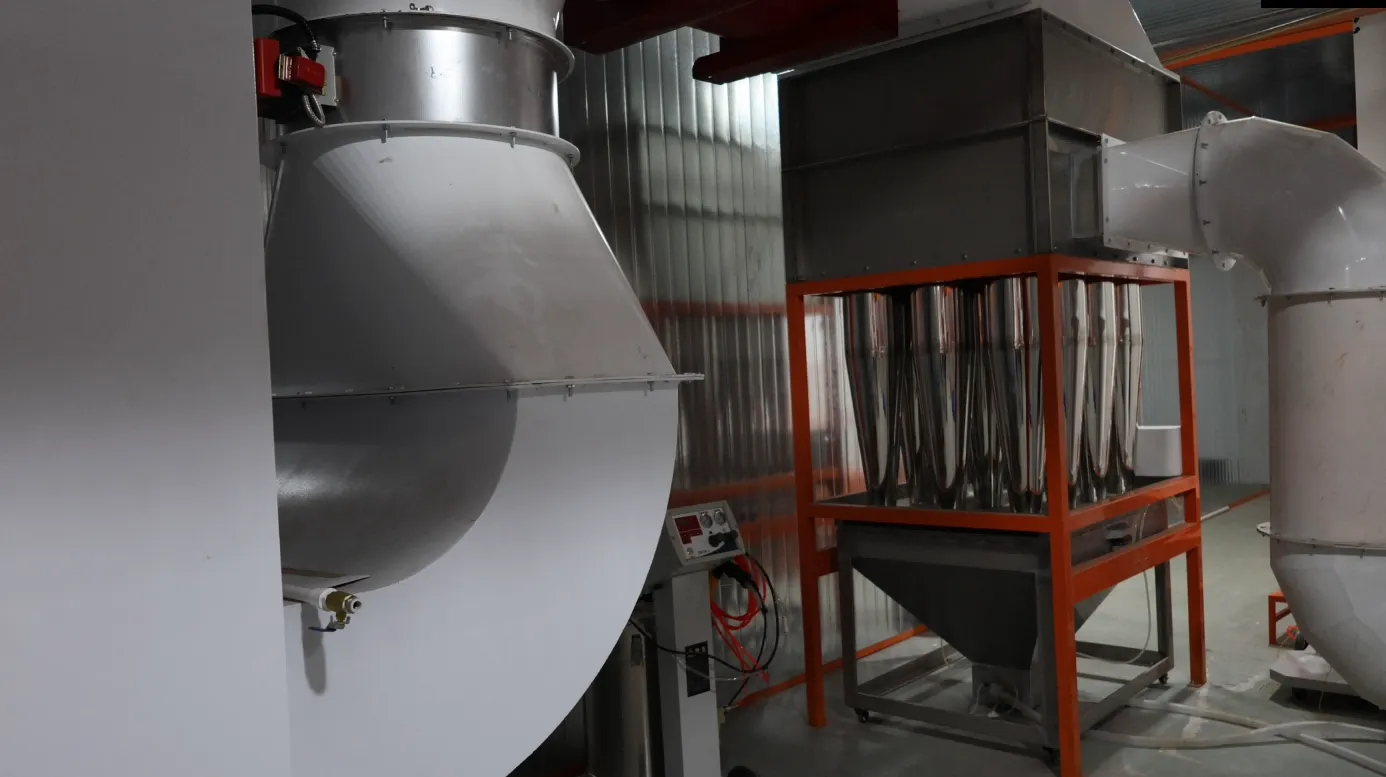

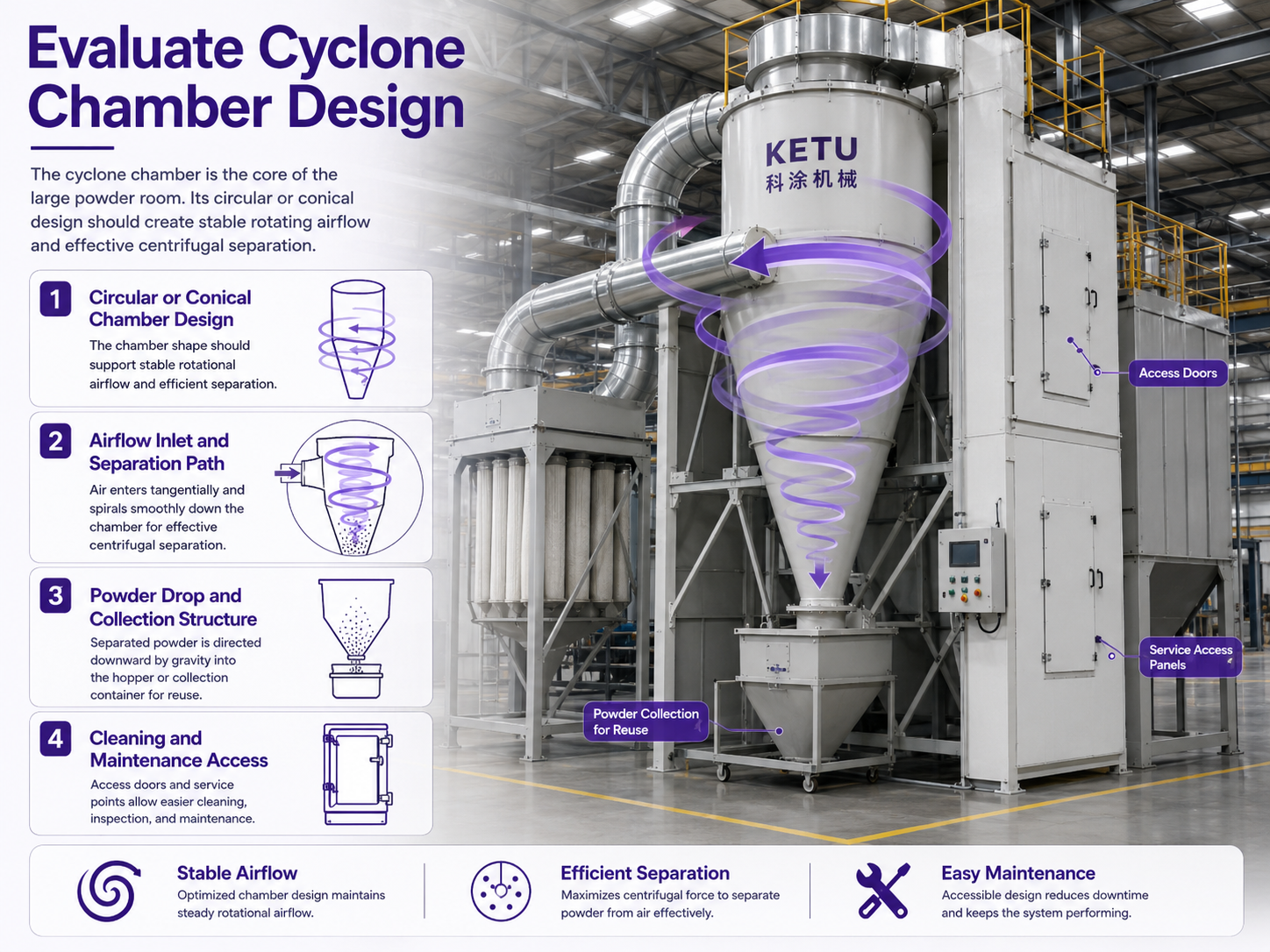

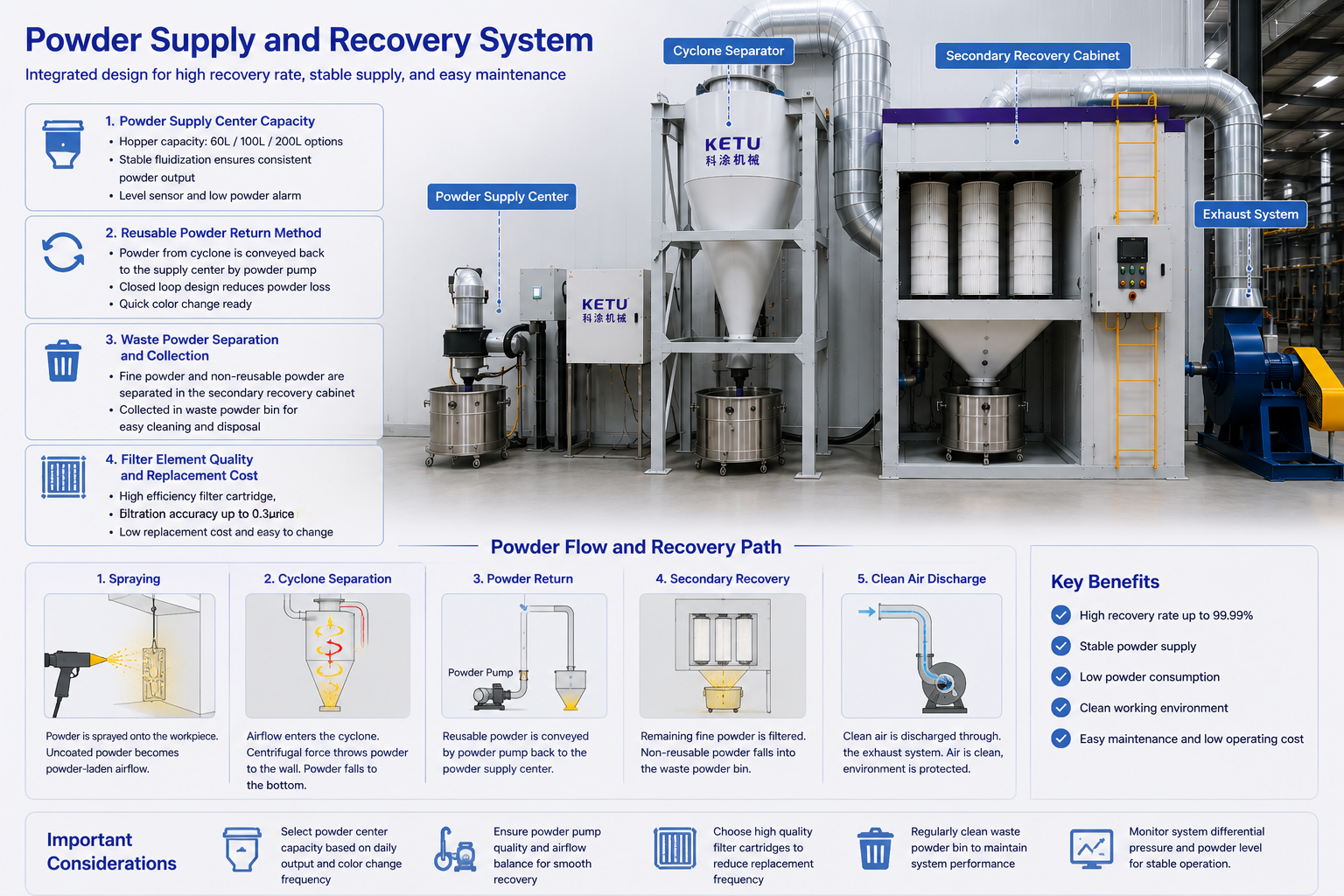

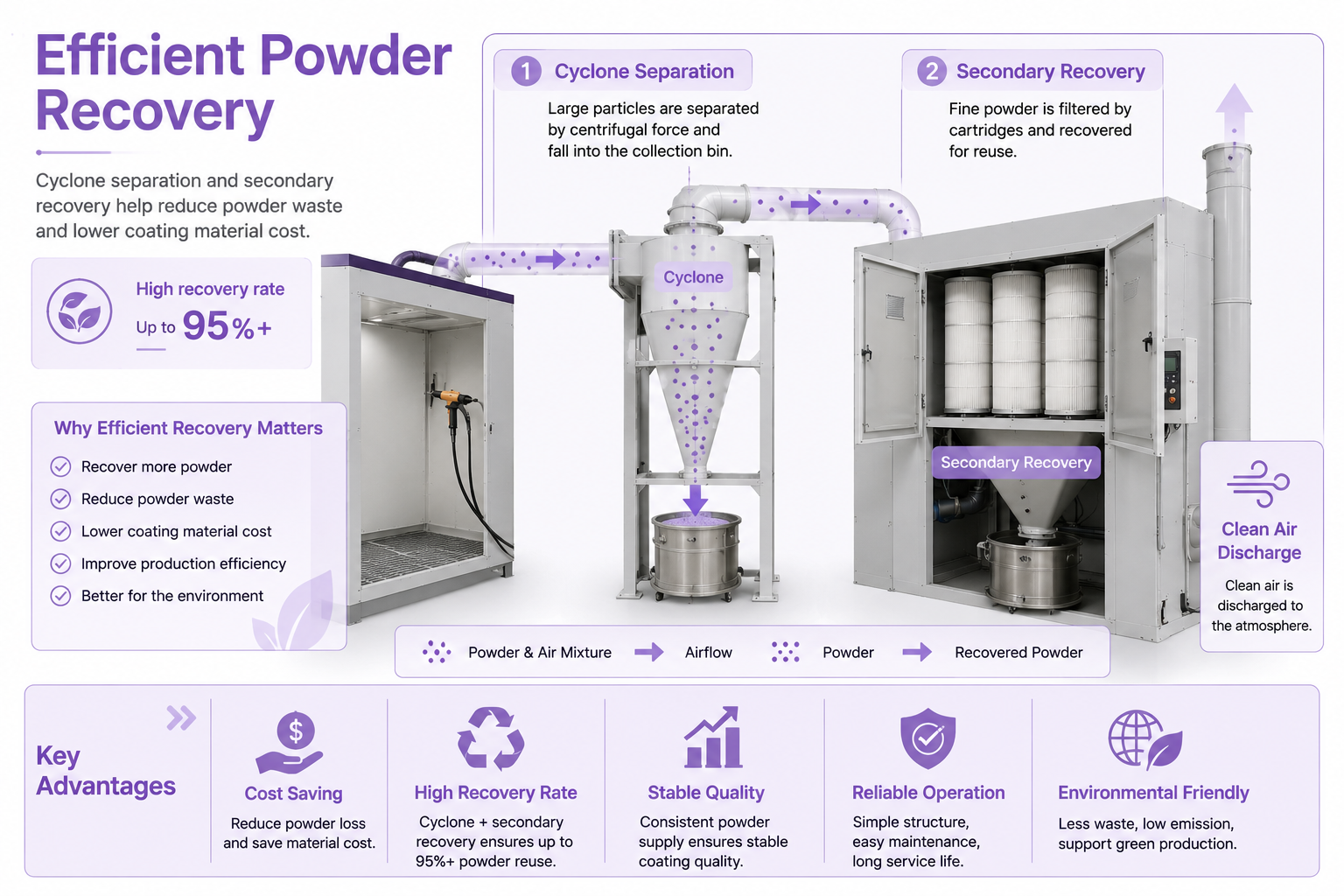

Cyclone + Filter System
Best for high-volume single-color production
How it works:
Overspray powder is drawn through a cyclone separator where 90-95% of powder drops into a collection bin by centrifugal force.
The remaining fine powder is captured by a secondary filter unit.
Advantages:
-
Very high recovery rate (95-98%) with two-stage separation -
Lower filter replacement cost (cyclone does most work) -
Better for large powder volumes and long production runs -
Longer filter life due to pre-separation in cyclone
Disadvantages:
-
More complex structure takes up more space -
Colour change takes longer (need to clean cyclone and pipes) -
Higher initial investment cost
Best for:
Factories running the same colour for long periods, high daily powder consumption (10+ kg/day),
and where maximizing recovery rate is more important than quick colour change.

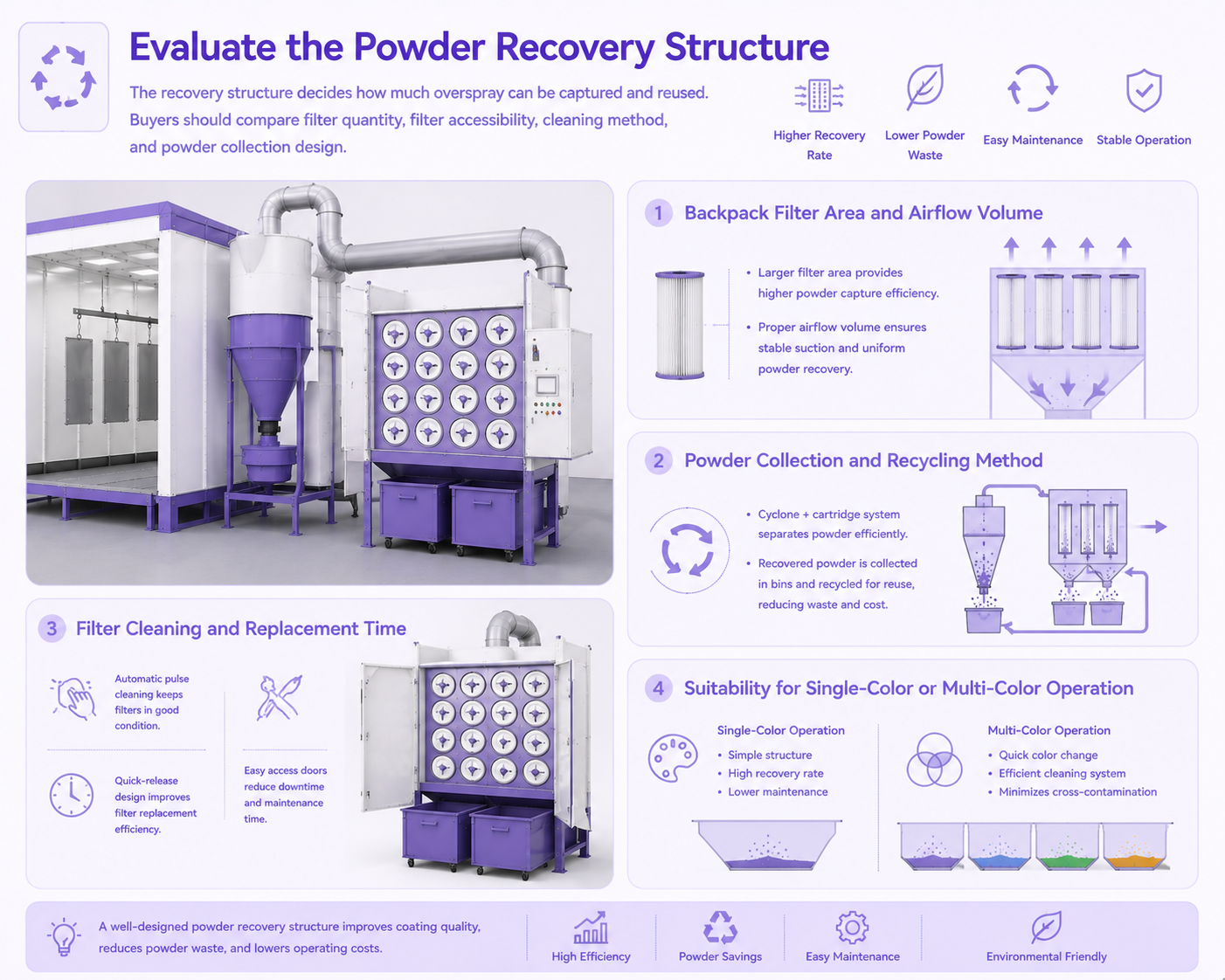

Cartridge Filter System
Best for multi-colour and smaller booths
How it works:
Overspray powder is captured directly by filter cartridges inside or beside the booth. Pulse-jet cleaning system
automatically shakes powder off cartridges into a collection hopper for reuse.
Advantages:
-
Compact design saves floor space -
Fast colour change—simply swap cartridges (optional multi-set design) -
Simpler structure, easier maintenance -
Lower initial investment
Disadvantages:
-
Slightly lower recovery rate (90-95%) compared to cyclone system -
Filter cartridges need periodic replacement (every 6-18 months) -
More frequent filter cleaning needed for very high volume production
Best for:
Factories that change colours frequently (furniture, custom metal parts), smaller to medium booth sizes,
and where quick colour change and simplicity are priorities.
Not Sure Which System to Choose?
Tell us your production details (part types, colour change frequency, powder volume) and we'll recommend the best system for your factory.
Real Customer Case
How a Turkish Furniture Factory Saved $2,400/Month
Actual results from a Ketao customer running outdoor metal furniture production.
Garden Furniture Manufacturer
Turkey • 8-12 frequent colour changes per week
Situation before powder recovery:
-
Powder consumption: 400 kg/month -
Powder cost: $6/kg × 400 kg = $2,400/month -
Estimated overspray loss: ~40% (160 kg wasted monthly) -
Dirty booth environment, frequent cleaning needed
Solution: Ketao Cartridge Filter Recovery System
We installed a cartridge filter system optimized for quick colour change since the factory produces many different
furniture colours each week. The system captures overspray and feeds it back into the powder supply.
Results after 6 months:
-
Powder consumption reduced to 240 kg/month (40% reduction) -
New powder cost: $6/kg × 240 kg = $1,440/month -
Monthly savings: $960 (annual savings: ~$11,500) -
Cleaner booth, less manual cleaning labour -
System paid for itself in ~5 months
Financial Impact Summary
Before Recovery System
$2,400/mo
After Recovery System
$1,440/mo
Monthly Savings
$960
Annual Savings
~$11,500
ROI Period
~5 months
💡 Key Takeaway
Every month after payback is pure profit. Over 5 years, this customer will save approximately $57,500 in powder costs alone.
Core Features of Ketao Powder Recovery Systems
Designed for reliable performance, easy maintenance and maximum powder savings.
High Recovery Rate (95-98%)
Advanced separation technology captures nearly all overspray powder, minimizing waste and maximizing cost savings.
Pulse-Jet Cleaning
Automatic compressed air cleaning system keeps filters clear and maintains consistent airflow and recovery performance.
Differential Pressure Monitoring
Built-in sensors monitor filter condition and alert operators when cleaning or replacement is needed.

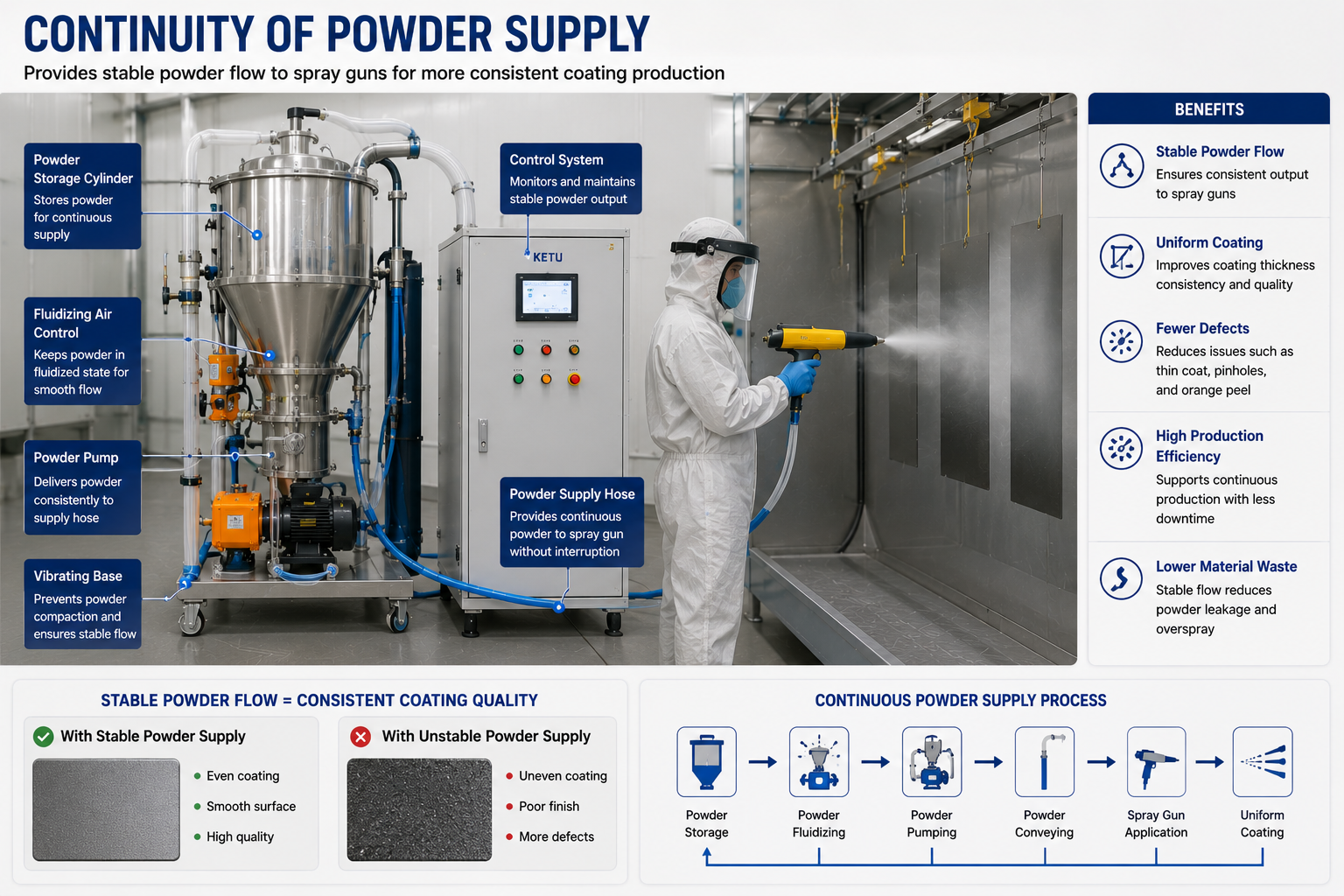

Integrated Sieving & Feed System
Recovered powder is automatically sieved to remove contamination and fed back to spray guns via powder center.
Easy Maintenance Access
Quick-open panels and cartridge design allow fast filter inspection, cleaning and replacement without special tools.
Quick Colour Change Options
For multi-colour production, we offer quick-clean designs or multi-cartridge systems to minimize colour change time.
Powder Recovery System FAQ
Common questions about powder recovery systems and their operation.
1. Can I mix virgin powder with recovered powder?
+
on your quality requirements. For high-gloss or critical finish work, you might use more virgin powder. For standard industrial
coatings, 100% recovered powder often works perfectly.
2. How often do I need to replace filter cartridges?
+
The pulse-jet cleaning system extends their life significantly. We'll provide a recommended maintenance schedule based on your
production volume.
3. Can one recovery system handle multiple colours?
+
a quick-clean cartridge design or a multi-unit system where each colour has its own recovery set. We'll design the best
solution based on your colour-change frequency.
4. What's the payback period for a powder recovery system?
+
After the system pays for itself, you continue saving money every month for years. See our customer case study above for a real example.
5. Does recovered powder have the same quality as virgin powder?
+
recovered powder performs nearly identically to virgin powder. We recommend periodic testing (gloss, film thickness, adhesion)
to verify consistent quality.
Ready to Reduce Your Powder Coating Costs?
Share your powder consumption and production details. We'll calculate your potential savings and recommend the best recovery system for your factory.
Free savings calculation
Email: ketucoatingline@gmail.com
Complete Your Coating System
Related Powder Coating Equipment
Build a complete powder coating system with Ketao's integrated equipment.

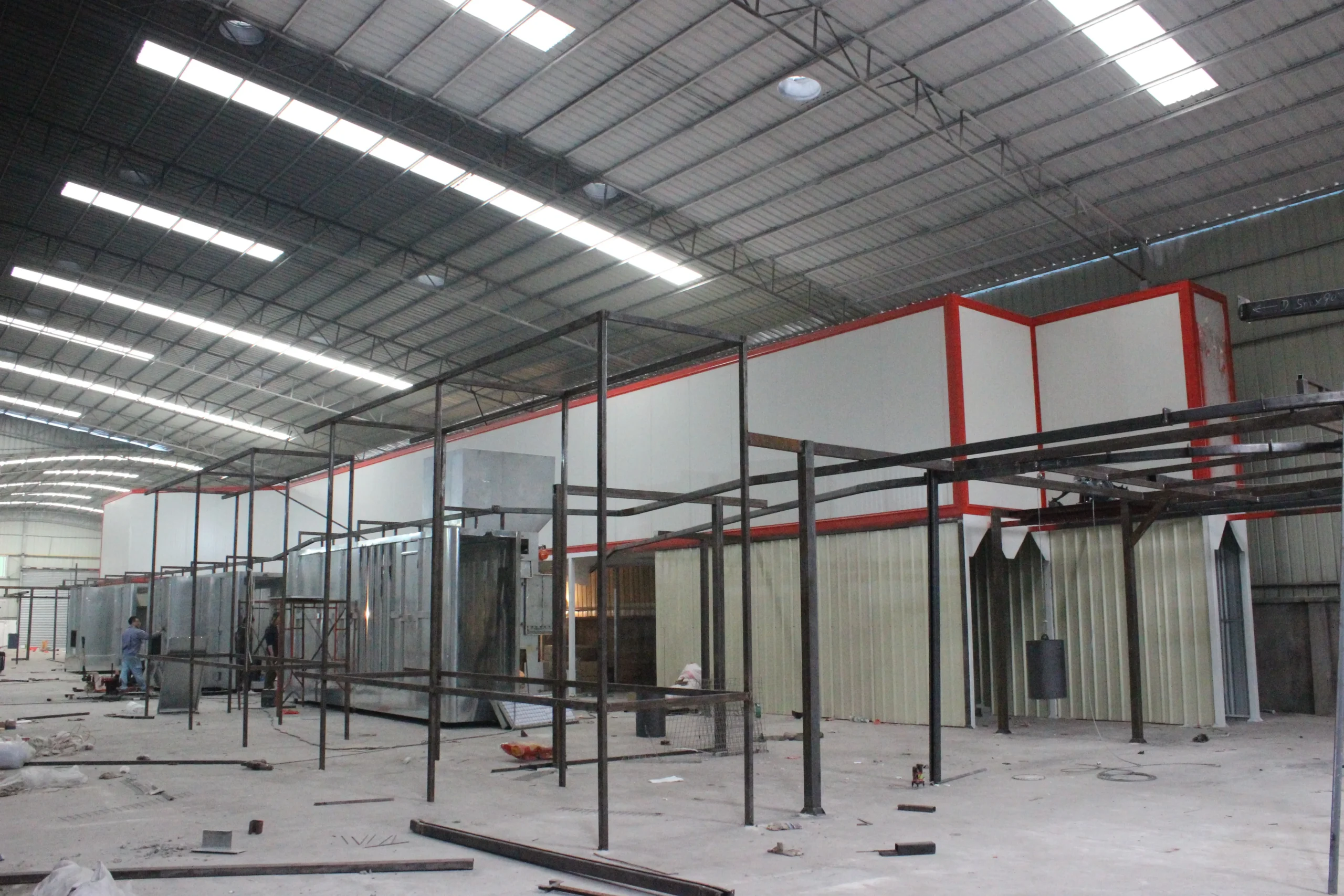

Powder Coating Booth
Apply Powder Coating
Manual or automatic powder application booth where the recovery system captures overspray for reuse.
-
Manual & automatic gun options -
Integrated recovery design -
Quick colour change design
Powder Spray Guns
Electrostatic Application
High-quality electrostatic powder spray guns for manual or automatic coating with adjustable parameters.
-
Adjustable kV and powder output -
Trusted brands & reliable performance -
Easy to clean and maintain
powder coating line"
class="w-full h-48 object-cover group-hover:scale-105 transition-transform duration-300">

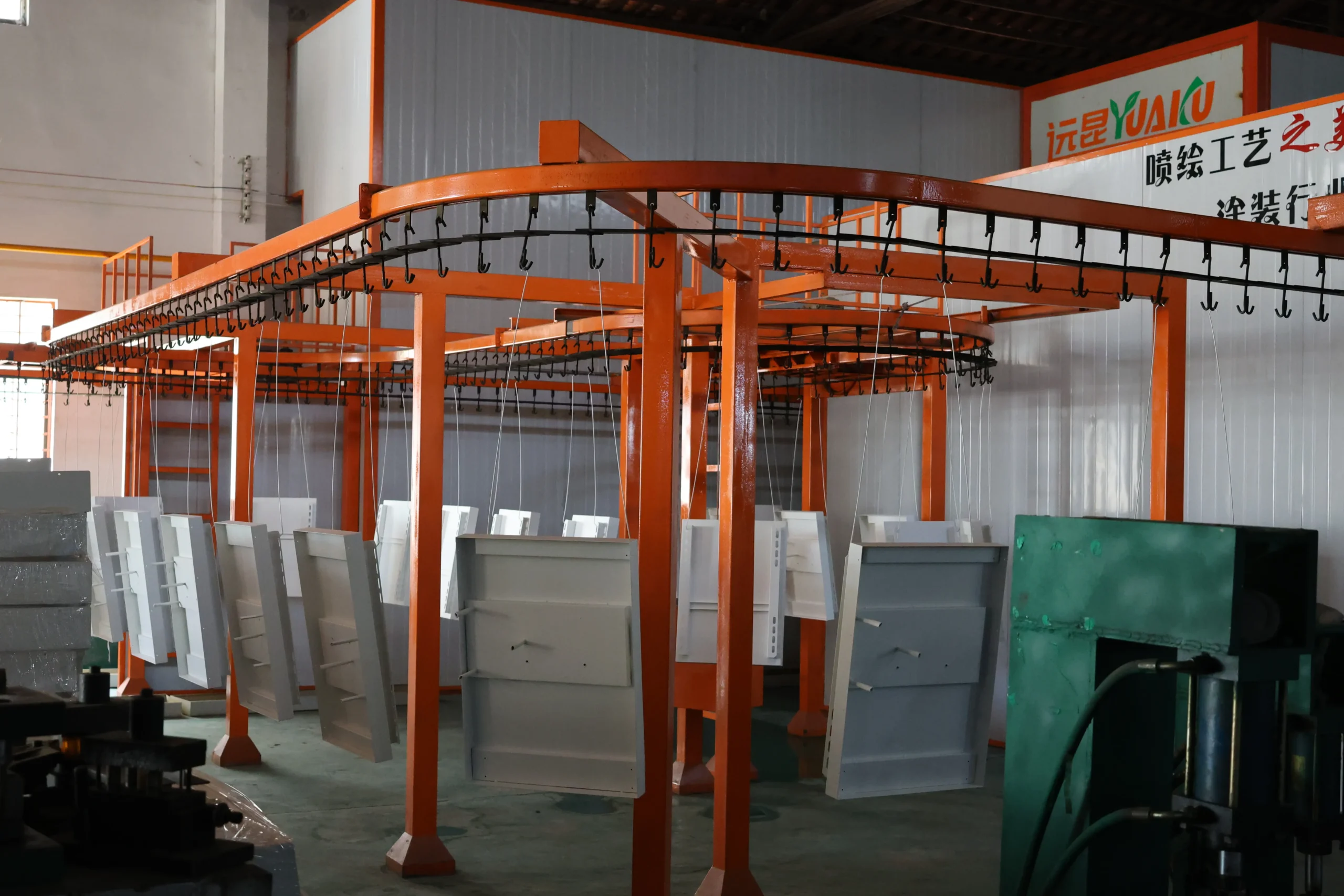

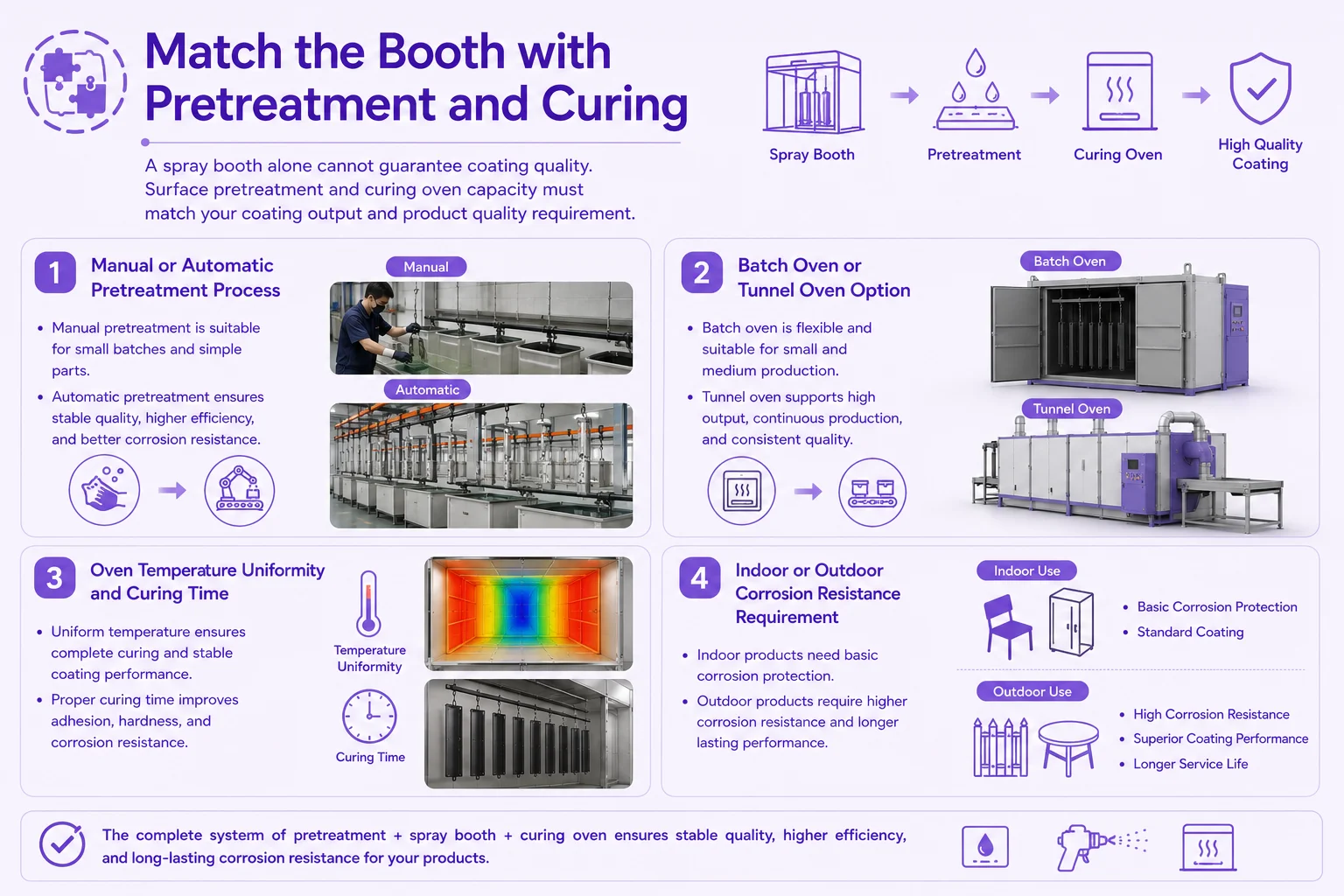

Complete Coating Line
Full Turnkey System
Complete powder coating system with pretreatment, drying, coating, recovery and curing—all working perfectly together.
-
Integrated design for stable operation -
Customized to your parts & volume -
Full installation & training support
💡 Want to Maximize Your Powder Savings?
Combine a powder recovery system with optimized booth design, proper gun settings and operator training for the lowest cost per coated part.
