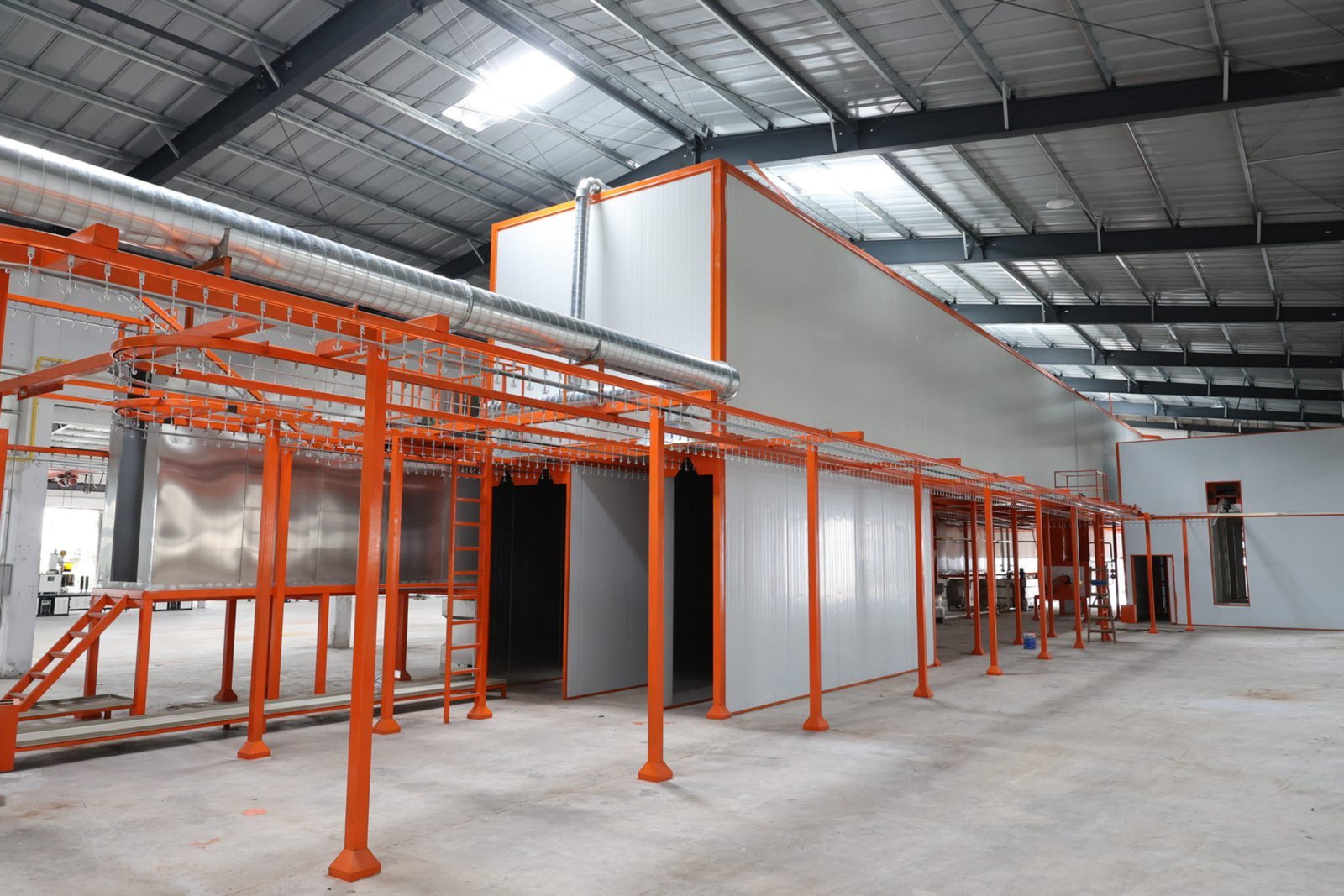

Warehousing Industry Powder Coating Line
KETU Warehousing Industry Powder Coating Line is a complete electrostatic coating solution for storage rack manufacturers, logistics equipment factories, warehouse shelving suppliers, and material handling equipment producers. It is designed for pallet rack beams, uprights, shelves, roll cages, trolleys, guardrails, lockers, mesh cages, and heavy-duty warehouse frames.
Core system advantages:
- Uniform coating on long beams, perforated uprights, welded frames, mesh panels, corners, and reinforced joints.
- Strong pretreatment and curing design for abrasion resistance, corrosion resistance, and warehouse-use durability.
- Powder recovery up to 95%+ with cyclone recovery and secondary recycling options for large-batch production.
- Automatic conveyor, spray booth, curing oven, cooling, and centralized PLC control for stable line rhythm.
- Suitable for heavy-duty racking, storage shelves, mezzanine components, logistics carts, roll cages, and warehouse safety products.
95%+
powder recovery target with cyclone and secondary recycling cabinet layout
60–120μm
typical coating thickness range for warehouse rack and shelf durability
Long Parts
line design supports beams, uprights, rails, frames, panels, and mesh cages
Heavy Duty
pretreatment and curing planned for impact, abrasion, and corrosion resistance
Warehousing Applications
Specialized Powder Coating Systems for Warehouse Equipment
Warehouse products have long workpieces, repeated production, color-coded SKUs, and high durability demands. Click each application to see the recommended coating focus.

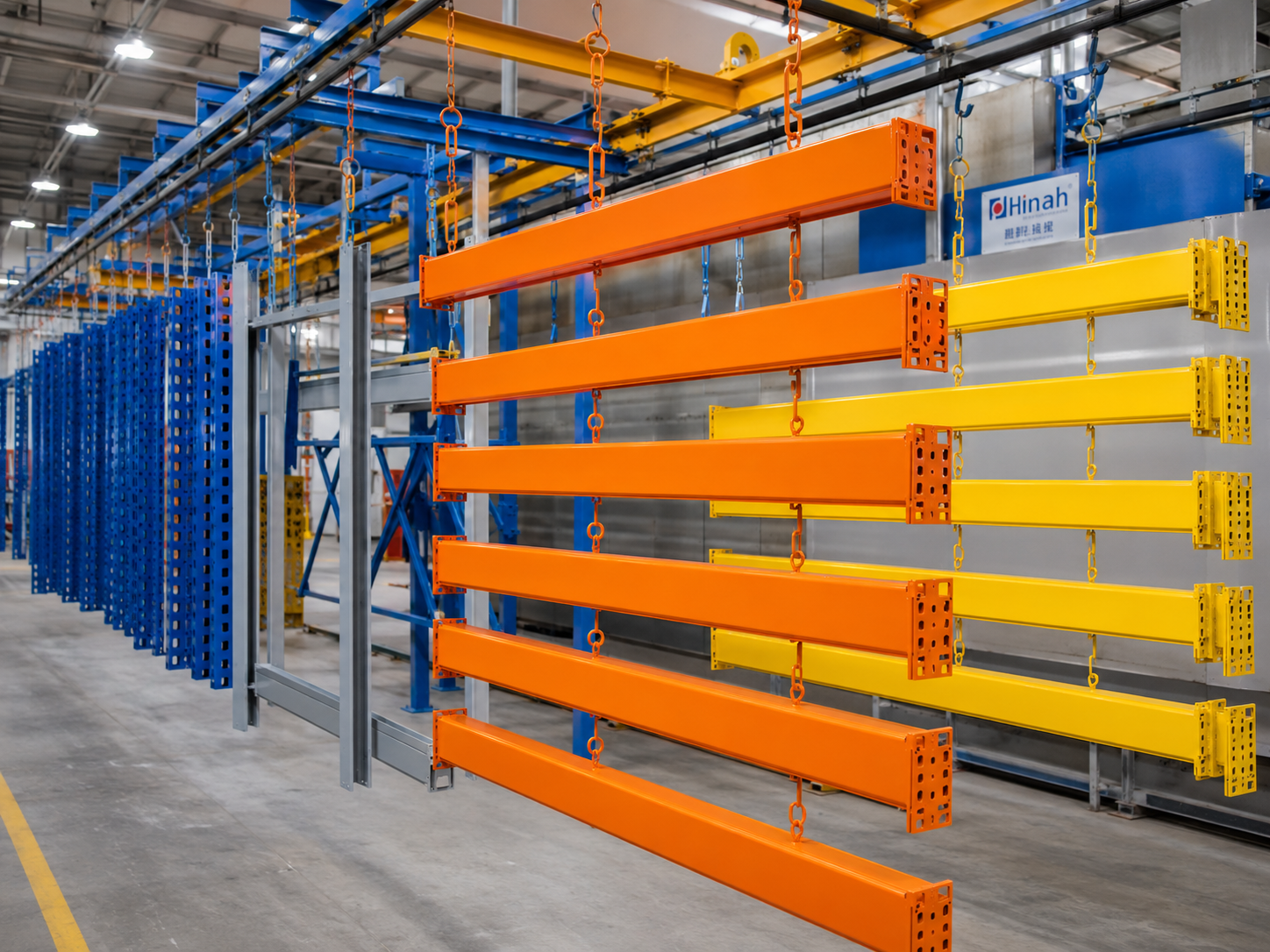

Pallet Racking Beams and Uprights
Pallet rack beams, uprights, diagonal braces, base plates, and connectors need strong edge coverage, stable color, and durable film thickness for long warehouse service life.- Spray gun layout designed for long profiles and perforated uprights.
- Hanging and conveyor spacing planned for heavy and long parts.
- Yellow, orange, blue, gray, and custom safety colors supported.

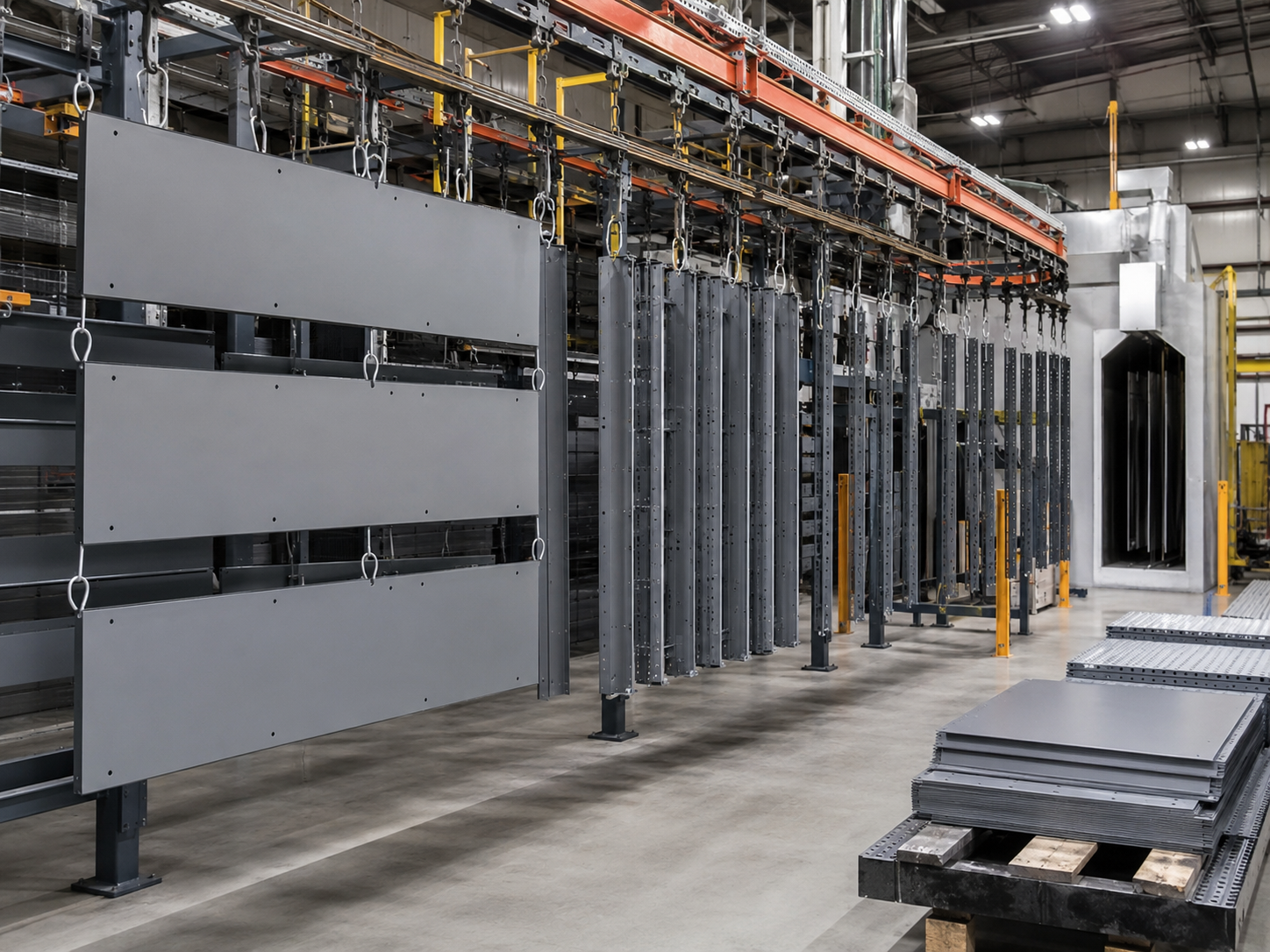

Storage Shelving and Shelf Panels
Warehouse shelves, boltless shelving, steel panels, support frames, and adjustable racks require clean surface appearance, consistent color, and scratch-resistant coating.- Flat panel appearance control for visible shelf surfaces.
- Powder thickness managed to avoid excessive buildup on holes and edges.
- Flexible line design for panels, frames, brackets, and accessories.

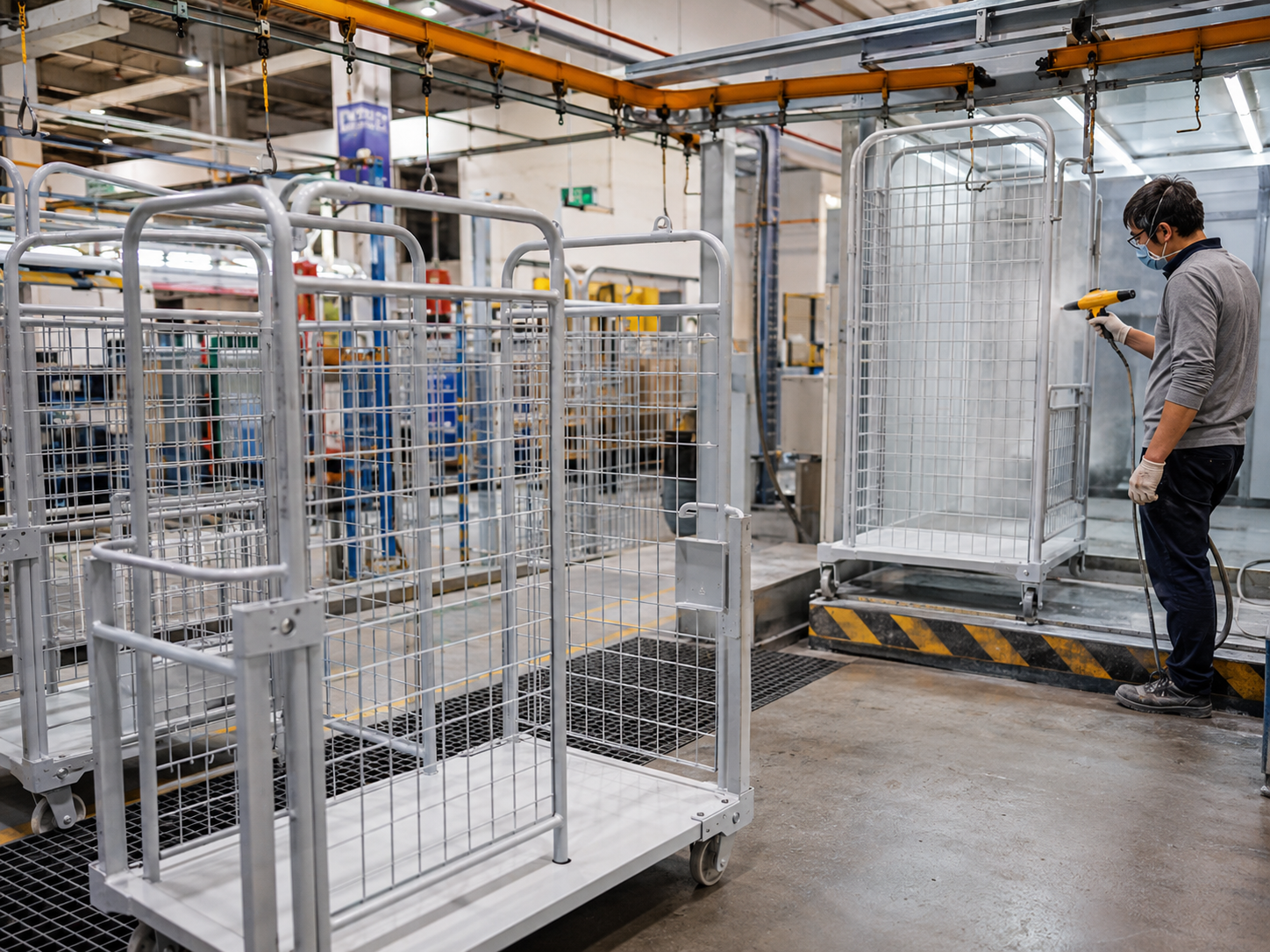

Logistics Carts, Roll Cages, and Trolleys
Material handling equipment often includes welded frames, mesh walls, casters, handles, and tubular structures. Coating must withstand daily pushing, impact, and abrasion.- Good powder penetration around mesh, tubes, and welded corners.
- Manual touch-up option for complex geometry and shadow areas.
- Durable curing profile for impact and abrasion resistance.

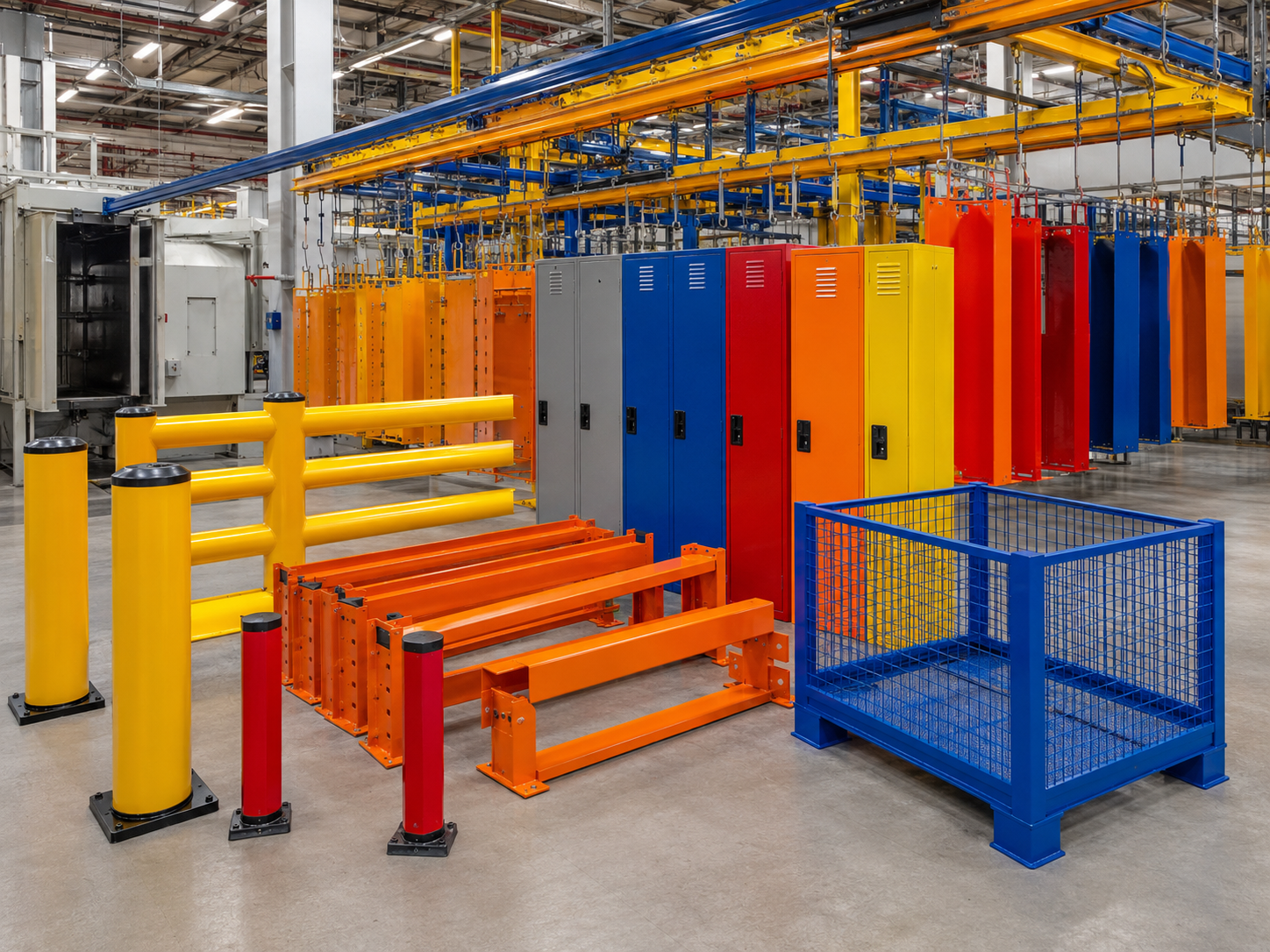

Warehouse Safety Products and Accessories
Guardrails, bollards, barriers, lockers, mesh cages, mezzanine components, and safety accessories require high-visibility colors, corrosion resistance, and stable coating appearance.- Bright safety colors with stable gloss and coverage.
- Strong coating on corners, bolt holes, welded plates, and reinforcements.
- Flexible color-change planning for different product lines.
Pain Points and Solutions
Warehousing Equipment Coating Challenges Solved by KETU Technology
Warehouse rack and logistics equipment manufacturers need durability, line speed, stable color, and powder economy. A complete coating line solves these problems from pretreatment to curing.

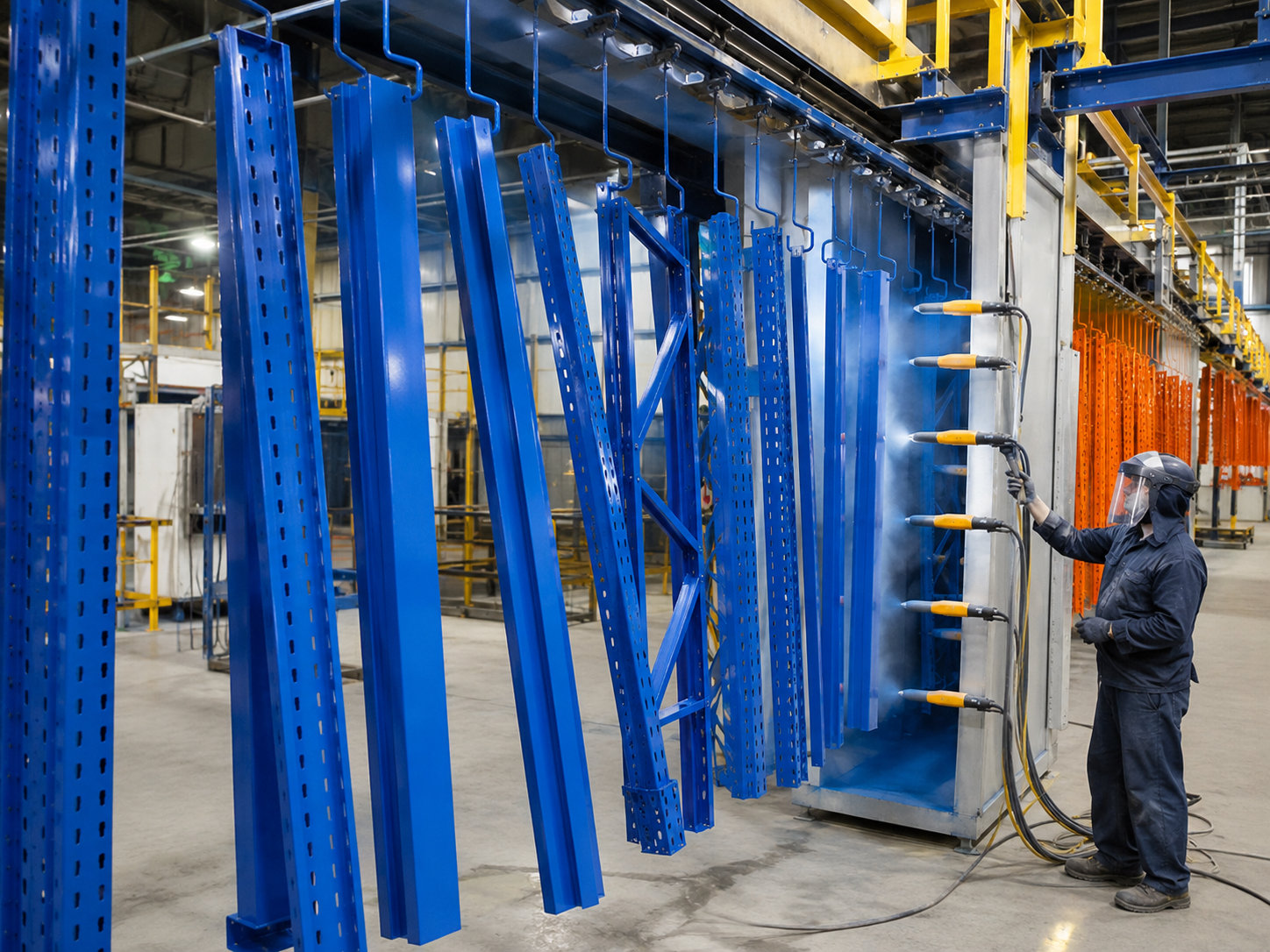

Uneven Coverage on Long Profiles and Perforated Parts
Challenge: Pallet rack uprights, beams, braces, and shelves have long lengths, holes, bends, reinforced edges, and shadow areas. Poor gun positioning can cause thin coating, edge buildup, and visible color difference. KETU Solution: Automatic gun arrangement, correct hanging angle, stable grounding, and manual touch-up options improve coating uniformity on long warehouse parts and complex rack components.- Better coverage on holes, bends, corners, and long edges.
- Reduced rework on rack beams, uprights, braces, and shelves.
- Stable film appearance across repeated high-volume parts.

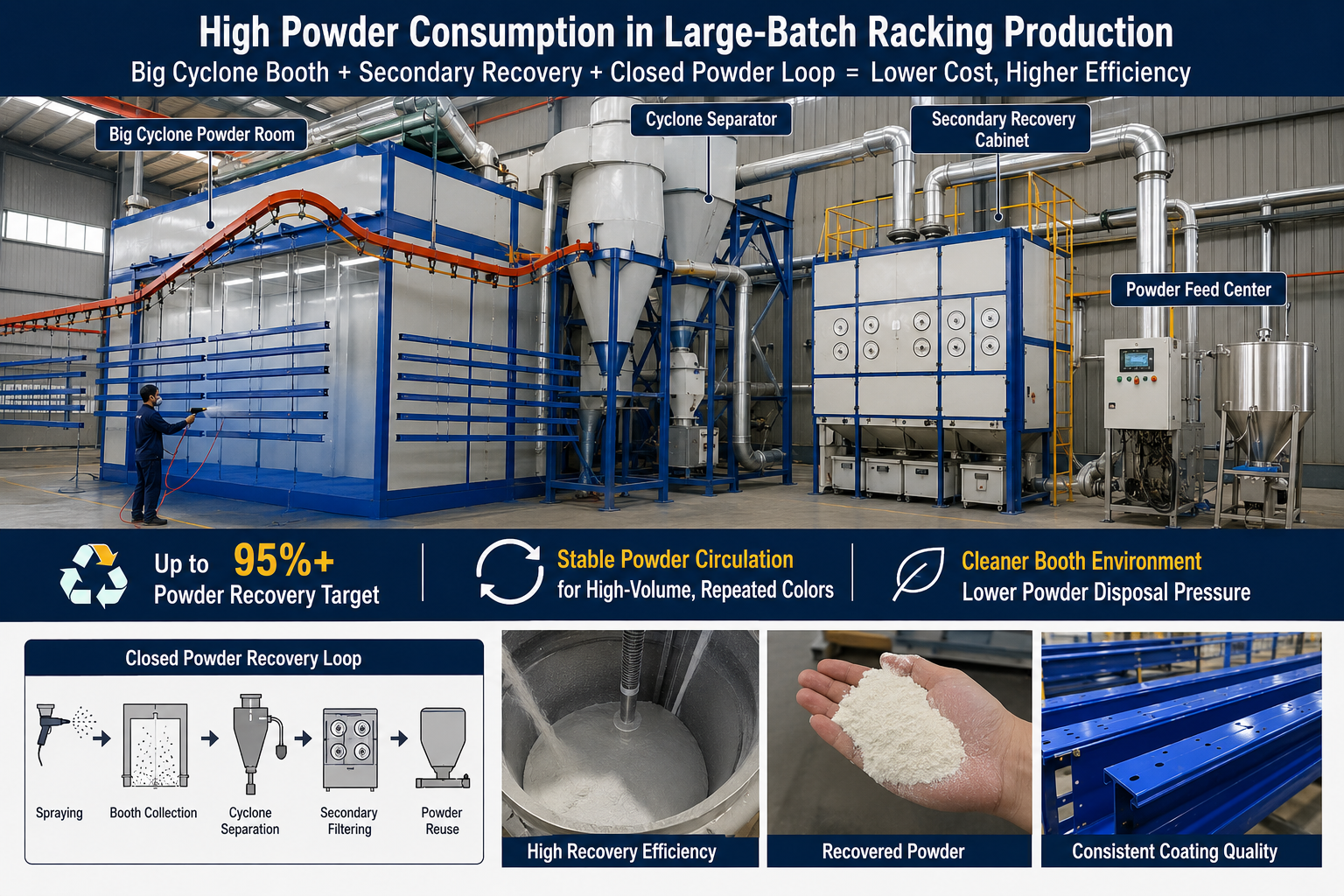

High Powder Consumption in Large-Batch Racking Production
Challenge: Warehouse racking factories often coat thousands of long beams and uprights in the same color. Overspray loss can become a major production cost. KETU Solution: Big cyclone powder room, secondary recycling cabinet, and closed powder recovery loop help recover reusable powder and reduce long-term material cost.- Up to 95%+ powder recovery target with optimized recovery design.
- Stable powder circulation for high-volume, repeated colors.
- Cleaner booth environment and lower powder disposal pressure.

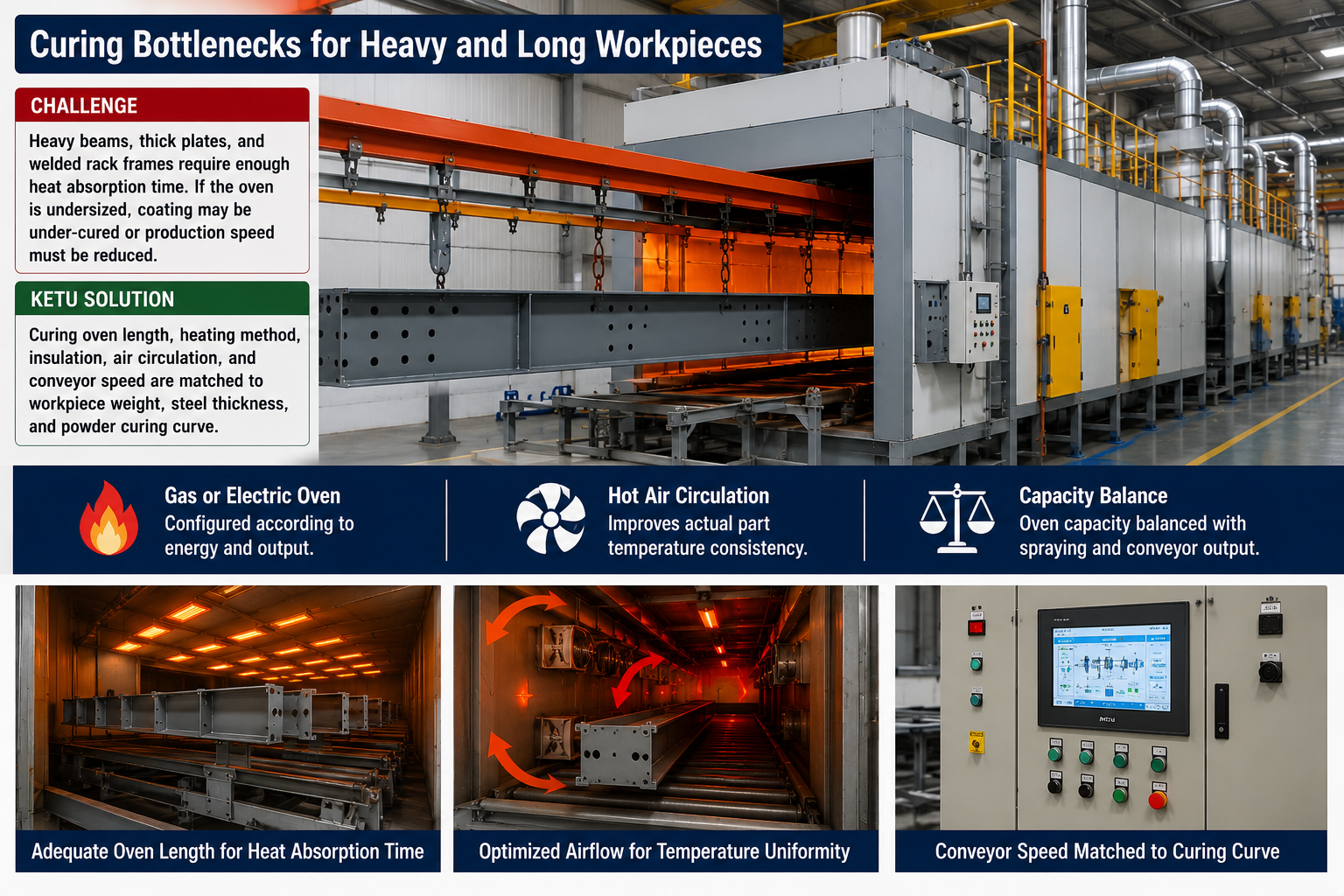

Curing Bottlenecks for Heavy and Long Workpieces
Challenge: Heavy beams, thick plates, and welded rack frames require enough heat absorption time. If the oven is undersized, coating may be under-cured or production speed must be reduced. KETU Solution: Curing oven length, heating method, insulation, air circulation, and conveyor speed are matched to workpiece weight, steel thickness, and powder curing curve.- Gas or electric oven configured according to energy and output.
- Hot air circulation improves actual part temperature consistency.
- Oven capacity balanced with spraying and conveyor output.
Durability Requirements for Warehouse Environments
Challenge: Warehouse equipment faces forklift contact, pallet friction, loading impact, humidity, dust, and long-term indoor or semi-outdoor use. KETU Solution: Proper pretreatment, powder coating thickness, stable curing, and corrosion-resistant powder selection help improve coating adhesion, hardness, abrasion resistance, and service life.- Stronger pretreatment for adhesion and corrosion resistance.
- Controlled coating thickness on high-wear areas.
- Durable finish for racking, carts, guardrails, and storage systems.
Complete System Lineup
Warehousing Powder Coating Line Equipment Modules
Each module is selected according to warehouse product length, weight, color quantity, output target, factory layout, and powder recovery requirement.

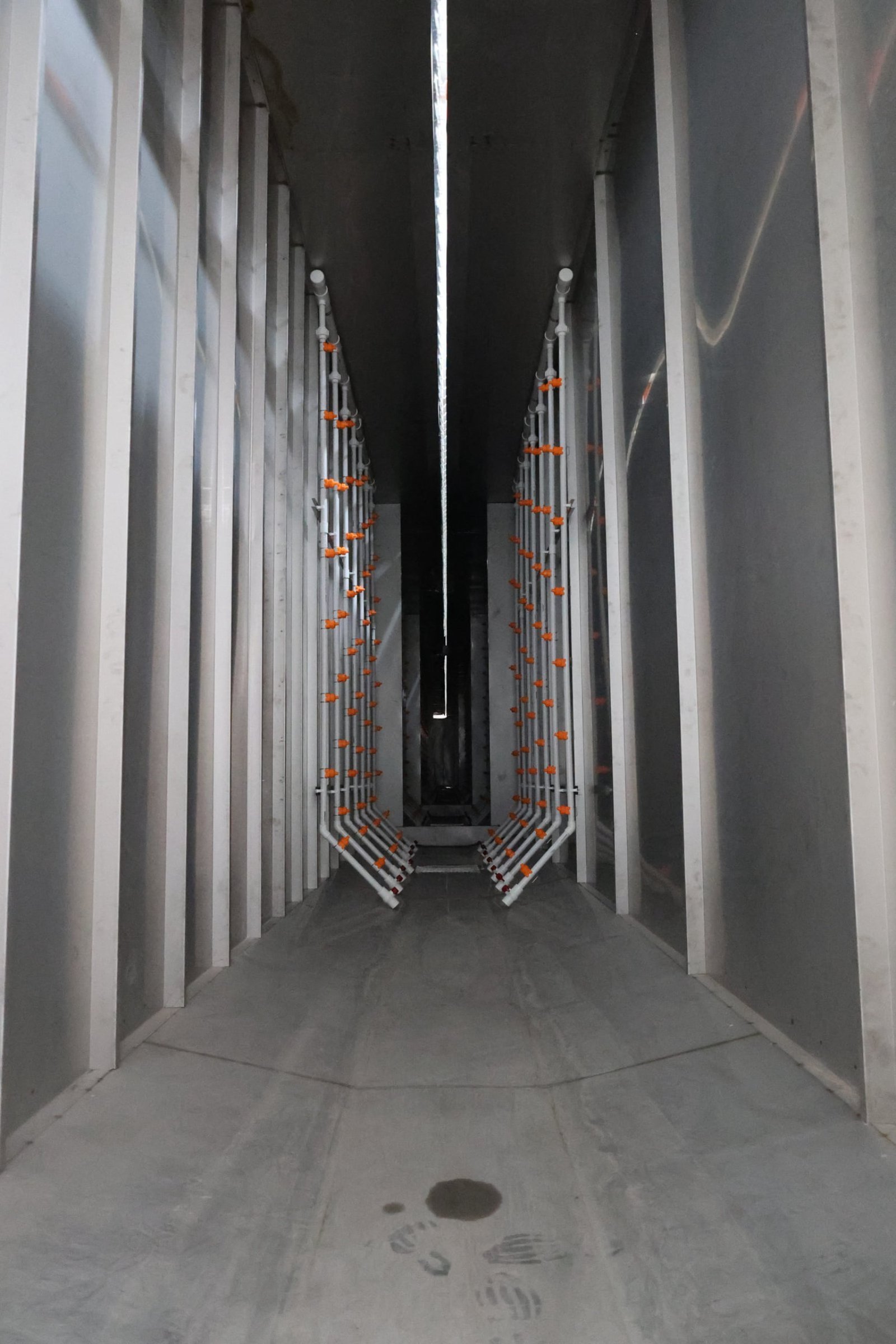

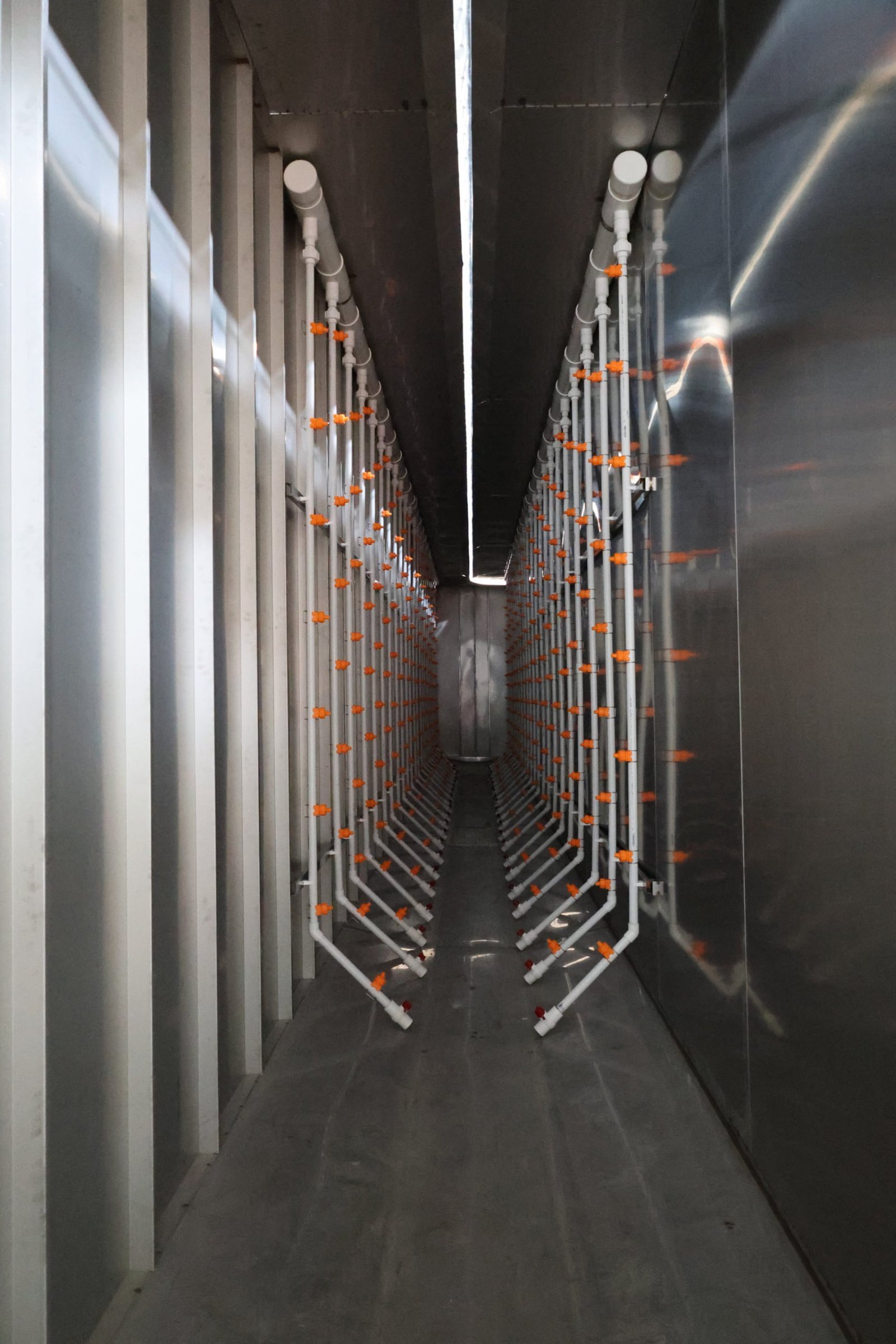

Pretreatment System
Degreasing, cleaning, phosphating, rinsing, and drying prepare steel rack components for strong adhesion and corrosion resistance. Use: beams, uprights, shelves, welded frames, guardrails.

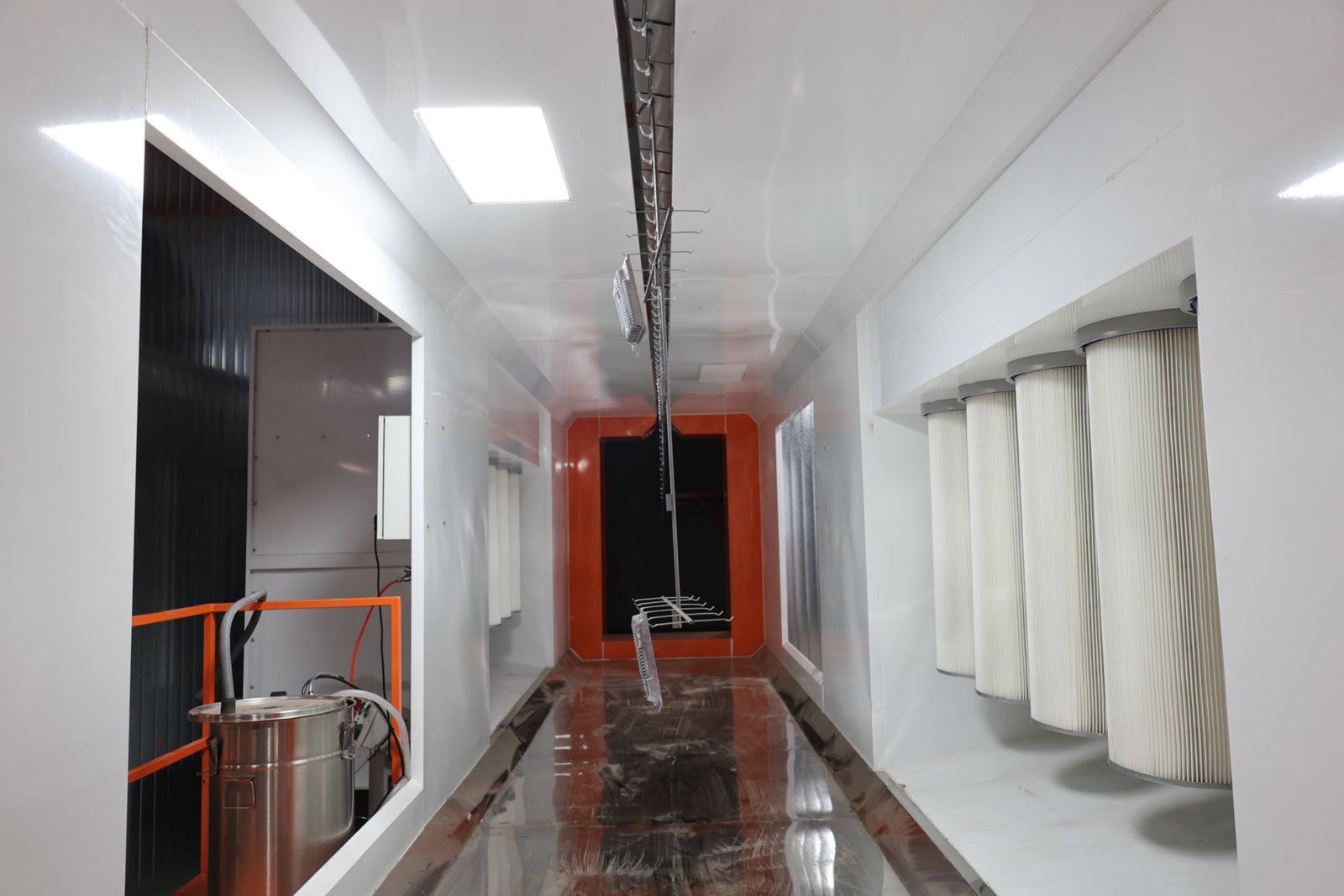

Automatic Powder Spraying Booth
Automatic spray guns coat repeated long parts efficiently. Manual touch-up can be added for complex shapes and difficult shadow areas. Use: pallet rack beams, uprights, frames, long profiles.

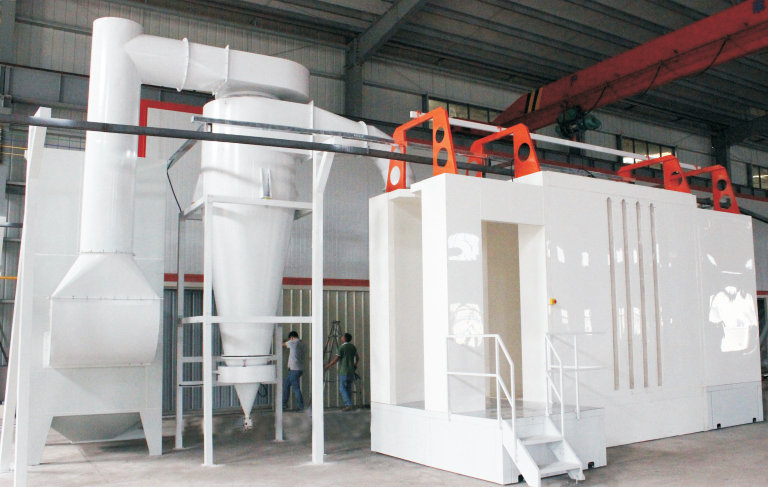

Big Cyclone Powder Room
High-capacity spray and powder recovery system for large-batch warehouse equipment production and repeated high-volume colors. Use: orange, blue, gray, black, and safety-color racking lines.

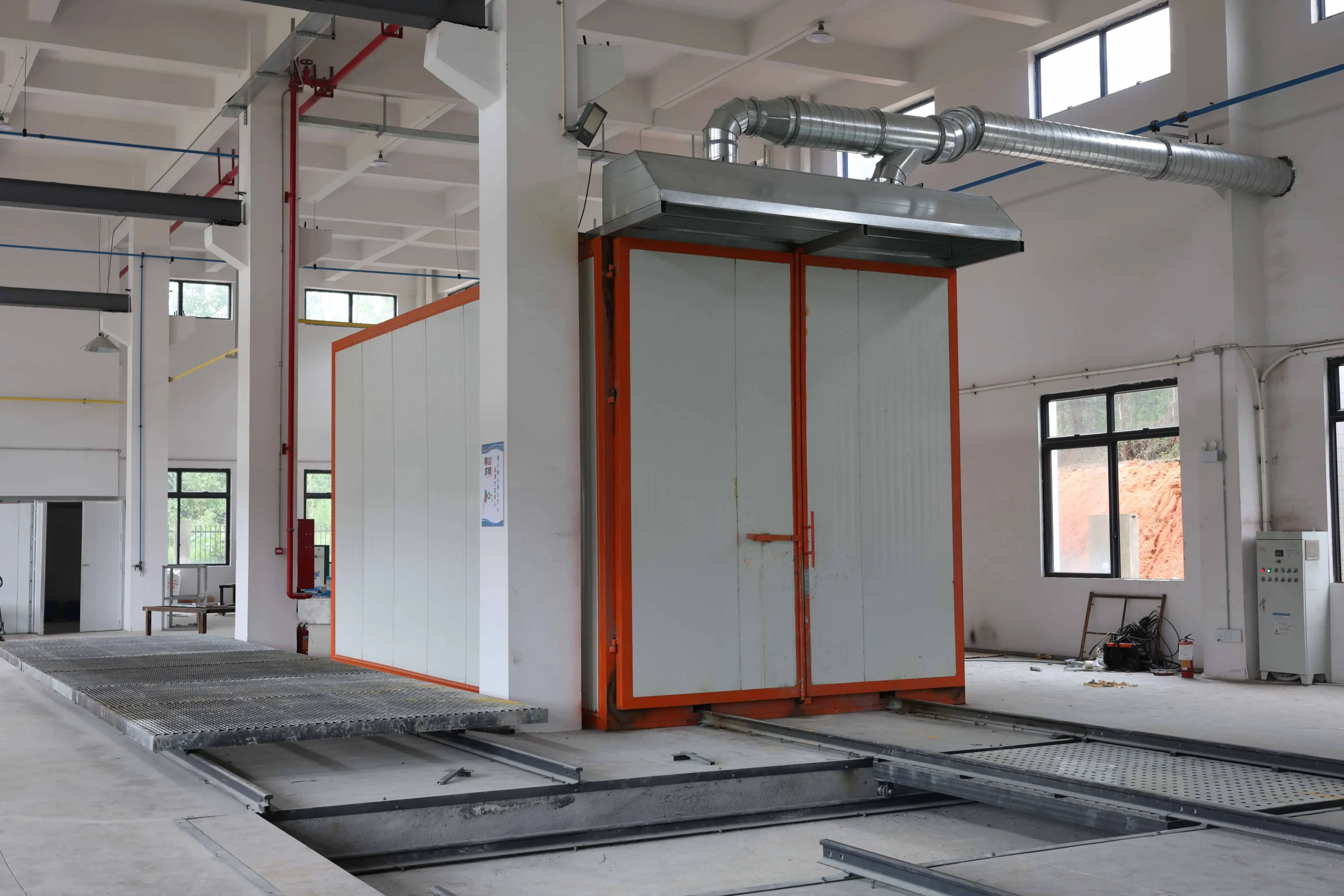

Powder Coating Curing Oven
Gas or electric curing oven selected according to workpiece load, steel thickness, energy condition, and production capacity. Use: full curing, coating adhesion, hardness, and durability.
Secondary Recycling Cabinet
Improves total powder recovery, reduces material waste, and supports cleaner production for high-output coating workshops. Use: sustainable production and lower powder consumption.

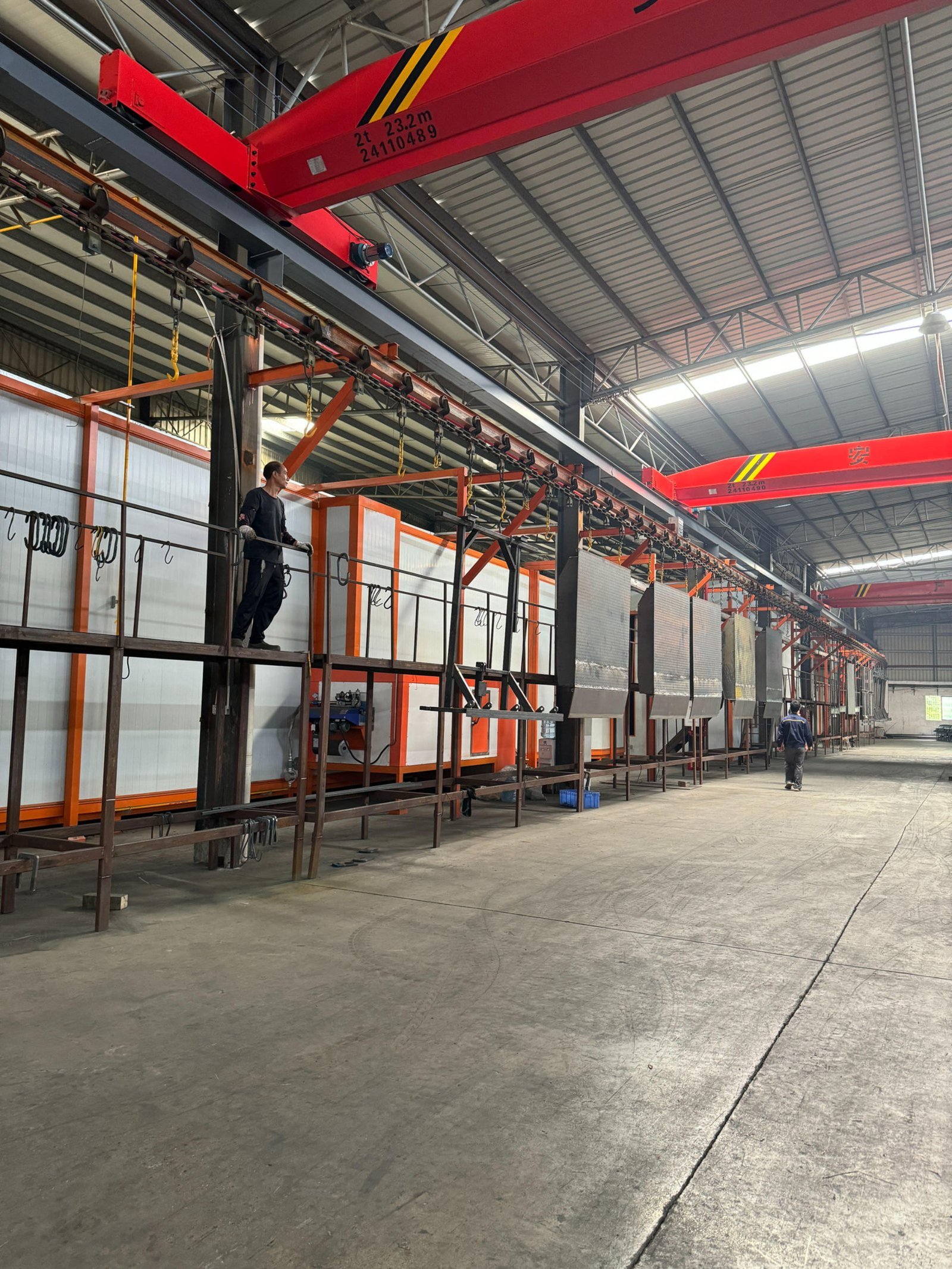

Heavy-Duty Conveyor and PLC Control
Conveyor, hanging fixtures, speed control, and PLC system connect pretreatment, spraying, curing, cooling, and unloading into one line. Use: long workpieces, heavy parts, and stable production rhythm.Reference Production Line

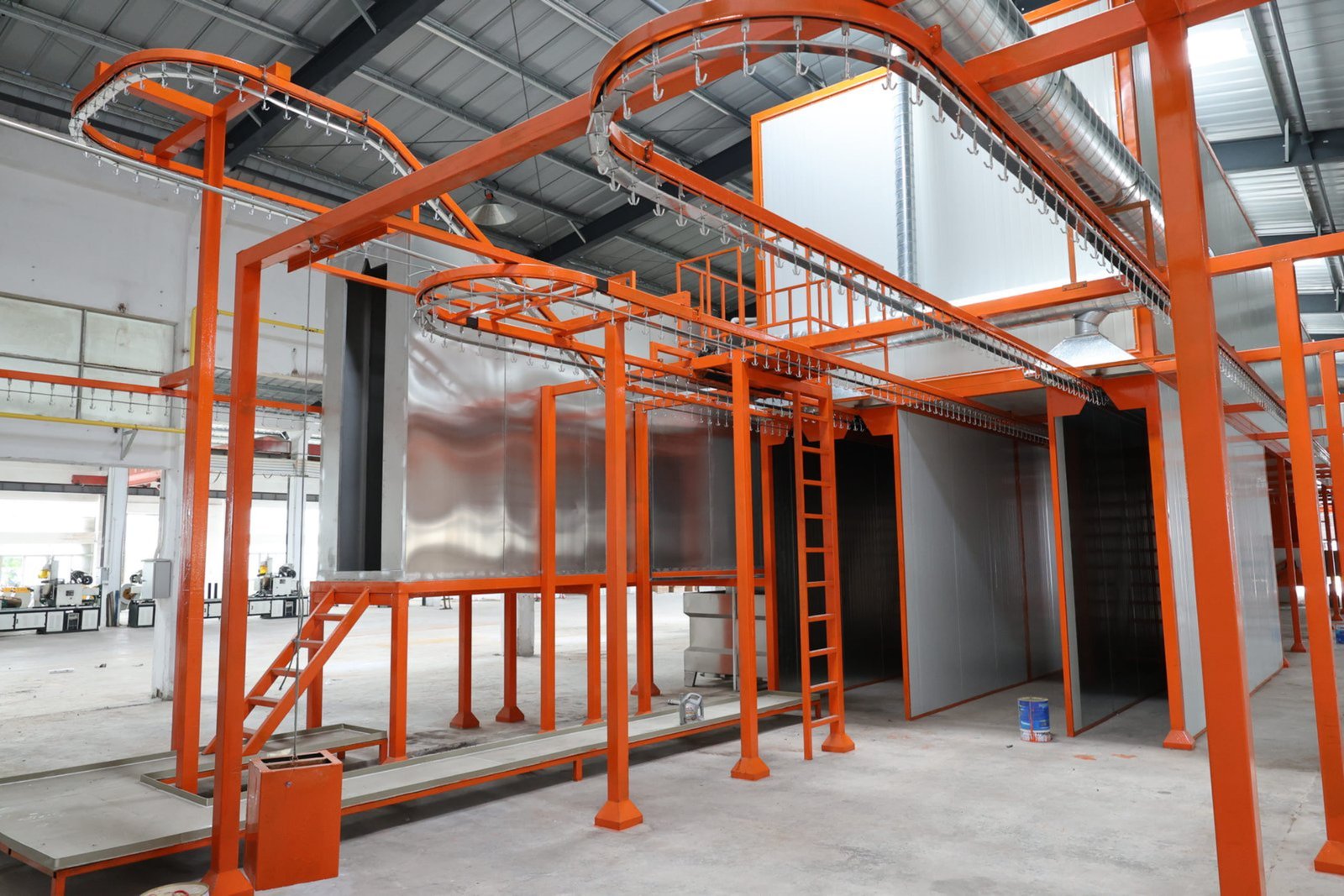

Warehouse Racking Powder Coating Line Reference
This reference layout is suitable for storage rack and logistics equipment manufacturers producing beams, uprights, braces, shelf panels, and safety accessories.Warehouse Rack Electrostatic Powder Coating Line
The reference line is designed for high-volume warehouse racking production. It includes loading, spray pretreatment, drying, automatic powder spraying, cyclone recovery, curing, cooling, and unloading. Heavy-duty conveyor, long-part hanging fixtures, and PLC control support stable production of repeated rack components.
Workpiece TypePallet rack beams, uprights, shelves, frames
Production ModeHigh-volume repeated parts + batch accessories
Pre-TreatmentSpray degreasing + phosphating + drying
Spray RoomAutomatic booth + manual touch-up option
Heating EnergyGas or electric based on site condition
Air SupplyHigh-power circulation fan
Recovery SystemBig cyclone + secondary recycling cabinet
Line ControlPLC touch screen + conveyor speed control
Process Flow
Complete Warehousing Equipment Powder Coating Process
From raw steel rack components to finished coated warehouse products, every stage affects final coating durability, corrosion resistance, color consistency, and output.Stage 1: Loading and Hanging
Rack beams, uprights, shelf panels, frames, and accessories are loaded onto hooks or fixtures. Correct hanging angle helps avoid part collision and improves spray access.Stage 2: Spray Pretreatment
Degreasing, cleaning, phosphating, and rinsing remove oil, dust, and surface contamination while improving coating adhesion and corrosion resistance.Stage 3: Drying Furnace
After pretreatment, parts enter the drying furnace. Complete moisture removal prevents pinholes, bubbles, poor adhesion, and surface defects during powder coating.Stage 4: Electrostatic Powder Spraying
Automatic spray guns apply charged powder to grounded warehouse parts. Manual touch-up can be added for holes, reinforced corners, mesh areas, and complex welded structures.Stage 5: Powder Recovery and Recycling
Overspray powder is captured by cyclone recovery and secondary recycling systems. Reusable powder is returned to the powder supply process after proper recovery control.Stage 6: Curing Furnace
The coated parts enter the curing oven. Powder melts, levels, cross-links, and forms a durable coating film under the required temperature and holding time.Stage 7: Cooling, Unloading, and Inspection
After curing, parts are cooled, unloaded, inspected for coating coverage, gloss, color, adhesion, and surface defects, then moved to assembly or packing.Technology Comparison
Powder Coating vs. Traditional Painting for Warehouse Equipment
Warehouse equipment manufacturers choose powder coating because it supports durability, powder recovery, consistent color, and large-batch production efficiency.| Performance Factor | Traditional Liquid Painting | KETU Electrostatic Powder Coating |
|---|---|---|
| Surface Durability | Film quality depends on drying, solvent evaporation, and application control | Durable cured film with good adhesion, hardness, and abrasion resistance |
| Long Part Coverage | Runs, sagging, and uneven thickness can occur on beams and profiles | Electrostatic attraction supports uniform coating on long rack parts and edges |
| Material Utilization | Overspray and solvent waste are difficult to reuse | Overspray powder can be recovered and reused through cyclone and secondary recycling systems |
| Environmental Impact | VOC, odor, and solvent handling may require additional treatment | No solvent evaporation during application and cleaner powder recovery process |
| Production Rhythm | Drying and handling time can slow output | Automatic conveyor, spraying, curing, and cooling support continuous production |
| Color Management | Liquid cleaning and drying can complicate color changes | Booth cleaning and powder path planning support warehouse color-coded SKUs |
Complete Buying Guide
How to Choose a Warehousing Industry Powder Coating Line
Use this guide before requesting quotation. A clear requirement sheet helps design a more accurate warehouse equipment coating line and avoids hidden cost during installation.01
Confirm Product Geometry
List maximum beam length, upright height, shelf panel size, mesh structure, holes, welded areas, and heavy part weight.02
Define Output and Line Rhythm
Conveyor speed, booth quantity, oven length, and loading spacing must match real production capacity, not only theoretical output.
03
Choose Pretreatment Strength
Degreasing and phosphating must match steel condition, corrosion target, indoor or semi-outdoor use, and final customer requirement.
04
Select Spray Booth and Recovery
Choose backpack booth, automatic booth, big cyclone room, or hybrid layout according to part size, color plan, and powder recovery target.
05
Match Curing Oven Capacity
Heavy steel parts need enough heat absorption time. Oven length, heating power, air circulation, and conveyor speed must match powder curing curve.
06
Plan Fixtures and Conveyor
Warehouse parts are often long and heavy. Hook design, pitch distance, load capacity, turning radius, and anti-swing control should be evaluated.
07
Evaluate Environmental Requirements
Check powder recovery, exhaust, pretreatment wastewater, noise, gas safety, fire control, and local compliance before confirming layout.
08
Compare Total Cost
Compare purchase cost together with powder saving, energy consumption, labor reduction, reduced rework, maintenance, and future expansion.
Warehousing Case Scenarios
Warehouse Equipment Manufacturers That Benefit From This Solution
These typical scenarios show how different warehouse equipment factories can configure the coating line according to product type and production rhythm.

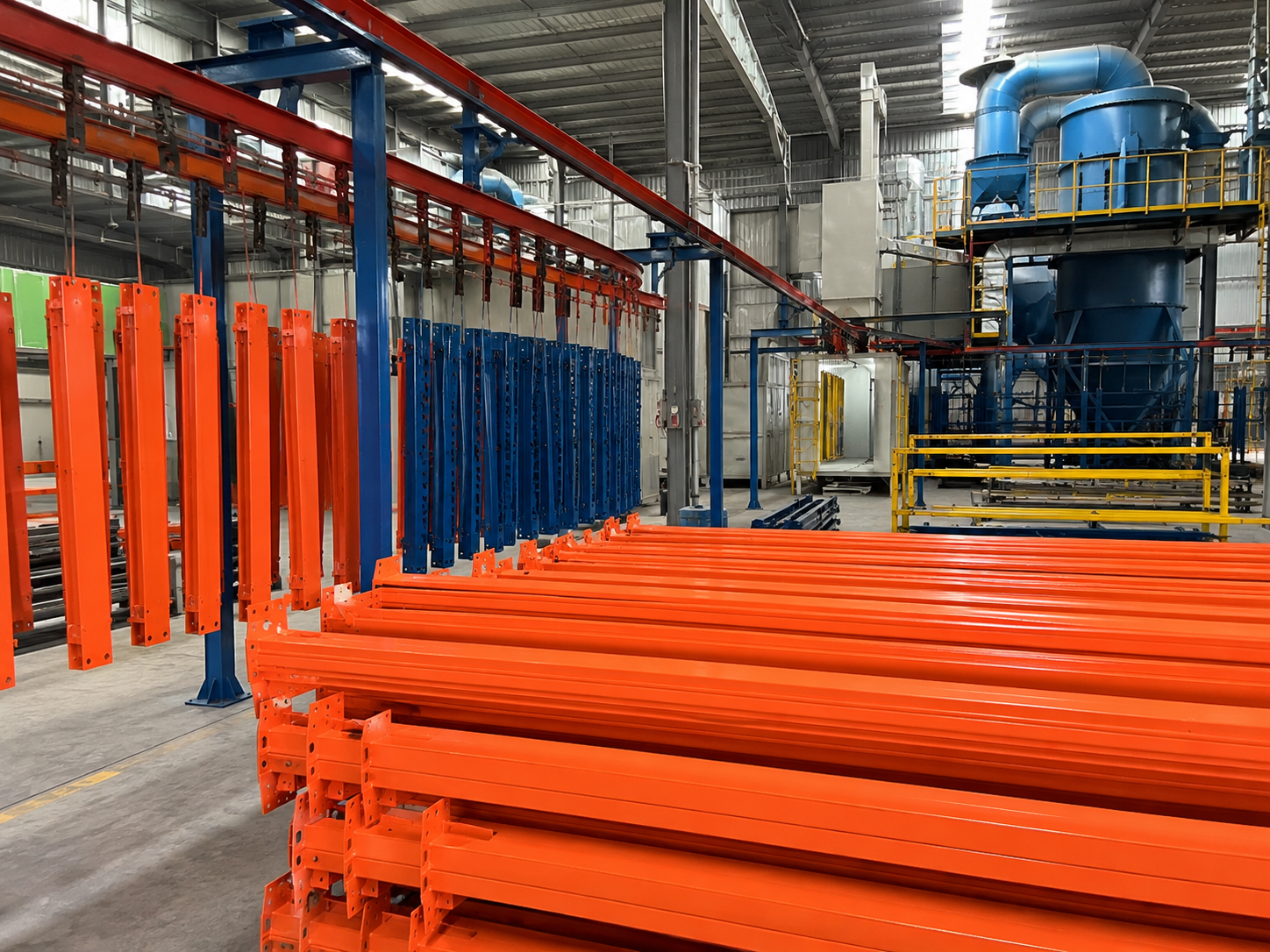

Pallet Racking Manufacturer
Need: stable orange, blue, and safety-color coating for beams, uprights, braces, and base plates with strong durability. Recommended: spray pretreatment + automatic booth + big cyclone recovery + gas curing oven.
Storage Shelving Supplier
Need: clean appearance, scratch resistance, and consistent coating on shelf panels, frames, brackets, and accessories. Recommended: automatic spray booth + flat panel hanging plan + controlled curing profile.
Logistics Equipment Factory
Need: strong coating around tubular frames, mesh cages, welded corners, and high-impact handling areas. Recommended: automatic booth + manual touch-up + secondary recycling + durable curing oven.FAQ and Troubleshooting
Warehousing Powder Coating Questions Answered
Common questions from warehouse equipment manufacturers about powder coating, pretreatment, recovery, curing, color control, and line selection.Why should warehouse racking manufacturers choose powder coating?
Powder coating provides strong adhesion, good appearance, high material utilization, and durable cured film for warehouse rack beams, uprights, shelves, carts, cages, and safety products. It also supports powder recovery and cleaner production compared with solvent-based liquid coating.
Can one line coat beams, uprights, shelves, carts, and guardrails?
Yes, but the line must be designed around the longest part, heaviest part, hanging method, loading pitch, spray booth access, and oven capacity. Mixed warehousing products often require flexible fixtures and optional manual touch-up areas.
What coating thickness is suitable for warehouse equipment?
A common powder coating thickness range for warehouse equipment is about 60–120 microns, depending on powder type, corrosion requirement, surface appearance, customer standard, and part usage environment.
How does the system reduce powder waste?
Cyclone recovery, filter recovery, and secondary recycling cabinets capture overspray powder. Recovered powder can be reused when color purity, powder quality, and contamination control are properly managed.
What is the key to strong adhesion on rack beams and uprights?
Strong adhesion depends on degreasing, cleaning, phosphating, drying, grounding, powder quality, proper coating thickness, and complete curing. Pretreatment and actual workpiece temperature are especially important for heavy steel parts.
Why does coating become thin around holes and edges?
Thin coating around holes and edges can result from poor gun angle, unstable grounding, excessive line speed, weak electrostatic attraction, or insufficient manual touch-up. The spray gun layout and hanging orientation should be optimized.
Gas oven or electric oven: which is better for warehouse racking?
Gas ovens are often suitable for high-output continuous racking lines when gas cost is favorable. Electric ovens are easier for smaller lines or sites without stable gas supply. The best choice depends on energy price, oven size, part load, and safety requirements.
What information should I send for a custom warehouse coating line quote?
Send workpiece photos or drawings, maximum part length and weight, production output, number of colors, coating thickness, pretreatment requirement, factory layout, energy source, automation level, and local compliance requirements.
Need a Warehousing Industry Powder Coating Line Layout?
Send your rack beam drawings, upright size, shelf panel details, output target, color quantity, factory layout, pretreatment requirement, curing energy preference, and automation plan. We can prepare a suitable configuration for your warehouse equipment coating production.
